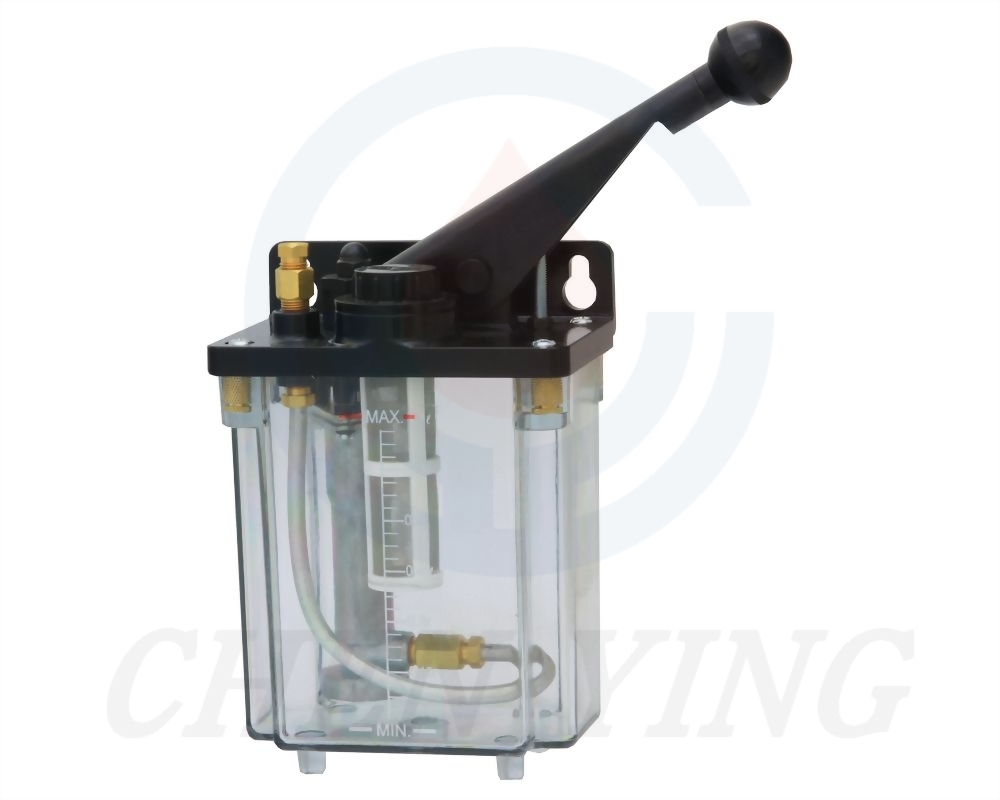

• CKE-8-L-0

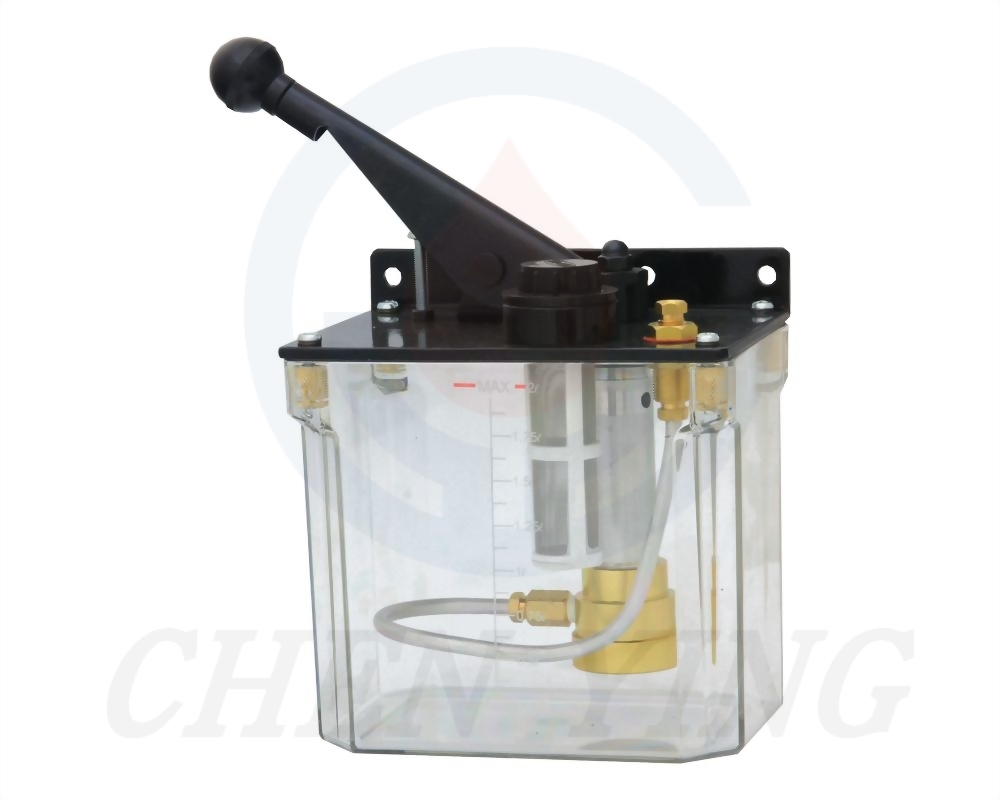

  • CKE-20-R-0

CKE Resistance Type Oil Manual Lubricator

  • Proportional Oil Quantity
  • Manual Lubrication

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Outlet Type
*Discharge Bore
Remarks
  1. The compact size of CKE makes the installation easy.
  2. CKE discharges oil whenever its handle is pushed down.
  3. The outlet of CKE can be on either the right side or the left side of the handle.
  4. CKE has a reverse stopper that prevents the back-flow of oil.
  5. CKE can work with machines that do not require oil feeding at a particular time.

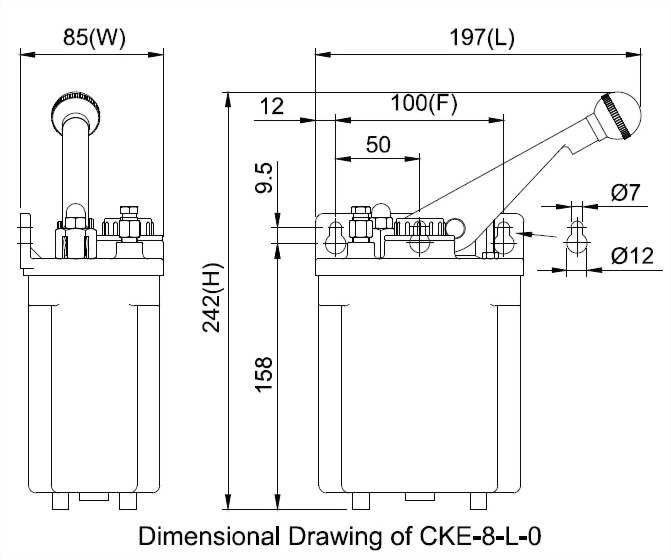

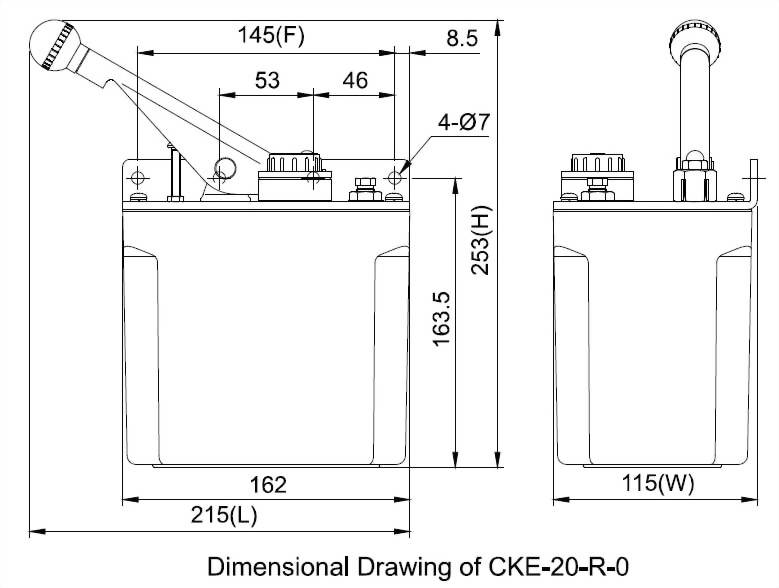

cke-20 Dimensional Drawingcke-8D imensional Drawing


◆ Technical Data & Dimensional Data

Model Tank Capacity
Fixed Hole Distance (mm)
Length (mm)
Width (mm)
Height (mm)
Outlet Type Max. Discharge Volume Max. Operating Pressure Suitable Viscosity Discharge Bore
N.W. (kg)
CKE-8 1L 100 197 85 242 Left 8cc/stroke
5kgf/c㎡
Oil
32-68 cSt@40℃
Ø4
Ø6
1.33
193 85 250 Right
CKE-20 2L 145 215 115 253
Left
Right
1.84

◆ Order Code

Model Tank Capacity Outlet Type Discharge Bore
CKE 20 R 0
8 1L L Left Outlet 0 Ø4
20 2L R Right Outlet 1 Ø6
