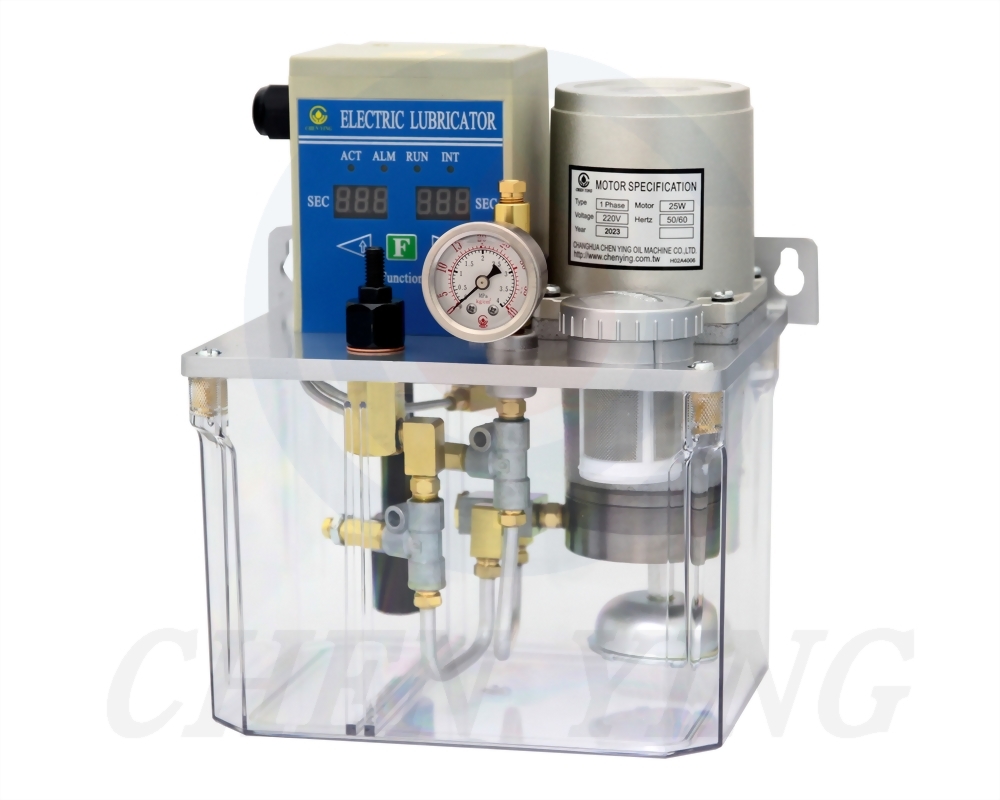

COA Oil-Air Type Electric Lubricator

  • Metered Qil Quantity
  • Automatic Lubrication Controlled by Timer

※ Please select the specifications you need.：

*Model
*Tank Capacity (Material)
*ACTx INT
*Voltage
*Motor Power
*Discharge Bore
Special Request
Remarks
  1. COA has a timer that controls its operation and interval time. The control box has a built-in buzzer that sends an alarm when the oil level is low. The control box also has four indicators, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
  2. COA has to work with CO, OA, or OC type oil-air volume distributors to deliver the metered quantity of oil-air mixture to the lubrication points.
  3. COA can memorize the set value of operation time and interval time.
  4. COA has a pressure gauge that enables the user to check the operating pressure easily.
  5. COA has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
  6. COA has a pressure-regulating valve that enables the user to adjust the operating pressure.
  7. COA has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
  8. COA has an 8kgf/ cm2 NC contact socket pressure switch that detects the operating pressure.
  9. The gear pump of COA is made of special aluminum alloy and assembled with the induction motor to provide stable output pressure, low operating noise, and long service life. It meets the requirements of most large machines.

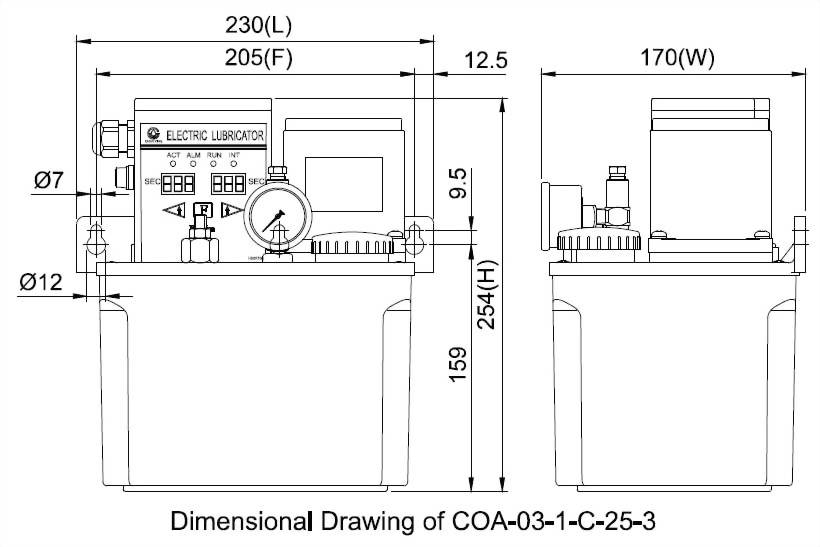

coa Dimensional Drawing

◆ Dimensional Data

Motor Power Tank Capacity Tank Material Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
25W 3L Resin 230 170 254 205 5.10
4L Resin 277 162 266 250 5.50
4L Aluminum 297 170 264 95x280 6.41
8L Iron 355 201 285 95x338 9.54
60W 4L Aluminum 297 170 311 95x280 8.15
8L Iron 355 201 331 95x338 10.55

◆ Technical Data

Operation Time 1-999 sec
Interval Time 1-999 sec, 1-999 min
Motor Power 25W 60W
Voltage 110V 220V 110V 220V
Ampere 0.6A 0.3A 1.2A 0.6A
Max. Discharge Volume 250cc/min 500cc/min
Max. Operating Pressure 20kgf/c㎡ 30kgf/c㎡
Hertz 50/60Hz Compatible
Discharge Bore Ø4 , Ø6
Float Switch NC Contact
Pressure Switch NC Contact
Suitable Viscosity Oil, 32-68 cSt@40oC

◆ Wiring Diagram

Abnormal Output Ground Power
NO(A) NC(B) COM GND(P.E) POWER
⊕ ⊕ ⊕ ⊕ ⊕ ⊕

◆ Order Code

Model Tank Capacity(Material) ACT x INT Voltage Motor Power Discharge Bore Special Request
COA 03 1 C 25 3 ※
03 3L (Resin) 1 sec x sec A 110V 25 25W 0 Ø4 B Add a Larger Buzzer
04 4L (Resin) 2 sec x min C 220V 60 60W (Available for 4L metal tank and above only) 1 Ø6
05 4L (Alum.) 90 90W (Available for 4L metal tank and above only) 2 Ø4 W/Pressure Gauge
08 8L (Iron) 3 Ø6 W/Pressure Gauge
