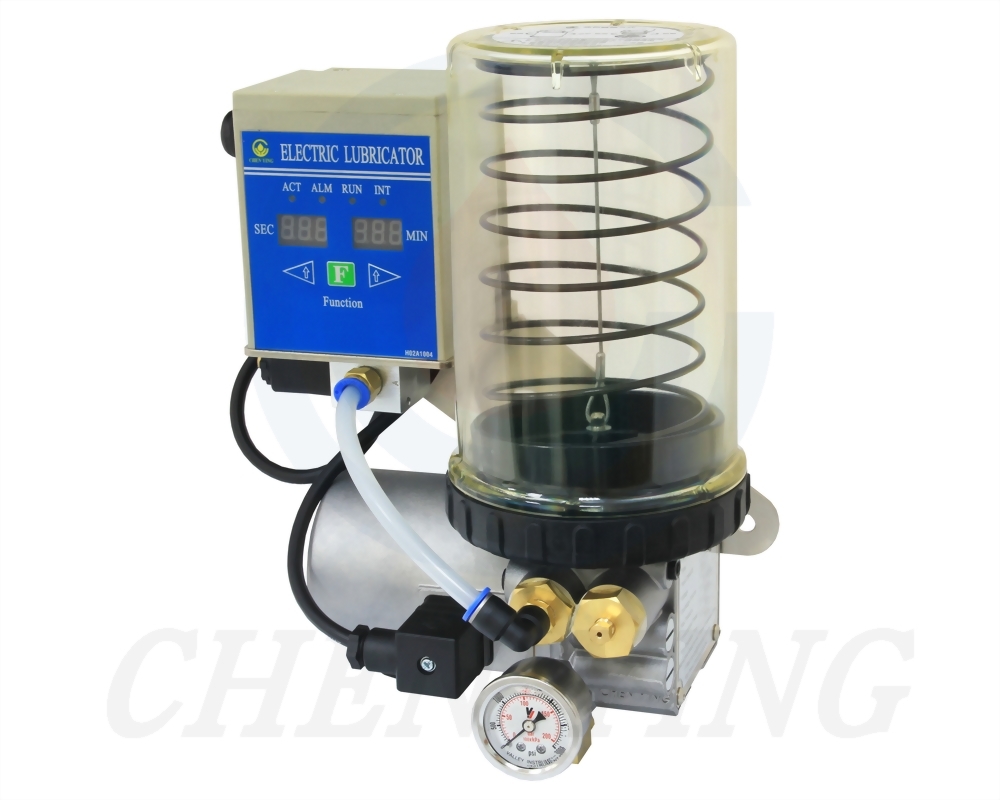

KGNBP Pressure-Relief Grease Pneumatic Lubricator
- Metered Grease Quantity
-
Automatic Lubrication Controlled by Timer
-
Grease Cartridge
- The operation and interval time of KGNB and KGNBP are controlled by PLC. KGNB and KGNBP require a 4.5-8kgf/cm2 pneumatic pressure supply for the pressure-relief function. Electric type is also available on request.
- KGNB and KGNBP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
- There are four indicators on the control box, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
- KGNB and KGNBP have pressure gauges that enable the users to check the operating pressure easily.
- KGNB and KGNBP have feed-grease buttons (F button), which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
- KGNB and KGNBP have thermal controls that will shut down the motor for about 5 minutes when the motor is overheated.
- A 60kgf/cm2 socket pressure switch can be added to KGNB and KGNBP on request to detect the operating pressure automatically.
- A magnetic level switch can be added to KGNB and KGNBP on request to detect the grease level automatically.
- The lubricator, which adds a pressure switch or a magnetic level switch, has abnormal pressure or low grease level; the built-in buzzer of the control box will send an alarm sound.
- For KGNB, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
-

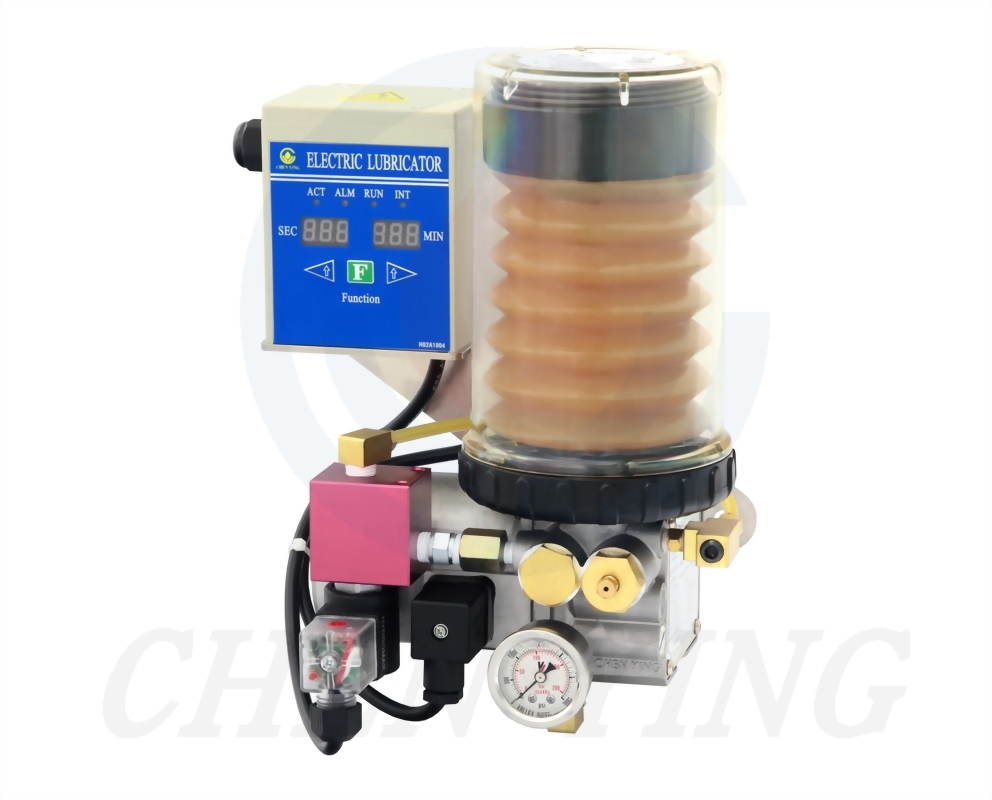

KGNBP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGNBP-07 with a new grease cartridge. Standard KGNBP-07 does not include a grease cartridge but is available upon request.
◆ Dimensional Data
Model
Tank Capacity
Type
Length (mm)
Width (mm)
Height (mm)
Fixed Hole
Distance (mm)
N.W. (kg)
KGNBP-07
700cc
Grease Cartridge
Pneumatic
241
163
302
104
5.00
Electirc
242
160
302
5.42
◆ Technical Data
Operation
Time
1-999 sec.
Interval Time
1-999 sec., 1-999 min.
Voltage
AC110V
AC220V
Motor Power
60W
80W
Ampere
1.8A
1.0A
Hertz
50/60Hz Compatible
Max.
Discharge Volume
30cc/min
Max. Operating Pressure
100kgf/c㎡
Discharge Bore
Ø6, Ø8, PT1/8
Magnetic Level Switch
Optional (NC Contact)
Pressure Switch
Optional (NC Contact)
Suitable Viscosity
Grease, NLGI 000-0
◆ Wiring Diagram
Abnormal Output
Ground
Power
NO(A)
NC(B)
COM
GND(P.E)
POWER
⊕
⊕
⊕
⊕
⊕
⊕
◆ Order Code
Model
Effective Capacity
Time
Setting
Voltage
Discharge Bore
Pressure-Relief
Type
Special Request
KGNBP
07
2
C
5
0
※
07
700cc Grease
Cartridge
1
sec x sec
A
AC110V
1
Ø6
0
Pneumatic Type
PC
Add a NC Contact
Pressure Switch
2
sec x min
C
AC220V
3
Ø6 W/Pressure Gauge
1
Electric Type
RC
Add a NC Contact
Magnetic Level Switch
4
Ø8
5
Ø8 W/Pressure Gauge
6
PT1/8
7
PT1/8 W/Pressure
Gauge
※Please refer to the 700cc Grease Cartridge catalog if you need to purchase one.
◆ The dimensional and technical data of 700cc Grease Cartridge is as described below
◆ Order Code
| Order Code | Grease Type | Grease Viscosity | Minimum Order Quantity Requirement |
| I01D0021 | Mobilux EP023 | NLGI 000 | -- |
| I01D0012 | Mobil EP0 | NLGI 0 | -- |
| I01D0013 | Mobil EP1 | NLGI 1 | 100 |
| I01D0029 | Idemitsu Polylex UMF | NLGI 000 | 6 |
| I01D0030 | Idemitsu Eponex IM | NLGI 1 | 6 |
◆ Instruction of Replacing 700cc Grease Cartridge
1
Hold the grease cartridge cover tightly and turn it anticlockwise
to disassemble it from the grease cartridge cover base .
2
Take the grease cartridge cover out and put it aside.
3
Rotate the used grease
cartridge anticlockwise to remove it from the grease cartridge cover base and dispose of it
properly.
4
Before replacing a new grease cartridge, lightly squeeze out a
little grease in the grease cartridge to prevent air from entering the
lubricator.
5
Assemble the new grease cartridge to the grease cartridge cover base by turning it clockwise.
6
Assemble the grease cartridge cover back to the grease cartridge cover base.
7
Rotate the grease cartridge cover clockwise to assemble it with the grease cartridge cover base to complete the replacement of the grease cartridge.
