• OT-1-0

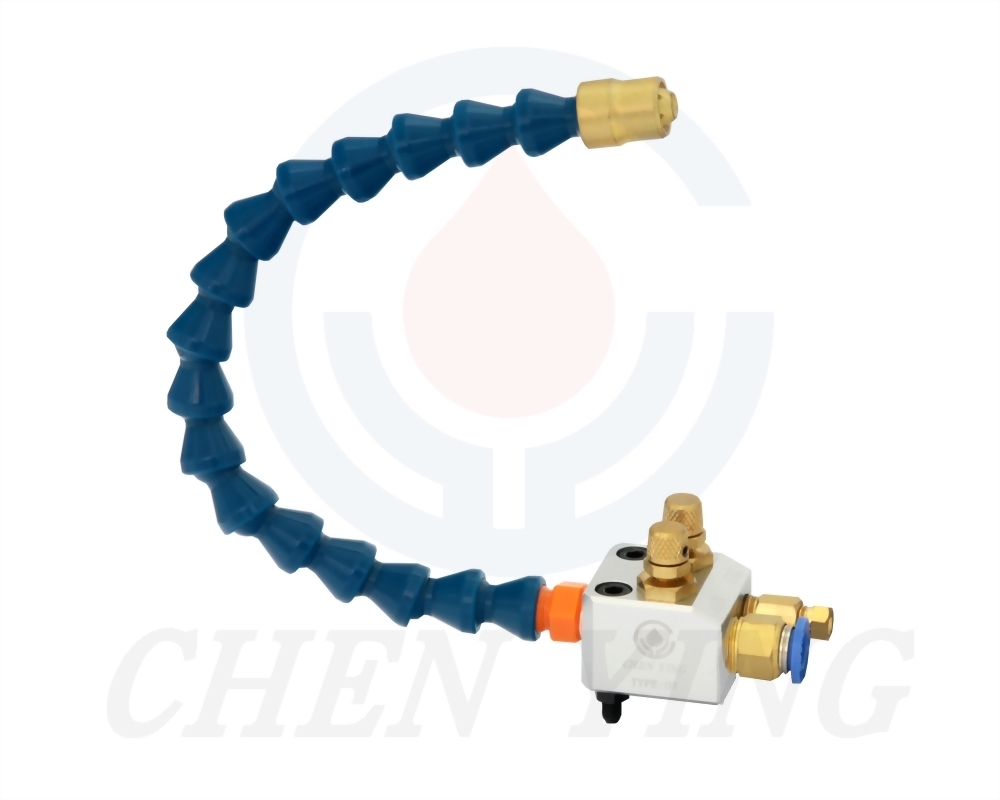

OT Type Spray Gun (Air and Oil / Grease Volume Adjustable)

※ Please select the specifications you need.：

*Model
*Air Inlet Bore
*Oil/Grease Inlet Bore
Special Request
Remarks
  1. OT spray gun is suitable for working with resistance oil types, POM oil pneumatic types, and POM-A/POM-AP grease pneumatic types of lubricators.
  2. OT spray gun has one air inlet and one oil or grease inlet. The oil-mist or grease-mist mixture is superior without dripping.
  3. The volume of air and oil or grease is adjustable upon the need. Recommend using air pressure supply between 3.5 to 5kgf/cm2.
  4. OT spray gun can add a magnetic base that can attach to any magnetic metal surface and relocate quickly.
  5. The standard length of the adjustable coolant hose is 16 segments, but the number of segments can be customized upon request.
  6.  The net weight of OT spray gun is 184g per set.

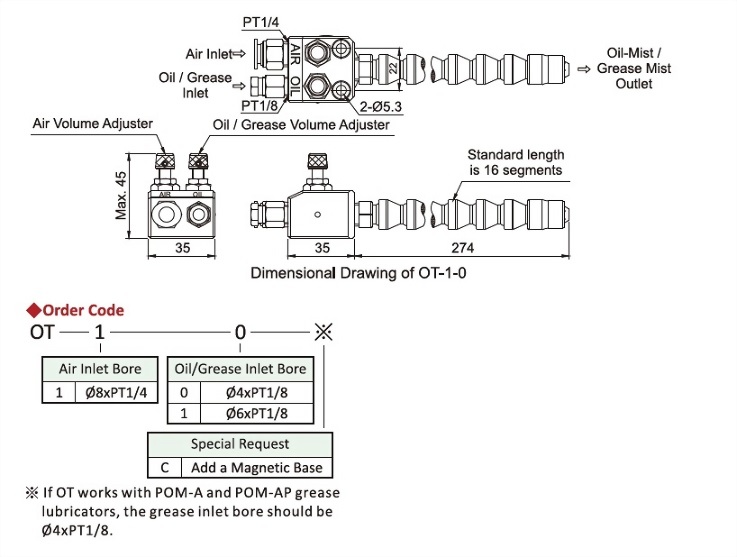

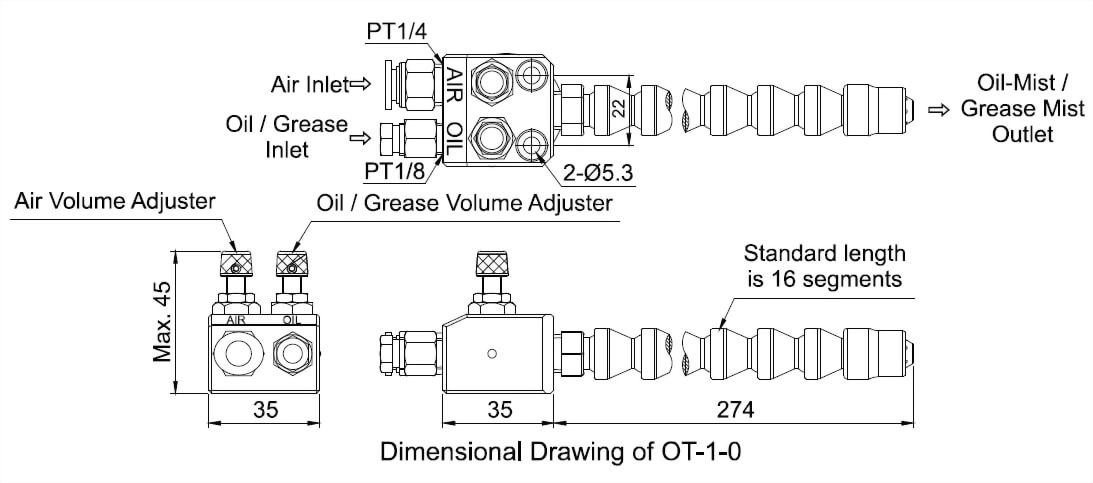

OT Type,Dimensional Drawing,Order Code
