POM-A Minimum Quantity Grease Pneumatic Lubricator

Metered Grease Quantity
Pneumatic Lubrication
Adjustable Grease Quantity
Minimum Quantity Oil Lubricators Available for Selection

※ Please select the specifications you need.：
*Model
*Tank Capacity
*Outlet Number
*Method of Actuation
*Discharge Bore
Special Request
Remarks

Q'ty :

The discharge volume of POM-A and POM-AP is precise and can be adjusted from 0.01cc to 0.08cc per stroke.
POM-A and POM-AP can be actuated either by a frequency generator or a solenoid valve.
● Pneumatic pressure supply drives the frequency generator, and the user can adjust each stroke frequency upon the demand. The service life is ten million cycles.
● The input voltage powers the solenoid valve, and the PLC can precisely control its stroke frequency. The solenoid valve works as the ON/OFF switch of the pneumatic pressure supply. The service life is two million cycles.
POM-A and POM-AP require 4-8kgf/cm² pneumatic pressure supply to operate.
The standard POM-A and POM-AP have one outlet, which can be increased to two on request. Do not plug any outlet of POM-A and POM-AP.
POM-A and POM-AP have grease volume adjusters for adjusting the discharge volume per stroke. It is fixed by the grease volume screw to prevent its setting from being changed easily.
Each outlet of POM-A can add a reed switch for monitoring every stroke.
A magnetic level switch can be added to POM-A and POM-AP on request to detect the grease level automatically.

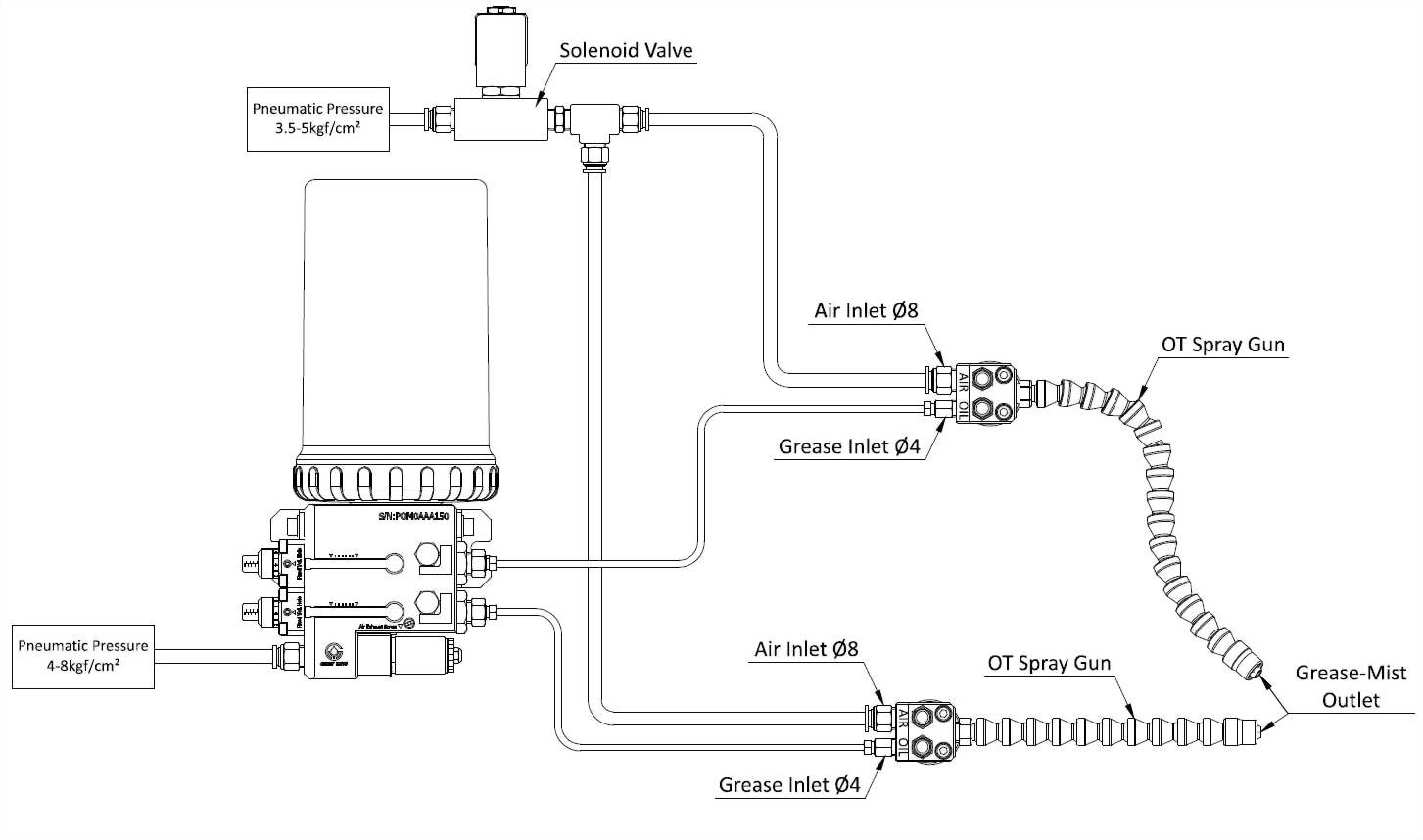

An OT spray gun with the φ4 inlet bore can work with either POM-A or POM-AP to have the grease mist effect.
Please refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
POM-AP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace POM-AP-07 with a new grease cartridge. Standard POM-AP-07 does not include a grease cartridge but is available upon request.

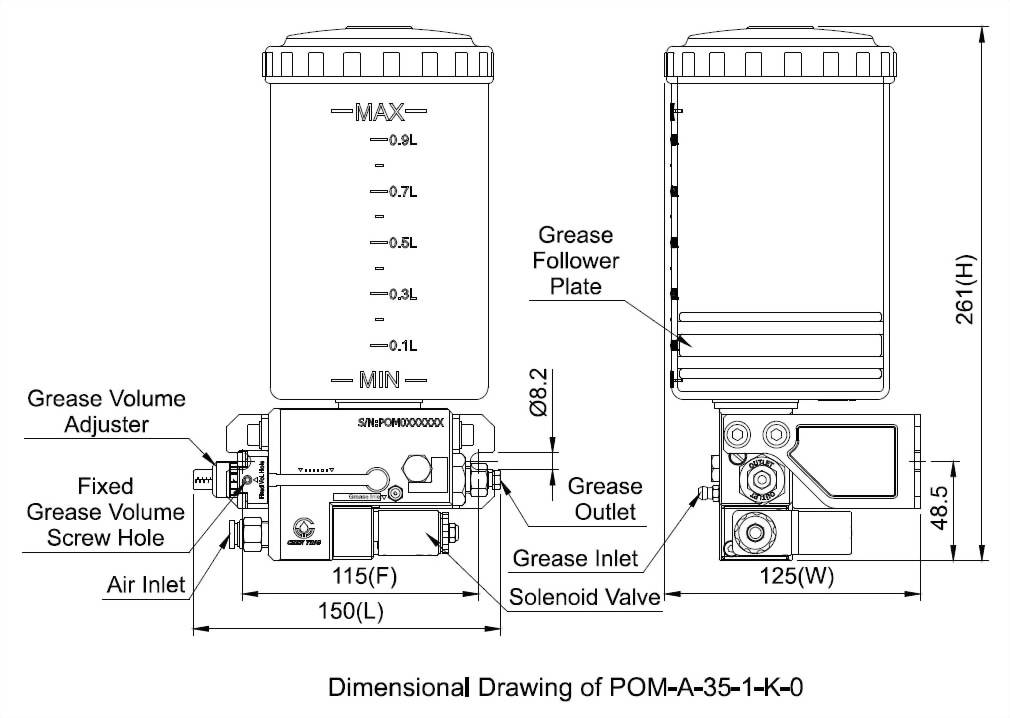

◆ Dimensional Data

Model	Effective Capacity	Fixed Hole Distance (mm)	Length (mm)	Width (mm)	Height (mm)	Outlet Number	N.W. (kg)
POM-A-35	1000cc	115	150	125	261	1	1.67
					290	2	2.08
POM-A-50	2000cc	115	154	135	346	1	2.02
					374	2	2.43

◆ Technical Data

Method of Actuation	Solenoid Valve			Frequency Generator
Voltage	AC110V	AC220V	DC24V	--
Ampere	0.1A	0.1A	0.2A	--
Pneumatic Pressure	4-8kgf/cm²
Discharge Volume	0.01cc-0.08cc/stroke (Adjustable)
Air Inlet Bore	Ø8
Discharge Bore	Ø4
Magnetic Level Switch	Optional (NC or NO Contact)
Reed Switch	Optional (NC or NO Contact)
Suitable Viscosity	Grease, NLGI 000-0

◆ Order Code

Model	Tank Capacity		Outlet Number		Method of Actuation		Discharge Bore		Special Request
POM-A	35		1		1		0		※
	35	1000cc	1	1 Outlet	1	Frequency Generator	0	Ø4	RC	Add a NC Contact Magnetic Level Switch
	50	2000cc	2	2 Outlets	A	Solenoid Valve, AC110V			RO	Add a NO Contact Magnetic Level Switch
					C	Solenoid Valve, AC220V			TC	Add a NC Contact Reed Switch
					K	Solenoid Valve, DC24V			TO	Add a NO Contact Reed Switch
