• CEPB-01-C-3-2

CEPB Pressure-Relief Type Oil Electric Lubricator

  • Metered Qil Quantity
  • Automatic Lubrication Controlled by Timer
  • Two Operation Modes Available

※ Please select the specifications you need.：

*Model
*Tank Capacity (Material)
*Voltage
*Discharge Bore
*Operation Mode
Special Request
Remarks
  1. The time adjusters are inside the control box of CEPB. There are eight kinds of operation time and interval time for selection.
  2. There are operation (ACT) and interval (INT) indicators on the control box.
  3. There are two operation modes after the power of CEPB is on. The standard mode is turn on interval.
    ● Turn-on-feeding: Operation time starts first after the power is on.
    ● Turn-on-interval: Interval time starts first after the power is on.
  4. Turn-on-interval model has a memory function. If the power is suddenly off during the interval time, CEPB will continue to operate from the remaining interval time after restarting, which can effectively avoid over-lubrication.
  5. CEPB has to work with volume distributors to deliver the metered quantity of oil to the lubrication points.
  6. CEPB has a pressure gauge that enables the user to check the operating pressure easily.
  7. CEPB has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
  8. CEPB has a buzzer that sends an alarm sound when the oil level is low.
  9. CEPB has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
  10. CEPB has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.

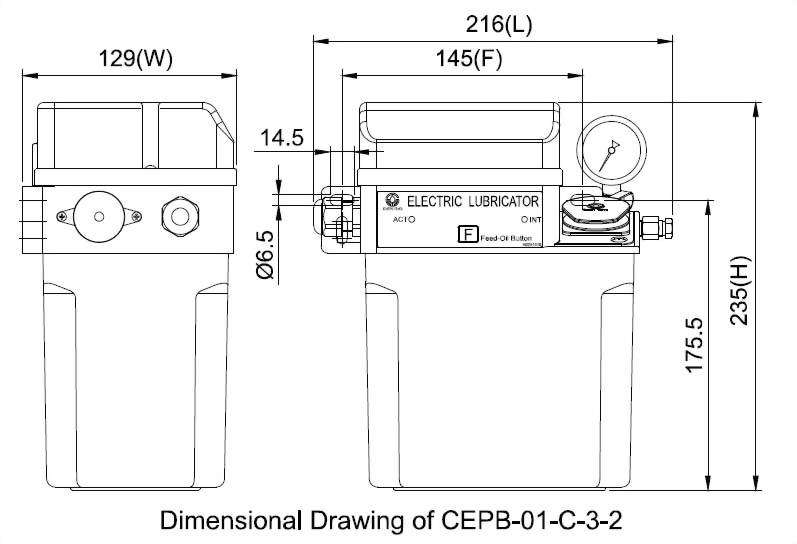

cepb Dimensional Drawing


◆ Dimensional Data

Tank Capacity Tank Material Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
2L Resin 216 129 235 145 2.73
2L Alum. 221 150 225 95x200 3.87
3L Resin 227 167 239 205 3.15
4L Resin 277 162 250 250 3.70
4L Alum. 297 170 244 95x280 4.70
8L Iron 355 201 261 95x338 7.35

◆  Technical Data

Operation Time 2, 3, 5, 10, 15, 20, 25, 30 sec
Interval Time 3, 5, 10, 15, 20, 30, 60, 180 min
Motor Power 25±3W
Voltage 110V 220V
Ampere 1.8A 0.9A
Hertz 60Hz 50Hz, 60Hz
Max. Discharge Volume 130cc/min, 260cc/min
Max. Operating Pressure 15kgf/c㎡
Discharge Bore Ø4 , Ø6
Float Switch NC Contact
Suitable Viscosity Oil, 32-68 cSt@40oC

◆  Wiring Diagram

Power Ground Abnormal Output
POWER GND(P.E) COM NC(B) NO(A)
⊕ ⊕ ⊕ ⊕ ⊕ ⊕

◆  Order Code

Model Tank Capacity(Material) Voltage Discharge Bore Operation Mode Special Request
CEPB 01 C 3 2 ※
01 2L (Resin) A 110V, 60Hz 0 Ø4 1 Turn-on-Feeding Z Increase Discharge Volume to 260cc/min
02 2L (Alum.) B 220V, 50Hz 1 Ø6 2 Turn-on-Interval
03 3L (Resin) C 220V, 60Hz 2 Ø4 W/Pressure Gauge
04 4L (Resin) 3 Ø6 W/Pressure Gauge
05 4L (Alum.)
08 8L (Iron)
