• CESD-01 Standard

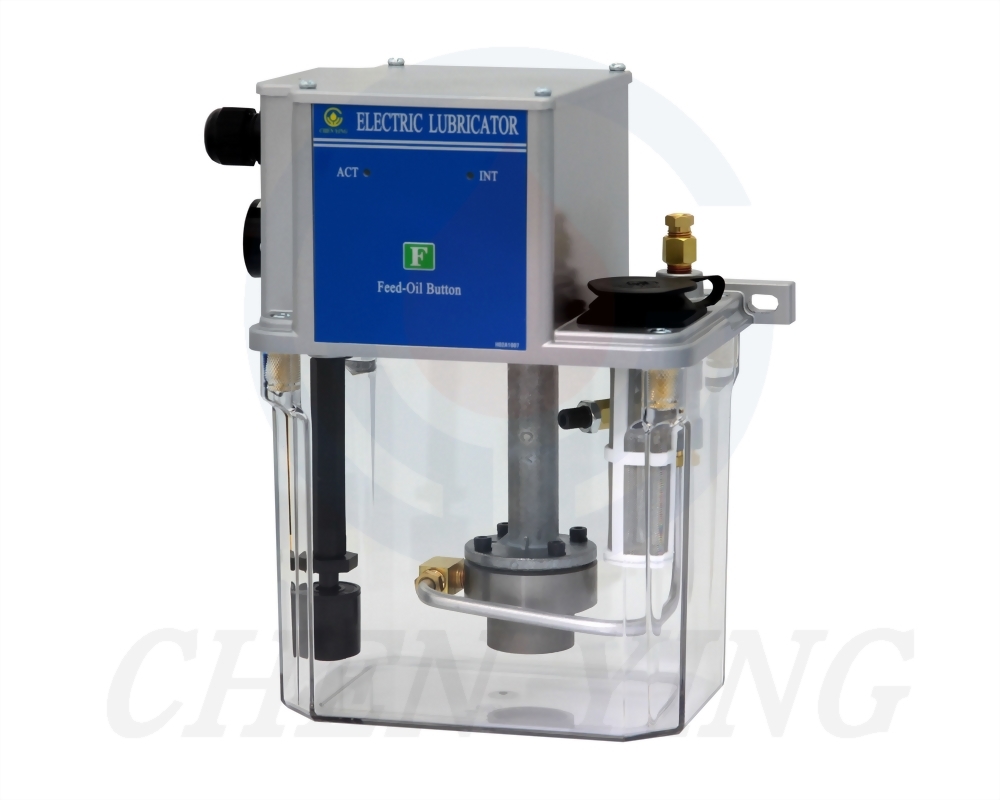

CESD Type Resistance Electric Lubricator

  • Proportional Oil Quantity
  • Automatic Lubrication Controlled by Timer
  • Two Operation Modes Available

Please select the specifications you need.:

*Model
*Tank Capacity
*Time(Act x Interval)
*Voltage
*Discharge Bore
*Operation Model
Remarks
◆Features:
  1. The time adjuster of CESD is inside the wiring box. The electronic box has operation indicator and interval time indicator.
  2. Two types of this CESD series, Turn On-Feeding Type will feed oil after turning on the power. Turn On-Interval Type will be interval after turning on the power. Both types can memorize the original setting time automatically. If the power is suddenly off, after turning on the power, it would continue the unfinished cycle to avoid repeating oil feeding.
  3. It has a float switch that can detect the oil volume. When the oil is lower than the standard. The float switch will send continuous signal automatically and the buzzer will alarm.
  4. Please don’t press the force feed-oil ( F button) more than three minutes in order to avoid overloading.When the temperature reaches 100℃, the sensor will be on to stop the motor continue running about 5 minutes.
  5. Its function is similar to CESW type. The difference is the location of the time adjuster.

◆Application of Machines Equipment:
  1. CESD Turn On-Feeding Type is suitable for the machinery that needs automatically oil feeding after turning on the power.
  2. CESD Turn On-Interval Type is suitable for the machinery that has to avoid feeding oil immediately after turning on the power.
