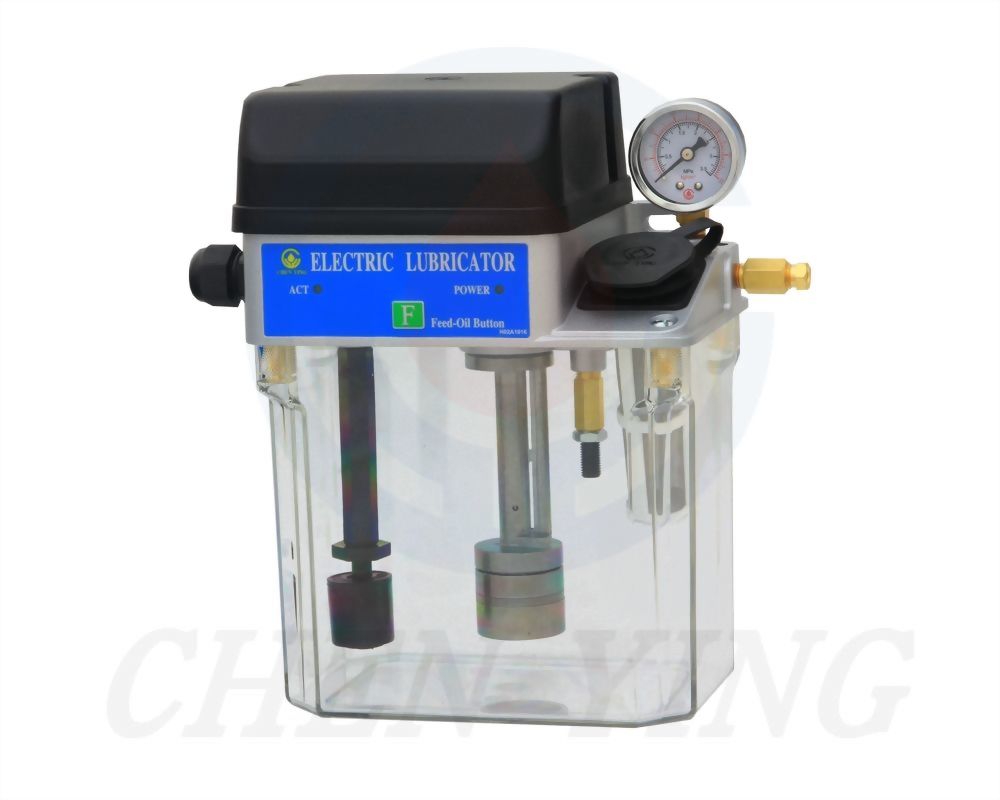

CESG01 Resistance Type Oil Electric Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity (Material)
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of CESG01 are controlled by PLC.
CESG01 has a pressure gauge that enables the user to check the operating pressure easily.
CESG01 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
CESG01 has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
CESG01 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.
A 1kgf/cm² socket pressure switch can be added to CESG01 on request to detect the operating pressure automatically.

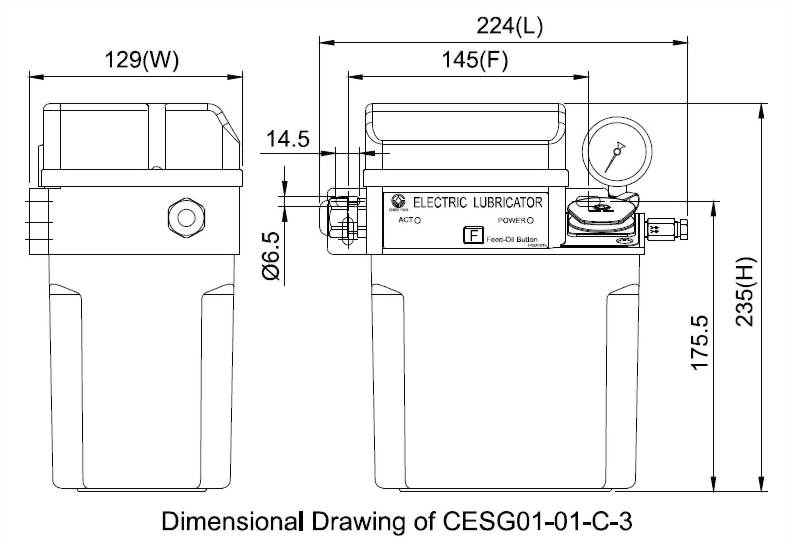

◆ Dimensional Data

◆ Technical Data

Motor Power	25±3W
Voltage	110V	220V
Ampere	1.8A	0.9A
Hertz	60Hz	50Hz, 60Hz
Max. Discharge Volume	130cc/min, 260cc/min
Max. Operating Pressure	15kgf/c㎡
Discharge Bore	Ø4 , Ø6
Float Switch	NC Contact (NO Contact on request)
Pressure Switch	Optional (NC or NO Contact)
Suitable Viscosity	Oil, 32-68 cSt@40^oC

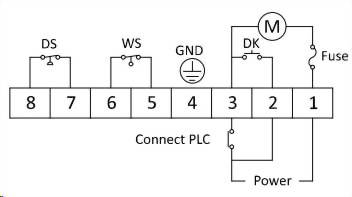

◆ Wiring Diagram

M     = Motor
GND = Ground
WS   = Float Switch
DK    = Feed-Oil Button
DS    = Pressure Switch
            (Available on request)

◆ Order Code

Model	Tank Capacity(Material)		Voltage		Discharge Bore		Special Request
CESG01	01		C		3		※
	01	2L (Resin)	A	110V, 60Hz	0	Ø4	PC	Add a NC Contact Pressure Switch
	02	2L (Alum.)	B	220V, 50Hz	1	Ø6	PO	Add a NO Contact Pressure Switch
	03	3L (Resin)	C	220V, 60Hz	2	Ø4 W/Pressure Gauge	SO	NO Contact Float Switch
	04	4L (Resin)			3	Ø6 W/Pressure Gauge	Z	Increase Discharge Volume to 260cc/min
	05	4L (Alum.)
	08	8L (Iron)
