CESG03 Pressure-Relief Type Oil Electric Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity (Material)
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of CESG03 are controlled by PLC.
CESG03 has to work with volume distributors to deliver the metered quantity of oil to the lubrication point.
CESG03 has a pressure gauge that enables the user to check the operating pressure easily.
CESG03 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
CESG03 has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
CESG03 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.
An 8kgf/cm² socket pressure switch can be added to CESG03 on request to detect the operating pressure automatically.

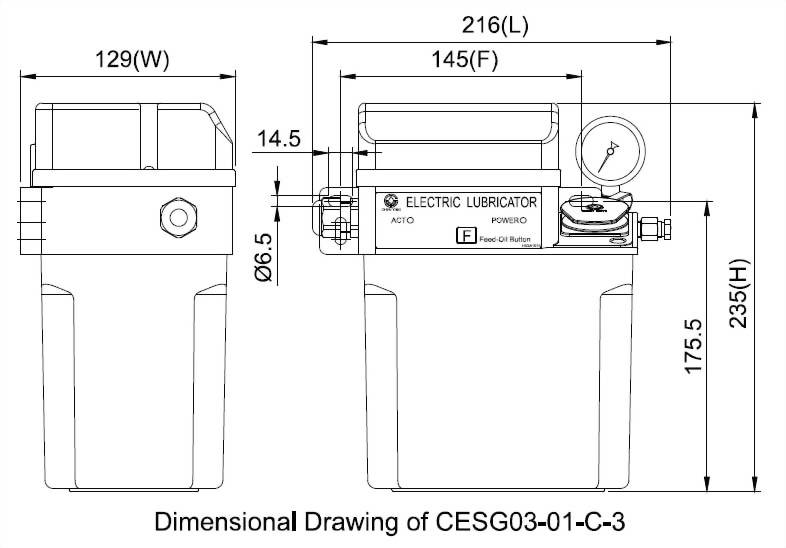

◆ Dimensional Data

◆ Technical Data

Motor Power	25±3W
Voltage	110V	220V
Ampere	1.8A	0.9A
Hertz	60Hz	50Hz, 60Hz
Max. Discharge Volume	130cc/min, 260cc/min
Max. Operating Pressure	15kgf/c㎡
Discharge Bore	Ø4 , Ø6
Float Switch	NC Contact (NO Contact on request)
Pressure Switch	Optional (NC or NO Contact)
Suitable Viscosity	Oil, 32-68 cSt@40^oC

◆ Wiring Diagram

M     = Motor
GND = Ground
WS   = Float Switch
DK    = Feed-Oil Button
DS    = Pressure Switch
            (Available on request)

◆ Order Code

Model	Tank Capacity(Material)		Voltage		Discharge Bore		Special Request
CESG03	01		C		3		※
	01	2L (Resin)	A	110V, 60Hz	0	Ø4	PC	Add a NC Contact Pressure Switch
	02	2L (Alum.)	B	220V, 50Hz	1	Ø6	PO	Add a NO Contact Pressure Switch
	03	3L (Resin)	C	220V, 60Hz	2	Ø4 W/Pressure Gauge	SO	NO Contact Float Switch
	04	4L (Resin)			3	Ø6 W/Pressure Gauge	Z	Increase Discharge Volume to 260cc/min
	05	4L (Alum.)
	08	8L (Iron)
