CLA Resistance Type Oil Manual Lubricator

Proportional Oil Quantity
Manual Lubrication

※ Please select the specifications you need.：
*Model
*Tank Capacity
*Outlet Type
*Outlet Adapter
*Discharge Bore
Remarks

Q'ty :

CLA-The Resistance Type Oil Manual Lubricator (Model CLA) is a compact, easy-to-install, economical manual lubricator. Designed with a durable pull-handle mechanism, it allows operators to manually deliver lubricant quickly and accurately to multiple lubrication points. With a flexible outlet design, CLA can be configured for right-side, left-side, or dual-outlet operation. A reverse stopper ensures oil flow is unidirectional, preventing backflow and maintaining proper line pressure. This enhances lubrication reliability and protects internal components from premature wear. CLA is ideal for machines that don't require continuous or automatic oil feeding at a particular time.

The compact size of CLA makes the installation easy.
CLA discharges oil whenever its handle is pulled.
The outlet of CLA can be on either the right side or the left side of the handle. A dual-outlet model is also available for selection.
CLA has a reverse stopper that prevents the back-flow of oil.
CLA can work with machines that do not require oil feeding at a particular time.

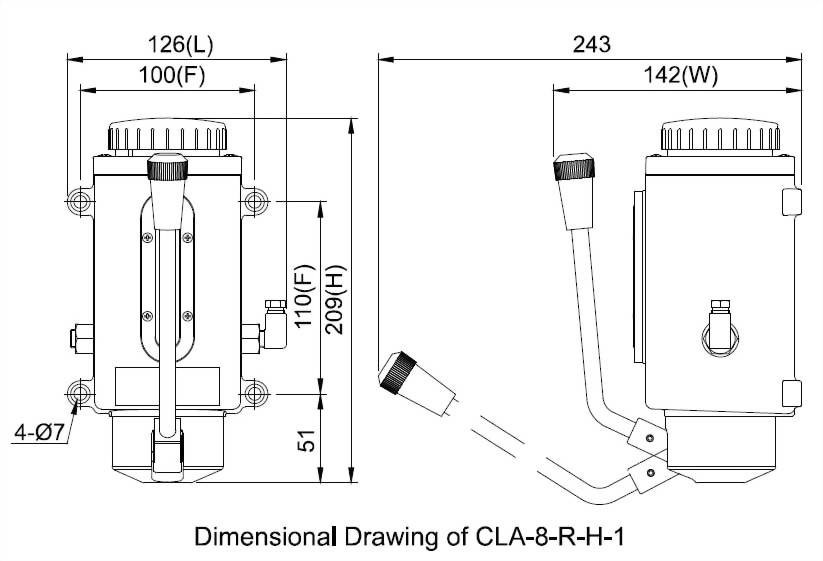

◆ Technical Data & Dimensional Data

Model	Tank Capacity	Length (mm)	Width (mm)	Height (mm)	Fixed Hole Distance (mm)	Max. Discharge Volume	Max. Operating Pressure	Suitable Viscosity	Discharge Bore	Outlet Number	N.W. (kg)

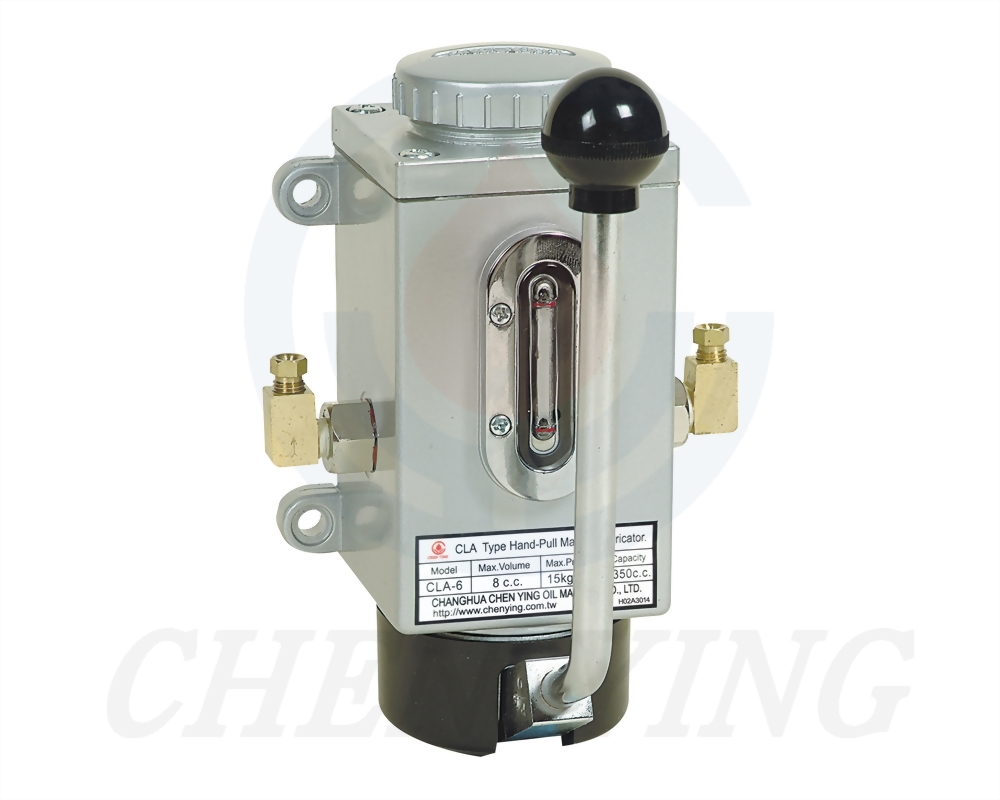

CLA-6	350cc	111	137	188	85x85	8cc/stroke	15kgf/c㎡	Oil 32-68 cSt@40℃	Ø4	1	1.23
										2	1.25
									Ø6	1	1.24
										2	1.27

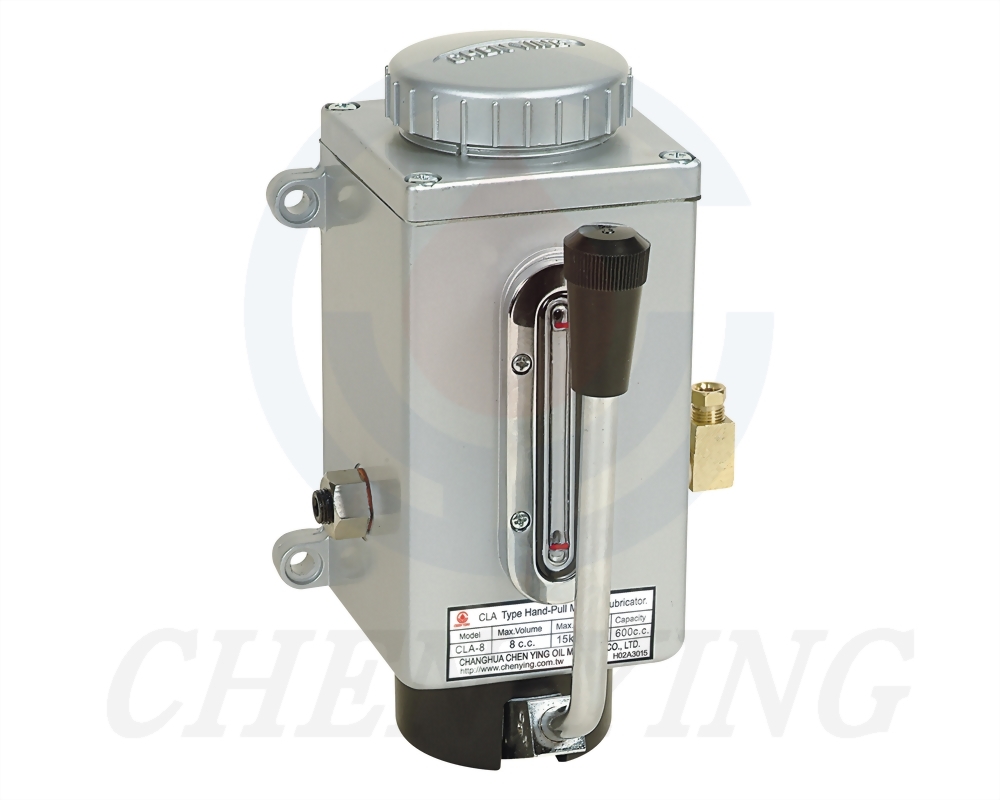

CLA-8	600cc	126	142	209	100x110				Ø4	1	1.50
										2	1.52
									Ø6	1	1.50
										2	1.53

◆ Order Code

Model	Tank Capacity		Outlet Type		Outlet Adapter		Discharge Bore
CLA	8		R		H		1
	6	350cc	L	Left Outlet	D	Straight Adapter	0	Ø4
	8	600cc	R	Right Outlet	H	Elbow Adapter	1	Ø6
			D	Dual Outlets
