• CLAB-8-R-H-1
  • CLAB-6-D-H-1

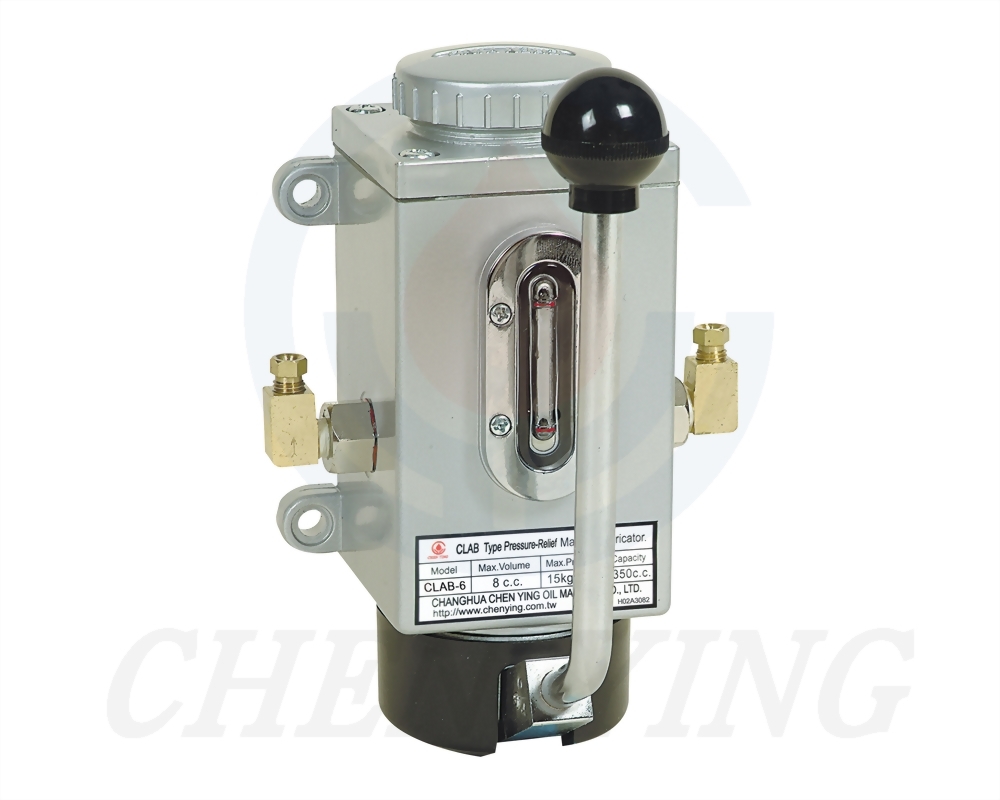

CLAB Pressure-Relief Type Oil Manual Lubricator

  • Metered Qil Quantity
  • Manual Lubrication

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Outlet Type
*Outlet Adapter
*Discharge Bore
Remarks
  1. The compact size of CLAB makes the installation easy.
  2. CLAB discharges oil whenever its handle is pulled.
  3. The outlet of CLAB can be on either the right side or the left side of the handle. A dual-outlet model is also available for selection.
  4. CLAB has to work with volume distributors to deliver the metered quantity of oil to the lubrication point.
  5. CLAB can work with machines that do not require oil feeding at a particular time.

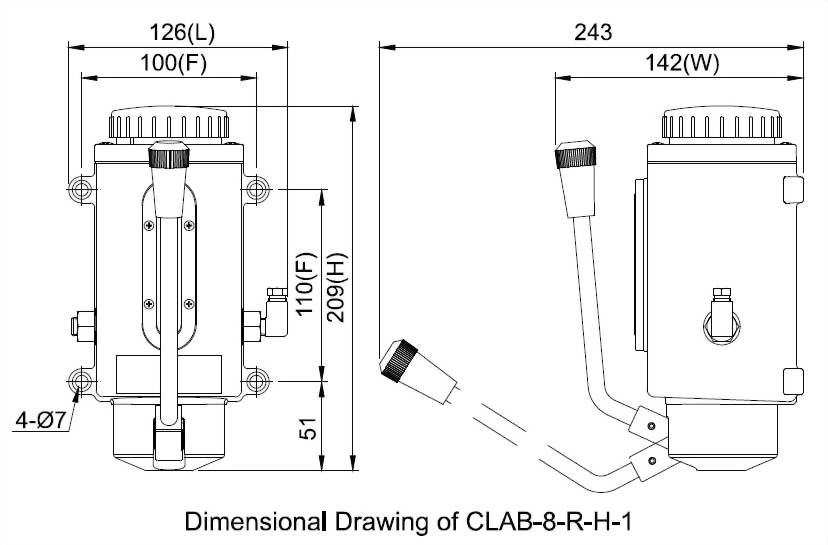

clab Dimensional Drawing

◆ Dimensional Data


Model Tank Capacity
Length
(mm)
Width
(mm)
Height
(mm)
Fixed Hole Distance
(mm)
Max. Discharge Volume
Max.
Operating
Pressure
Suitable Viscosity Discharge Bore
Outlet
Number
N.W.
(kg)
CLAB-6 350cc 111 137 188 85x85 8cc/stroke
15
kgf/c㎡
Oil
32-68
cSt@40℃
Ø4 1 1.23
2 1.24
Ø6 1 1.24
2 1.25
CLAB-8 600cc 126 142 209 100x110 Ø4 1 1.48
2 1.50
Ø6 1 1.49
2 1.52


◆ Order Code

Model Tank Capacity Outlet Type Outlet Adapter Discharge Bore
CLAB 8 R H 1
6 350cc L Left Outlet D Straight Adapter 0 Ø4
8 600cc R Right Outlet H Elbow Adapter 1 Ø6
D Dual Outlets
