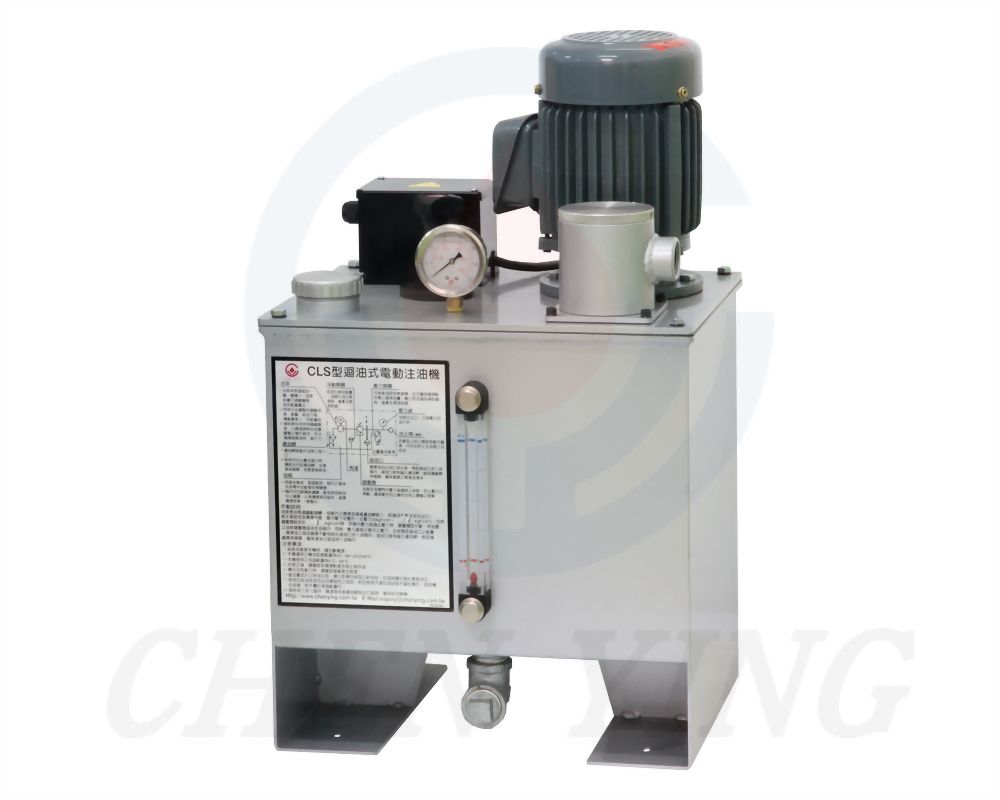

CLS Circulating Type Oil Electric Lubricator

  • Proportional Oil Quantity
  • Automatic Lubrication Controlled by PLC

※ Please select the specifications you need.：

*Model
*Discharge Volume
*Tank Capacity (Material)
*Voltage
*Motor Power
*Discharge Bore (PT1/4)
*Cyclic Inlet
Special Request
Remarks
  1. CLS has a cyclic inlet that allows the oil to return to the oil tank, which saves the oil consumption.
  2. CLS has a magnetic filter inside the cyclic inlet that prevents iron filings from entering the oil tank to maintain the cleanness of the circulating oil.
  3. The operation and interval time of CLS are controlled by PLC. CLS also can operate continuously without interval time.
  4. The gear pump of CLS is made of special aluminum alloy and assembled with the 1/2HP or 1HP motor to provide stable output pressure, low operating noise, and long service life.
  5. CLS has a pressure-regulating valve that enables the user to adjust the operating pressure.
  6. CLS has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
  7. CLS has a 1kgf/cm2 socket pressure switch that detects the operating pressure automatically.
  8. After installing CLS and connecting all oil pipes, let CLS continue running until oil fulfills all oil pipes. The lubricator is ready to use when the oil flows out to remove the air bubbles.

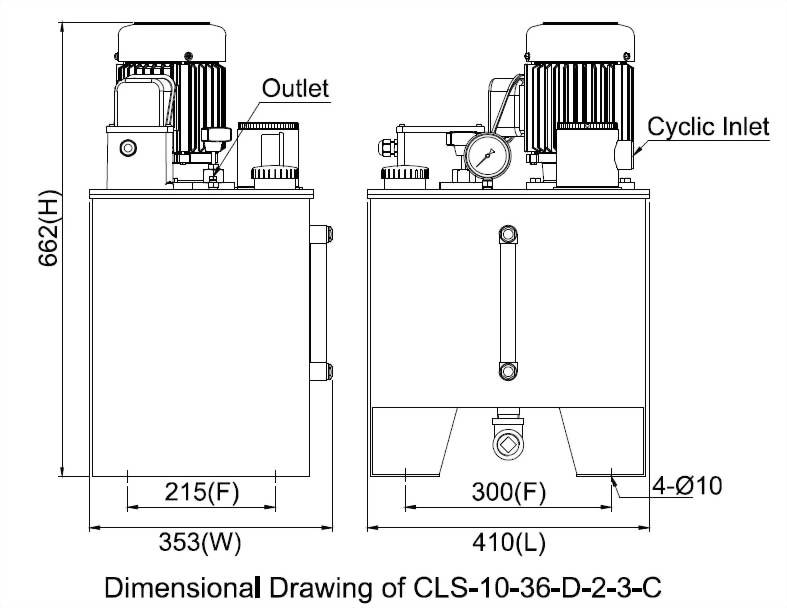

CLS Dimensional Drawing


◆ Dimensional Data

Tank Capacity Tank Material Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
36L Iron 410 353 662 300x215 46.3
64L Iron 560 480 662 450x300 52.5
77L Iron 610 480 692 500x300 75.5

◆ Technical Data

Motor Power (Number of Poles) 1/2HP, 1HP (4P)
Voltage 1Ø110V, 1Ø220V, Three Phase
Max. Discharge Volume CLS-10：1.5 L/min CLS-30：3.0 L/min CLS-50：4.5 L/min
Max. Operating Pressure 15kgf/c㎡
Discharge Bore Ø4 , Ø6
Cyclic Inlet PT3/4, PT1
Float Switch NC Contact (NO Contact on request)
Pressure Switch NC Contact (NO Contact on request)
Suitable Viscosity Oil, 32-100 cSt@40℃

◆ Order Code

Model Discharge Volume Tank Capacity(Material) Voltage Motor Power Discharge Bore (PT1/4) Cyclic Inlet Special Request
CLS 10 36 D 2 3 C ※
10 1.5 L/min 30 30L (Iron) A  1Ø110V 2 1/2HP 2 Ø4 W/Pressure Gauge B PT3/4 PO NO Contact Pressure Switch
30 3.0 L/min 36 36L (Iron) C  1Ø220V 4 1HP 3 Ø6 W/Pressure Gauge C PT1 SO NO Contact Float Switch
50 4.5 L/min 40 40L (Iron) D  3Ø220/380V
60 60L (Iron) E  3Ø220/440V
64 64L (Iron) F  3Ø208/415V
77 77L (Iron) G  3Ø230/460V
100 100L (Iron) H  3Ø240/480V
130 130L (Iron) M  3Ø220V
150 150L (Iron) N  3Ø380V
204 204L (Iron) X  Special Voltage
※A standard dual-voltage motor is connected for low voltage. Please specify if you need it to be connected for high voltage when placing an order.
