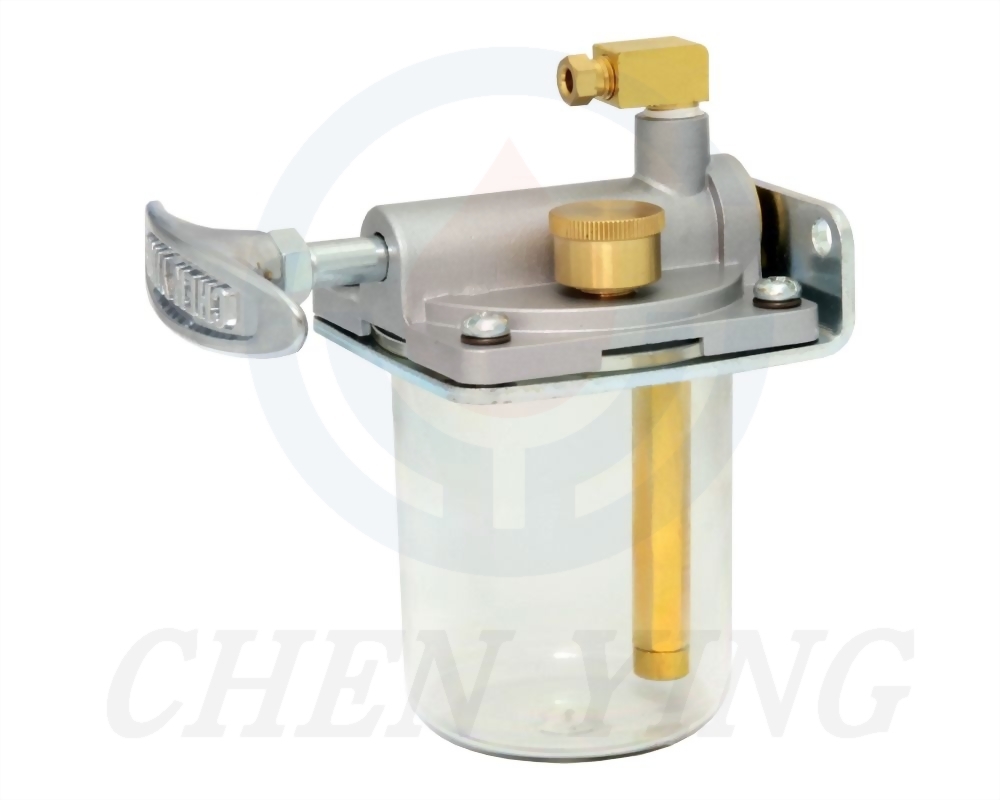

• CTA-3-H-0

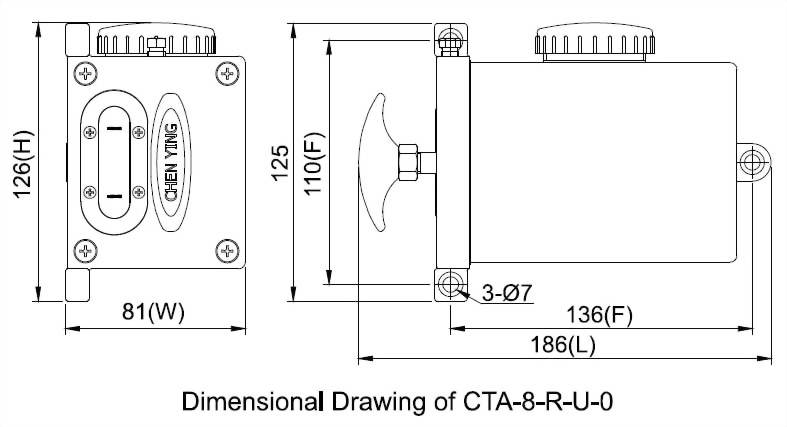

  • CTA-8-L-U-0 and CTA-8-R-U-0

CTA Resistance Type Oil Manual Lubricator

  • Proportional Oil Quantity
  • Manual Lubrication

※ Please select the specifications you need.：

*Specification
*Discharge Bore
Remarks
  1. CTA-3, the smallest manual lubricator, is suitable for the machine that has limited space.
  2. The outlet of CTA-8 can be on either the right side or the left side of the Fixed holes.
  3. CTA discharges oil whenever its handle is pulled.
  4. CTA has a reverse stopper that prevents the back-flow of oil.
  5. CTA can work with machines that do not require oil feeding at a particular time.

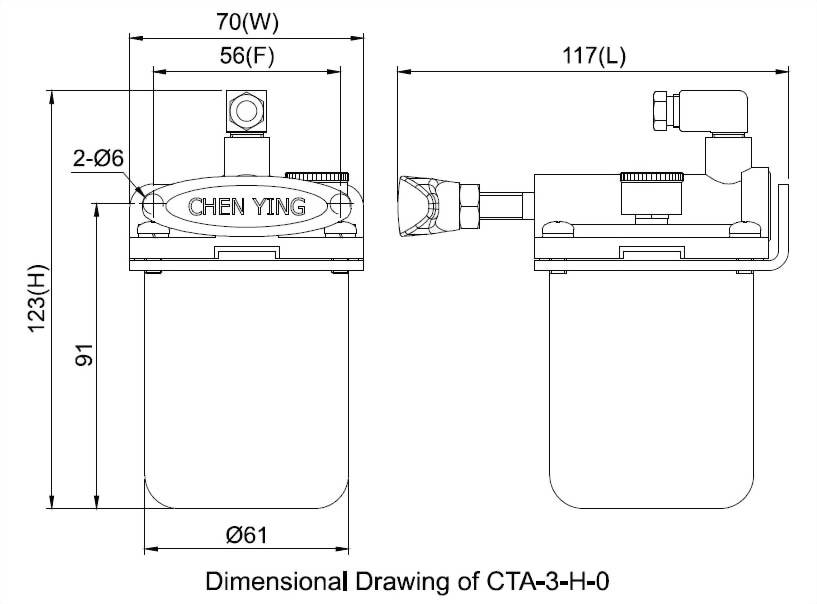

CTA-3 Dimensional Drawing


◆ Technical Data & Dimensional Data

Model Tank Capacity
Fixed Hole Distance (mm)
Length (mm)
Width (mm)
Height (mm)
Discharge Bore Max. Discharge Volume Max. Operating Pressure Suitable Viscosity
N.W. (kg)
CTA-3 180cc 56 117 70 123 Ø4 3cc/stroke
3.5kgf/c㎡
Oil
32-68 cSt@40℃
0.49
125 Ø6
CTA-8 650cc 110x136 186 81 126 Ø4 8cc/stroke 1.01
134 Ø6


◆ Order Code (CTA-3)

Model Outlet Adapter Discharge Bore
CTA-3 H 0
D Straight Adapter 0 Ø4
H Elbow Adapter 1 Ø6

◆ Order Code (CTA-8)

Model Outlet Type Outlet Direction Discharge Bore
CTA-8 R U 0
L Left Outlet U Upward 0 Ø4
R Right Outlet D Downward 1 Ø6
