• PMO-1-02-F-13-1

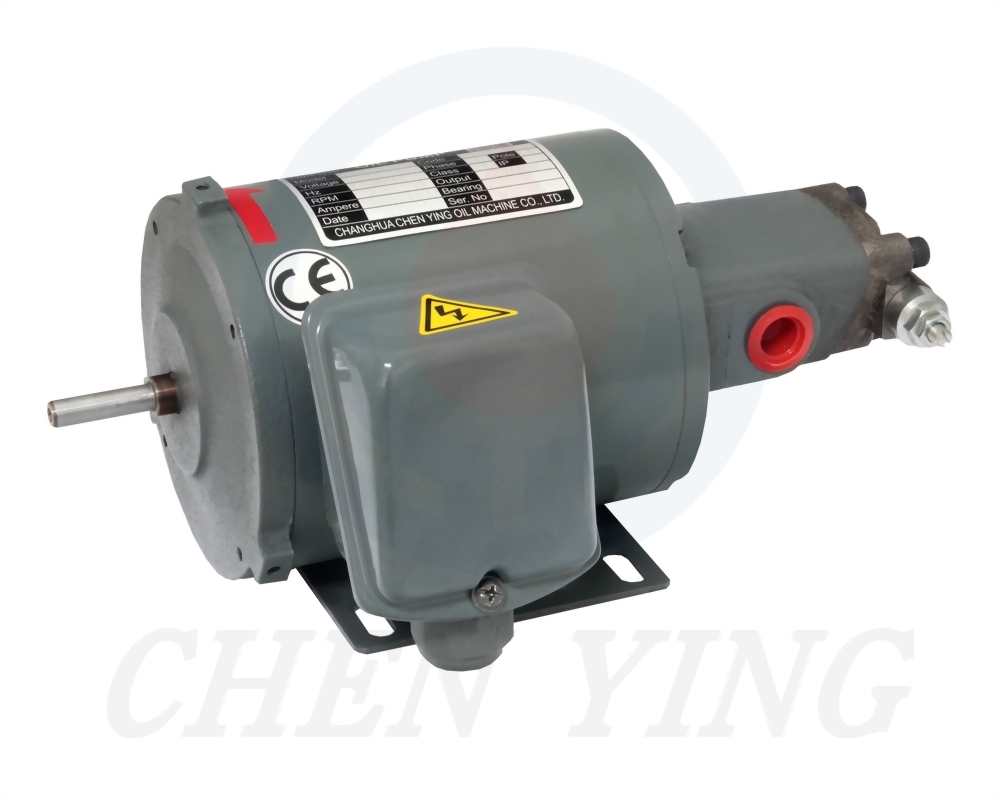

Integrated Motor with Oil Pump

※ Please select the specifications you need.：

*Model
*HP
*Voltage
*Pump Model
*Pressure Valve
Special Request
Remarks


  1. Integrated Motor with Oil Pump only rotates either clockwise or anti-clockwise and the specification is only available for 1/4HP Horizontal Motor.
  2. The shafts of motor and pump rotor are integrated so that it can prevent the two shafts from chafing against each other and prolong the life time of it.
  3. There are CYP-12A and CYP-13A available for different flow rates.
  4. It can be added an adjustable pressure valve as optional. The range of pressure adjustment is 2-5 kgf/cm2.
  5. CYP oil pump can be added bearings to reduce wear rate and the noise. This design has Taiwan Design Patent no. M344393.
  6. It can be applied widely for lubricating or cooling in various machines, such as CNC machines, knitting machines and planning machines.
  7. Suitable oil viscosity range is 32~68cSt@40°C.
  8. The suitable operation temperature range is 0°C~90°C.

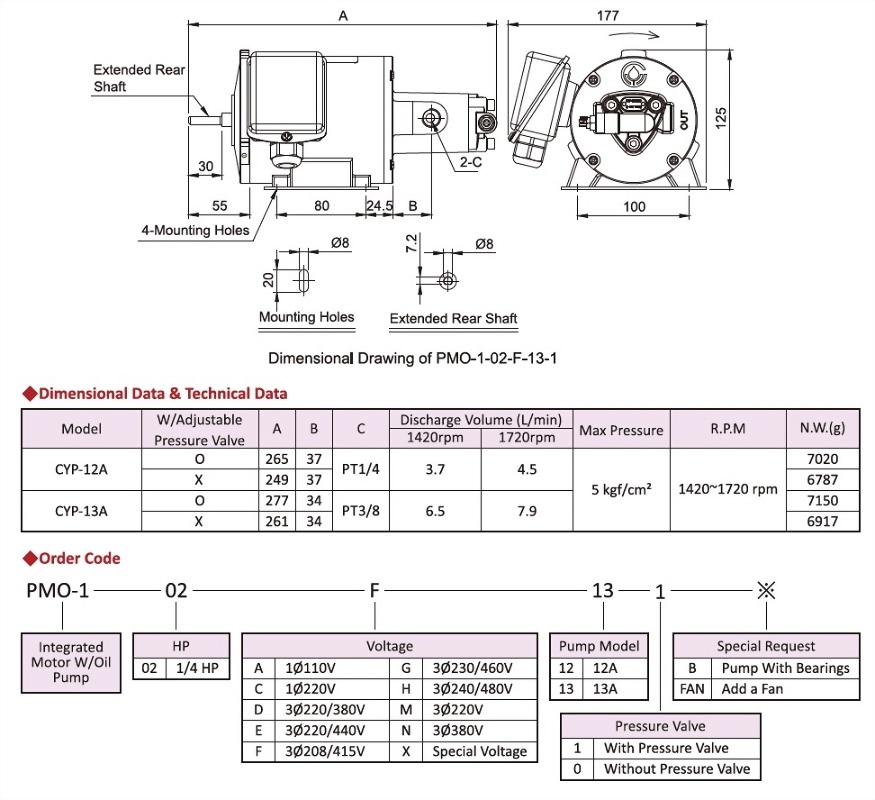

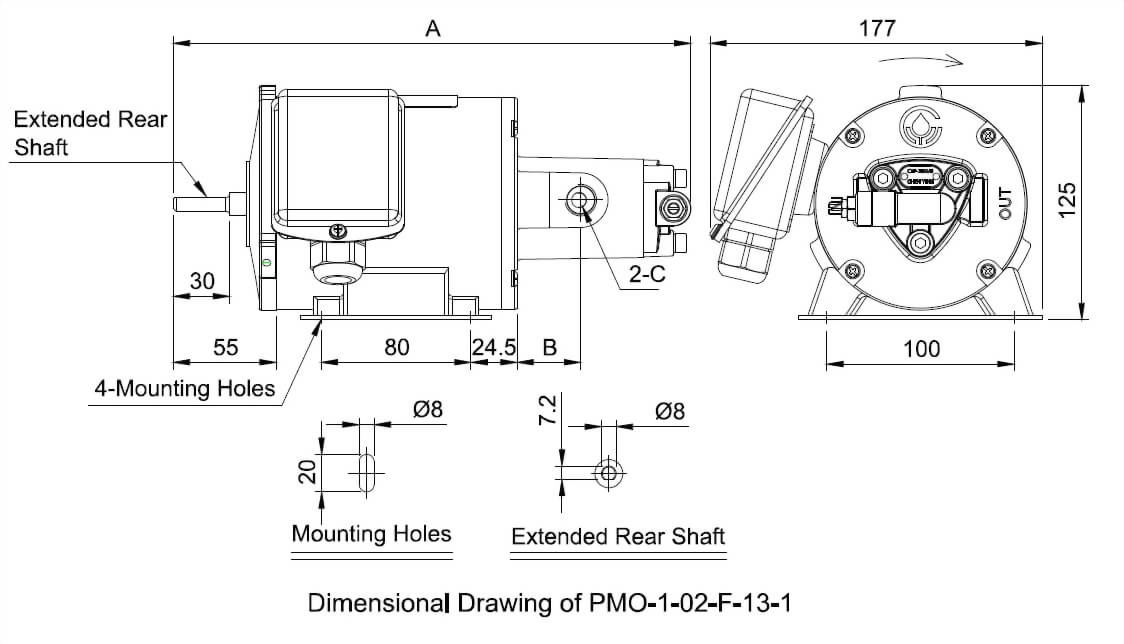

integrated-motor-with-oil-pump Dimensional Drawing


◆ Dimensional Data & Technical Data

Model W/Adjustable Pressure Valve A B C Discharge Volume(L/min) Max Pressure R.P.M N.W.(g)
1420rpm 1720rpm
CYP-12A O 265 37 PT1/4 3.7 4.5 5 kgf/cm2 1420~1270 rpm 7020
X 249 37 6787
CYP-13A O 277 34 PT3/8 6.5 7.9 7150
X 261 34 6917

◆ Order Code

Model HP Voltage Pump Model Pressure Valve Special Request
PMO-1 02 F 13 1 ※
02 1/4HP A 1Ø110V 12 12A 1 With Pressure Valve B Pump With Bearings
C 1Ø220V 13 13A 0 Without Pressure Valve FAN Add a fam
D 3Ø220/380V
E 3Ø220/440V
F 3Ø208/415V
G 3Ø230/460V
H 3Ø240/480V
X Special Voltage
