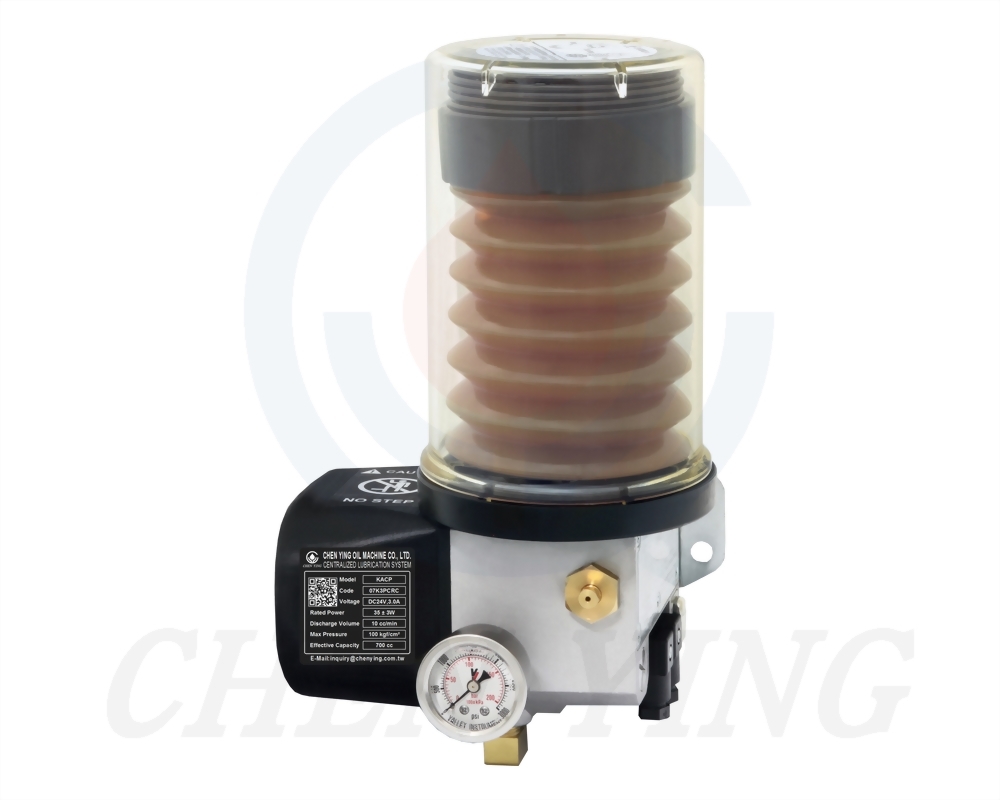

KABP Pressure-Relief Type Grease Electric Lubricator

※ Please select the specifications you need.：
*Model
*Effective Capacity
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of KAB and KABP are controlled by PLC.
KAB and KABP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
KAB and KABP have pressure gauges that enable the users to check the operating pressure easily.
KAB and KABP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
A 60kgf/cm² socket pressure switch can be added to KAB and KABP on request to detect the operating pressure automatically.
A magnetic level switch can be added to KAB and KABP on request to detect the grease level automatically.
For KAB, please refill grease from the grease inlet to prevent air and impurities from going into the grease tank.
KABP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KABP-07 with a new grease cartridge. Standard KABP-07 does not include a grease cartridge but is available upon request.

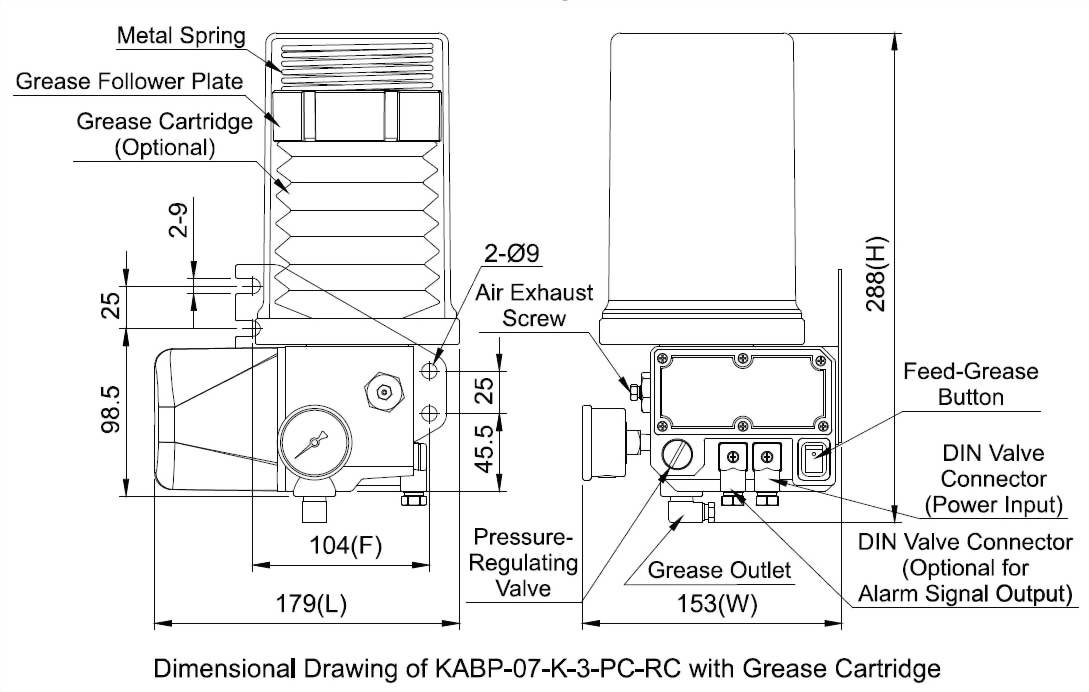

◆ Dimensional Data

Model	Tank Capacity	Length (mm)	Width (mm)	Height (mm)	Fixed Hole Distance (mm)	N.W. (kg)
KABP-07	700cc Grease Cartridge	179	153	288	104	2.49

◆ Technical Data

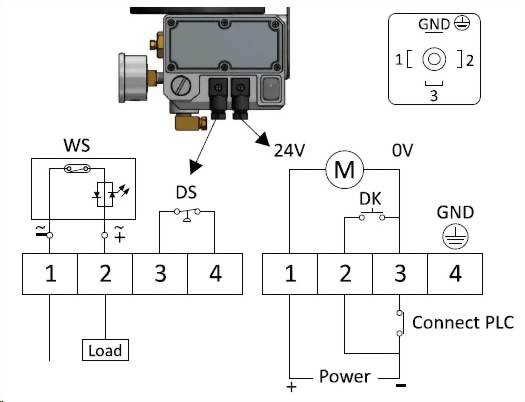

◆ Wiring Diagram

M = Motor

GND = Ground

DK = Feed-Grease Button

DS = Pressure Switch (Available on request)

WS = Magnetic Level Switch (Available on request)

◆ Order Code

Model	Effective Capacity		Voltage		Discharge Bore		Special Request
KABP	07		K		3		※
	07	700cc Grease Cartridge	K	DC24V	1	Ø6	PC	Add a NC Contact Pressure Switch
					3	Ø6 W/Pressure Gauge	PO	Add a NO Contact Pressure Switch
					4	Ø8	RC	Add a NC Contact Magnetic Level Switch
					5	Ø8 W/Pressure Gauge	RO	Add a NO Contact Magnetic Level Switch

※Please refer to the 700cc Grease Cartridge catalog if you need to purchase one.

◆ The dimensional and technical data of 700cc Grease Cartridge is as described below

◆ Order Code

Order Code	Grease Type	Grease Viscosity	Minimum Order Quantity Requirement
I01D0021	Mobilux EP023	NLGI 000	--
I01D0012	Mobil EP0	NLGI 0	--
I01D0013	Mobil EP1	NLGI 1	100

◆ Instruction of Replacing 700cc Grease Cartridge

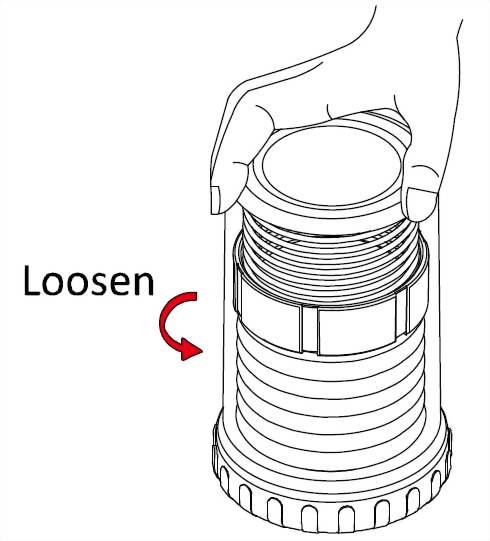

1		Hold the grease cartridge cover tightly and turn it anticlockwise to disassemble it from the grease cartridge cover base .

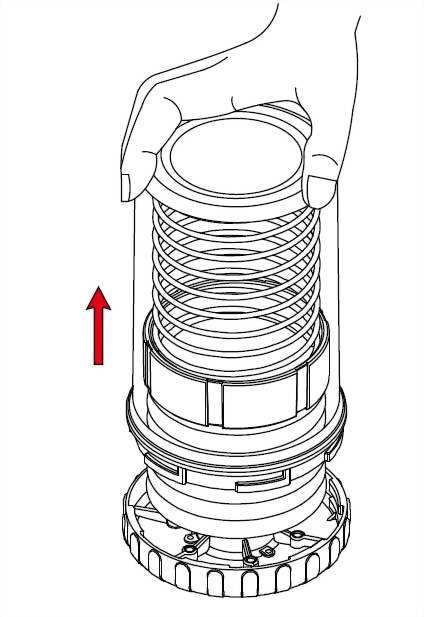

2		Take the grease cartridge cover out and put it aside.

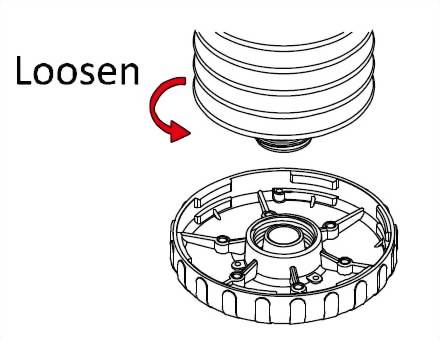

3		Rotate the used grease cartridge anticlockwise to remove it from the grease cartridge cover base and dispose of it properly.

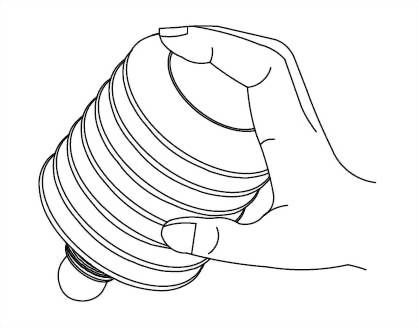

4		Before replacing a new grease cartridge, lightly squeeze out a little grease in the grease cartridge to prevent air from entering the lubricator.

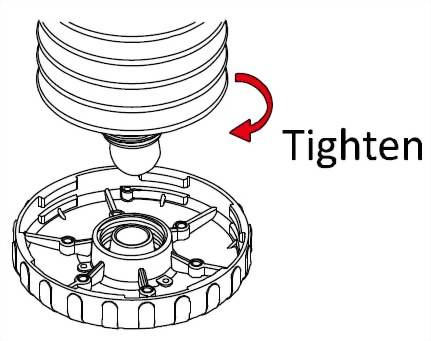

5		Assemble the new grease cartridge to the grease cartridge cover base by turning it clockwise.

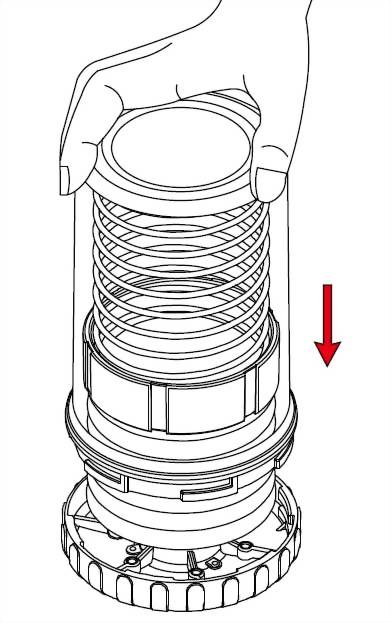

6		Assemble the grease cartridge cover back to the grease cartridge cover base.

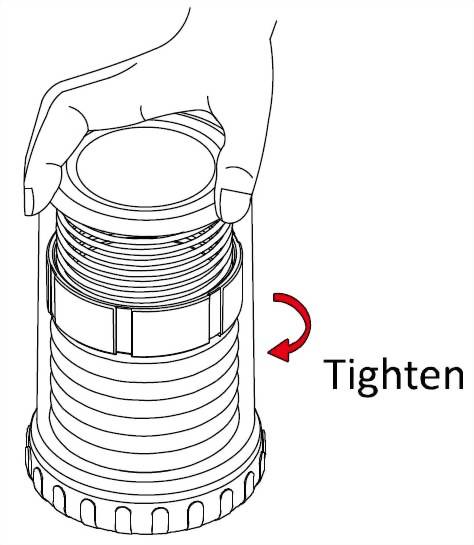

7		Rotate the grease cartridge cover clockwise to assemble it with the grease cartridge cover base to complete the replacement of the grease cartridge.
