KAC Resistance Type Grease Electric Lubricator

1. The operation and interval time of KAC and KACP are controlled by PLC.
2. KAC and KACP have pressure gauges that enable the users to check the operating pressure easily.
3. KAC and KACP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
4. A 60kgf/cm² socket pressure switch can be added to KAC and KACP on request to detect the operating pressure automatically.
5. A magnetic level switch can be added to KAC and KACP on request to detect the grease level automatically.
6. For KAC, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
7. KACP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KACP-07 with a new grease cartridge. Standard KACP-07 does not include a grease cartridge but is available upon request.

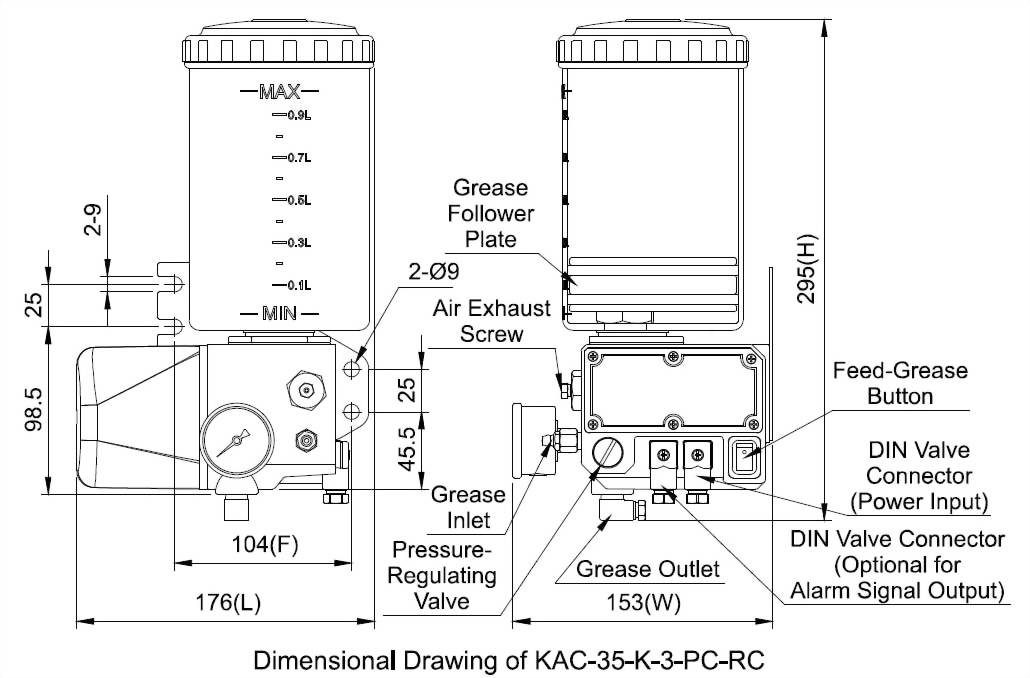

◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

M      = Motor GND = Ground DK    = Feed-Grease Button DS    = Pressure Switch (Available on request) WS   = Magnetic Level Switch (Available on request)

◆ Order Code
