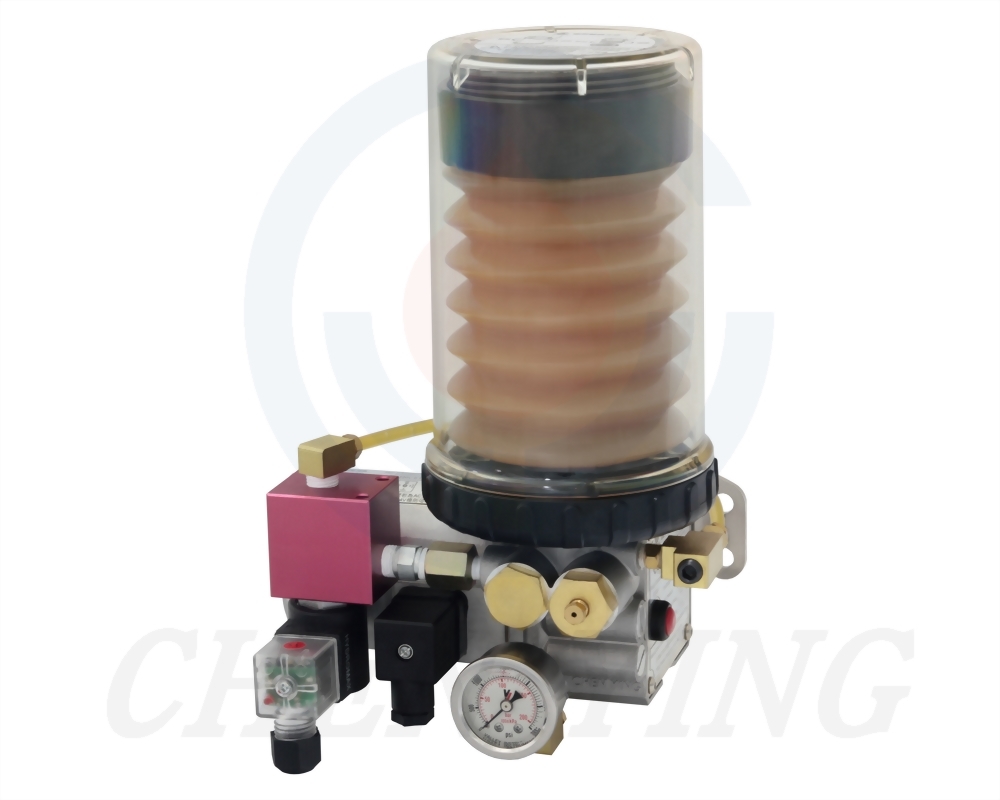

KGBP Pressure-Relief Type Grease Electric/Pneumatic Lubricator

※ Please select the specifications you need.：
*Model
*Effective Capacity
*Voltage
*Discharge Bore
*Pressure-Relief Type
Special Request
Remarks

Q'ty :

The operation and interval time of KGB and KGBP are controlled by PLC. KGB and KGBP require 4.5-8kgf/cm² pneumatic pressure supply for the pressure-relief function. Electric type is also available on request.
KGB and KGBP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
KGB and KGBP have pressure gauges that enable the user to check the operating pressure easily.
KGB and KGBP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
AC110V and AC220V models have thermal controls that will shut down the motors for about 5 minutes when the motor is overheated.
A 60kgf/cm² socket pressure switch can be added to KGB and KGBP on request to detect the operating pressure automatically.
A magnetic level switch can be added to KGB and KGBP on request to detect the grease level automatically.
For KGB, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
KGBP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGBP-07 with a new grease cartridge. Standard KGBP-07 does not include a grease cartridge but is available upon request.

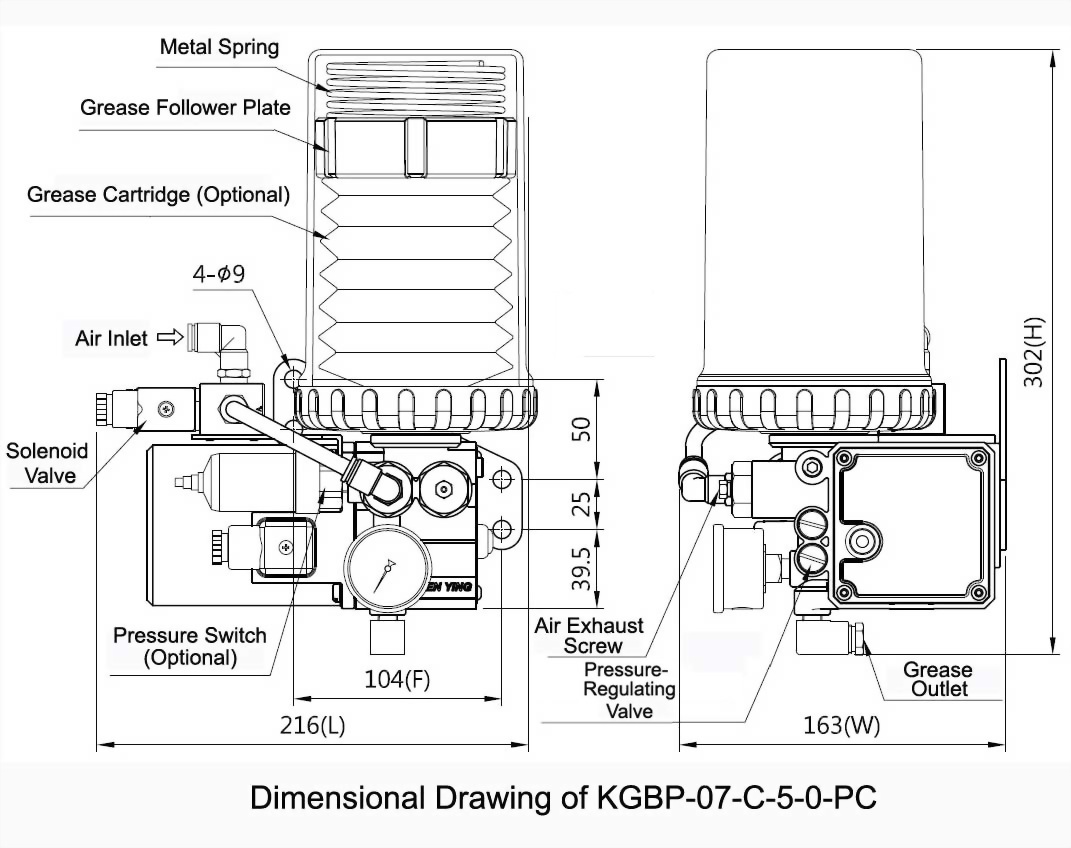

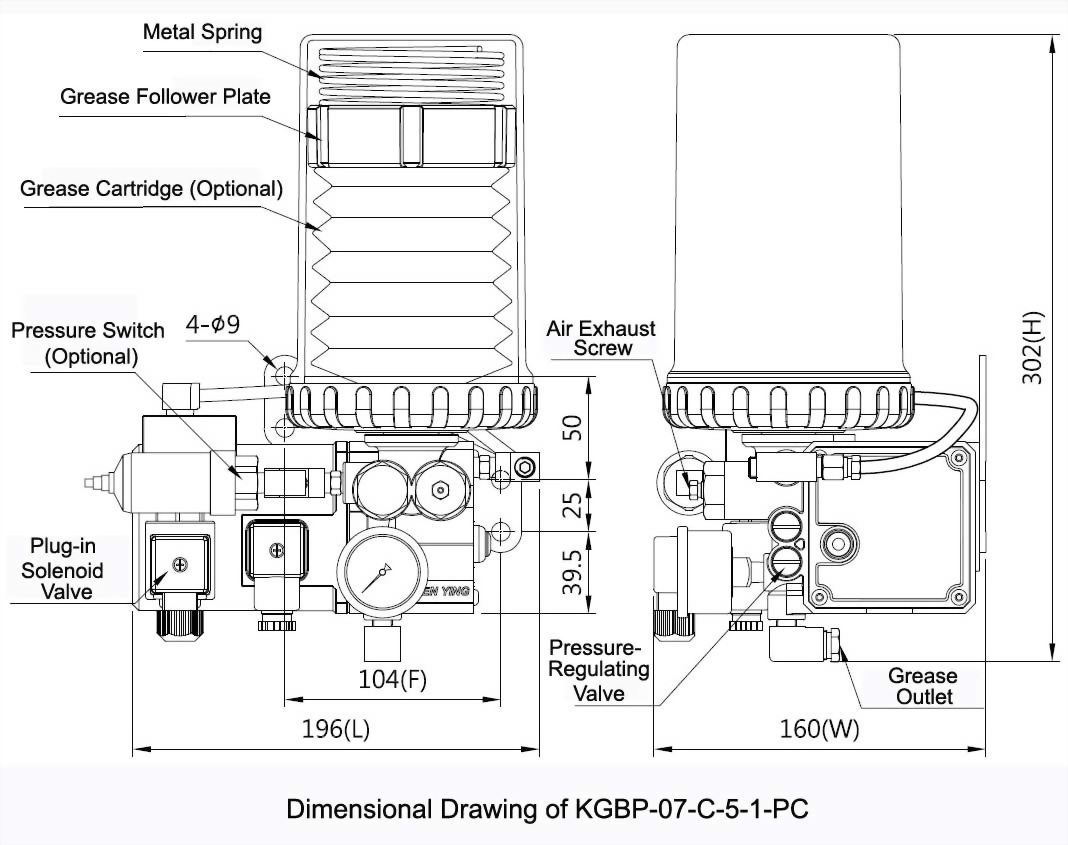

◆ Dimensional Data

◆ Technical Data

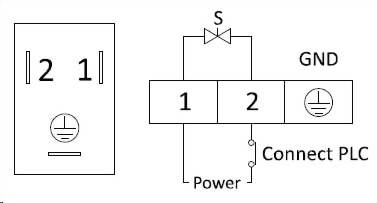

◆ Wiring Diagram

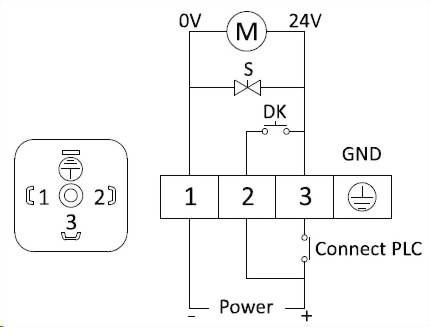

AC110V, AC220V, DC24V	Solenoid Valve	M = Motor GND = Ground DK = Feed-Grease Button S = Solenoid Valve ※0V and 24V markings are for DC24V only. ※The solenoid valve contact 1 and the motor contact 1 should be connected while the solenoid valve contact 2 and the motor contact 3 should be connected.

◆ Order Code

Model	Effective Capacity		Voltage		Discharge Bore		Pressure-Relief Type		Special Request
KGBP	07		C		5		0		※
	07	700cc Grease Cartridge	A	AC110V	1	Ø6	0	Pneumatic Type	PC	Add a NC Contact Pressure Switch
			C	AC220V	3	Ø6 W/Pressure Gauge	1	Electric Type	PO	Add a NO Contact Pressure Switch
			K	DC24V	4	Ø8			RC	Add a NC Contact Magnetic Level Switch
					5	Ø8 W/Pressure Gauge			RO	Add a NO Contact Magnetic Level Switch
					6	PT1/8
					7	PT1/8 W/Pressure Gauge

※Please refer to the 700cc Grease Cartridge catalog if you need to purchase one.

◆ The dimensional and technical data of 700cc Grease Cartridge is as described below

◆ Order Code

Order Code	Grease Type	Grease Viscosity	Minimum Order Quantity Requirement
I01D0021	Mobilux EP023	NLGI 000	--
I01D0012	Mobil EP0	NLGI 0	--
I01D0013	Mobil EP1	NLGI 1	100

◆ Instruction of Replacing 700cc Grease Cartridge

1		Hold the grease cartridge cover tightly and turn it anticlockwise to disassemble it from the grease cartridge cover base .
2		Take the grease cartridge cover out and put it aside.
3		Rotate the used grease cartridge anticlockwise to remove it from the grease cartridge cover base and dispose of it properly.
4		Before replacing a new grease cartridge, lightly squeeze out a little grease in the grease cartridge to prevent air from entering the lubricator.
5		Assemble the new grease cartridge to the grease cartridge cover base by turning it clockwise.
6		Assemble the grease cartridge cover back to the grease cartridge cover base.
7		Rotate the grease cartridge cover clockwise to assemble it with the grease cartridge cover base to complete the replacement of the grease cartridge.
