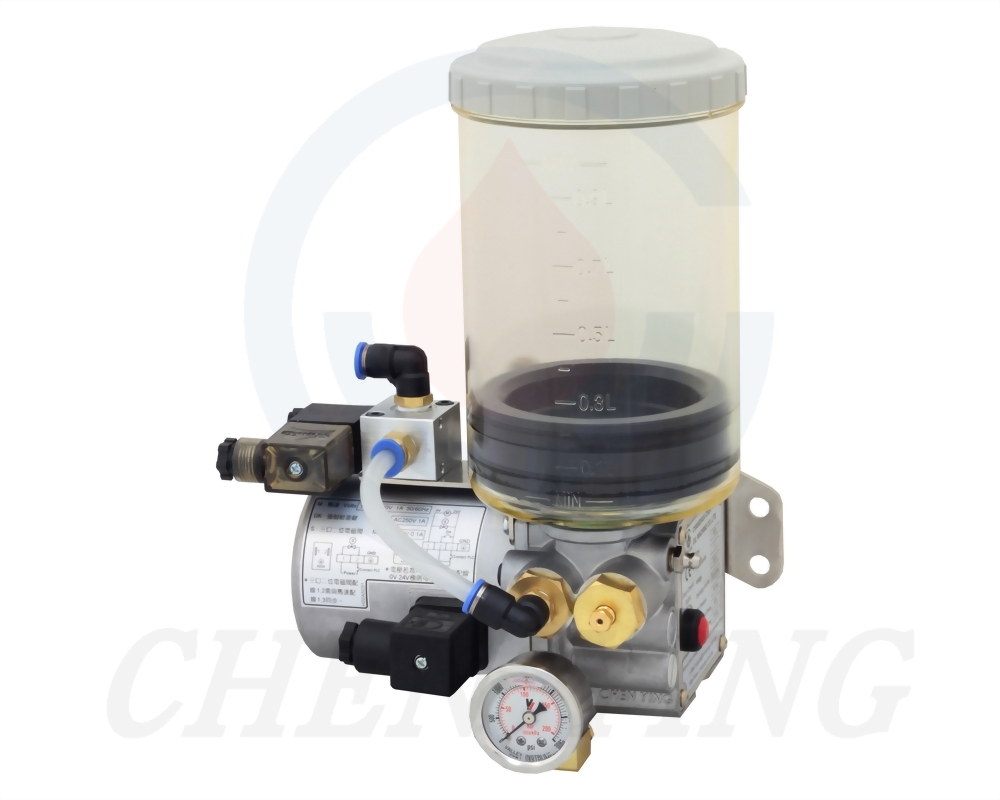

KGB Pressure-Relief Type Grease Electric/Pneumatic Lubricator

1. The operation and interval time of KGB and KGBP are controlled by PLC. KGB and KGBP require 4.5-8kgf/cm² pneumatic pressure supply for the pressure-relief function. Electric type is also available on request.
2. KGB and KGBP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
3. KGB and KGBP have pressure gauges that enable the user to check the operating pressure easily.
4. KGB and KGBP have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
5. AC110V and AC220V models have thermal controls that will shut down the motors for about 5 minutes when the motor is overheated.
6. A 60kgf/cm² socket pressure switch can be added to KGB and KGBP on request to detect the operating pressure automatically.
7. A magnetic level switch can be added to KGB and KGBP on request to detect the grease level automatically.
8. For KGB, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
9. KGBP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGBP-07 with a new grease cartridge. Standard KGBP-07 does not include a grease cartridge but is available upon request.

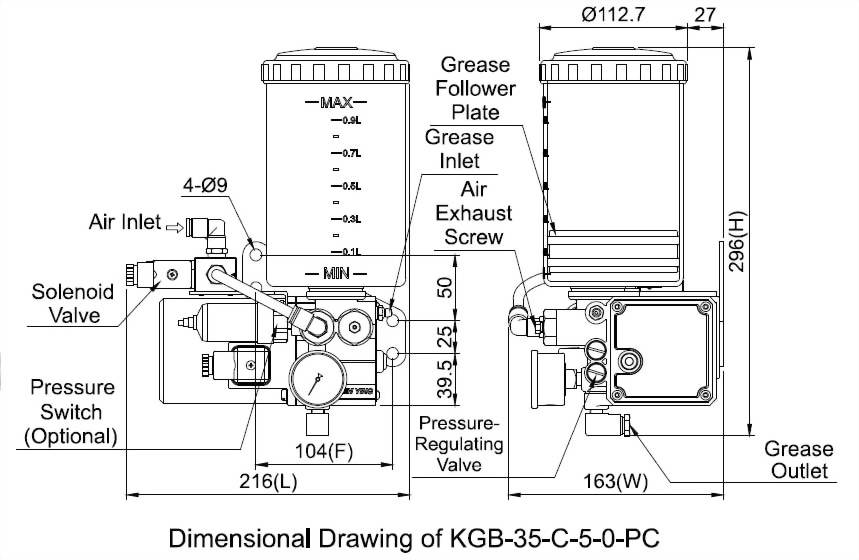

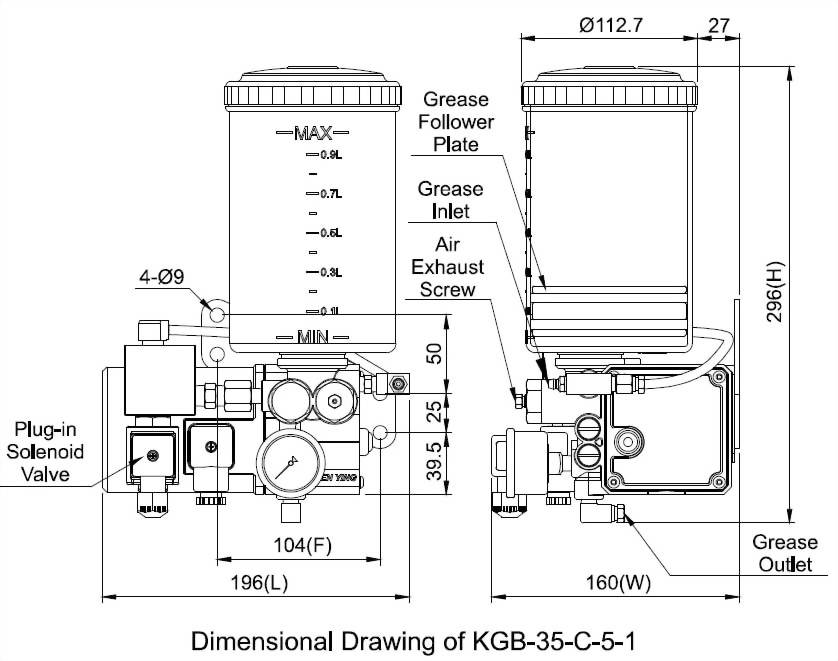

◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

AC110V, AC220V, DC24V	Solenoid Valve	M =  Motor GND   =  Ground DK    =  Feed-Grease Button S   =  Solenoid Valve ※0V and 24V markings are for DC24V only. ※The solenoid valve contact 1 and the motor contact 1 should be connected while the solenoid valve contact 2 and the motor contact 3 should be connected.

◆ Order Code
