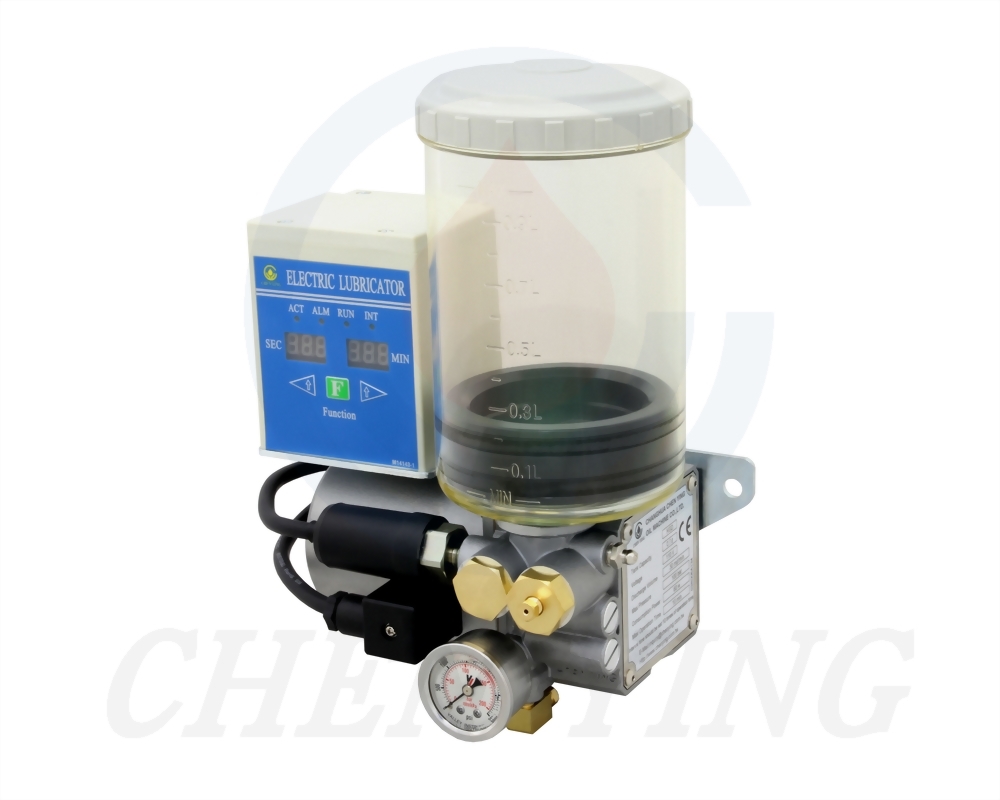

KGN Resistance Type Grease Electric Lubricator

1. KGN and KGNP have timers that control the operation and interval time.
2. There are four indicators on the control box, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
3. KGN and KGNP have pressure gauges that enable the users to check the operating pressure easily.
4. KGN and KGNP have feed-grease buttons (F button), which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
5. KGN and KGNP have thermal controls that shut down the motor for about 5 minutes when the motor is overheated.
6. A 60kgf/cm² socket pressure switch can be added to KGN and KGNP on request to detect the operating pressure automatically.
7. A magnetic level switch can be added to KGN and KGNP on request to detect the grease level automatically.
8. The lubricator, which adds a pressure switch or a magnetic level switch, has abnormal pressure or low grease level; the build-in buzzer of the control box will send an alarm sound.
9. Please refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
10. KGNP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGNP-07 with a new grease cartridge. Standard KGCP-07 does not include a grease cartridge but is available upon request.

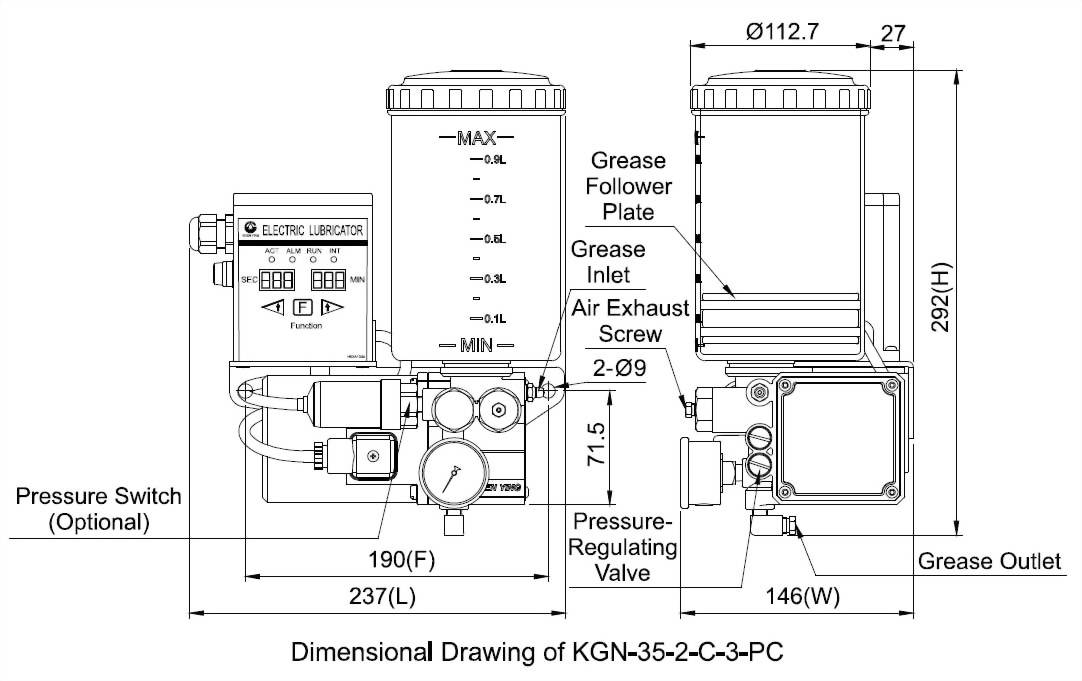

◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

◆ Order Code
