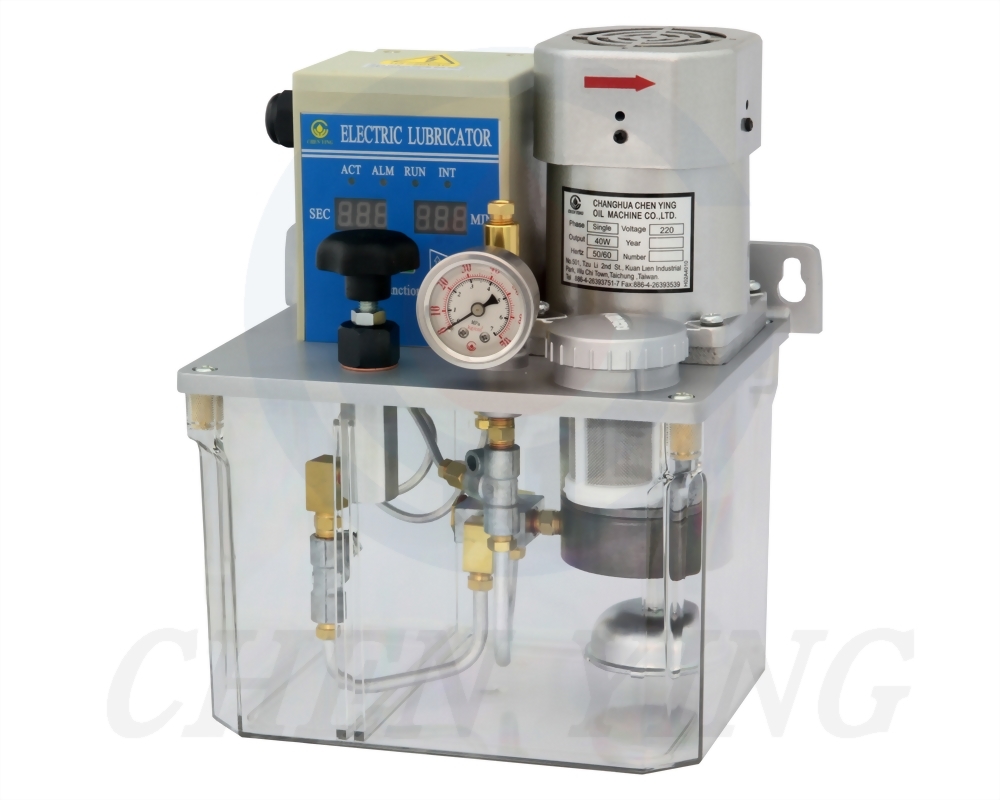

KGNVB Pressure-Relief Type Fluid Grease Electric Lubricator
-
Automatic Lubrication Controlled by Timer
- KGNVB has a timer that controls its operation and interval time.
- KGNVB has to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
- There are four indicators on the control box, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
-
KGNVB has a pressure-regulating valve that enables the user to adjust the operating pressure. KGNVB also has a feed-grease button (F button), which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
- 20kgf/cm2 socket pressure switch can be added to KGNVB on request to detect the operating pressure automatically.
- The gear pump of KGNVB is made of special aluminum alloy and assembled with a 40W induction motor to provide stable output pressure, low operating noise, and long service life.
- The induction motor has a fan that can reduce the temperature and prolong the service life of KGNVB.

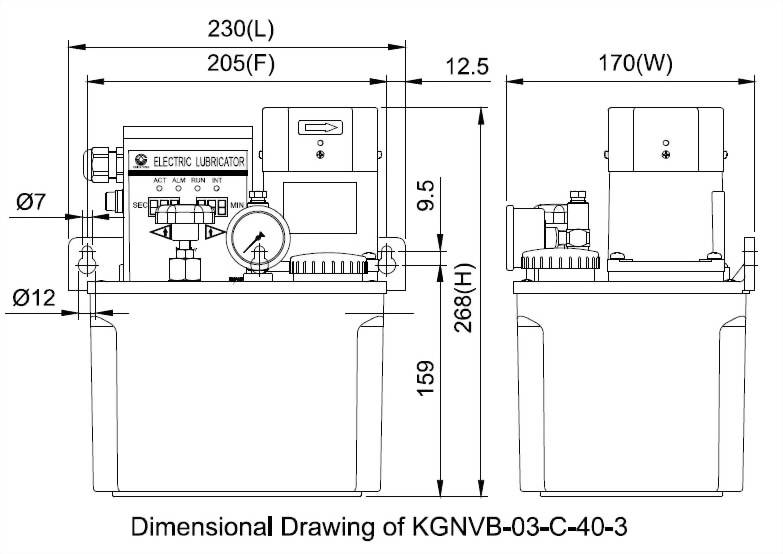

◆ Dimensional Data
Tank
Capacity
Tank Material
Length (mm)
Width (mm)
Height (mm)
Fixed Hole
Distance (mm)
N.W. (kg)
3L
Resin
230
170
268
205
5.59
4L
Resin
288
162
278
250
6.09
4L
Alum.
297
170
276
95x280
6.94
8L
Iron
355
201
299
95x338
10.09
◆ Technical Data
Operation
Time
1-999 sec.
Interval Time
1-999 min.
Voltage
AC110V
AC220V
Ampere
0.75A
0.50A
Motor Power
40W
Hertz
50/60Hz Compatible
Max.
Discharge Volume
170cc/min
Max. Operating Pressure
40kgf/c㎡
Discharge Bore
Ø6
Pressure Switch
Optional (NC Contact)
Suitable Viscosity
NLGI 000
◆ Wiring Diagram
Abnormal Output
Ground
Power
NO(A)
NC(B)
COM
GND(P.E)
POWER
⊕
⊕
⊕
⊕
⊕
⊕
◆ Order Code
Model
Tank Capacity (Material)
Voltage
Motor Power
Discharge Bore
Special Request
KGNVB
03
C
40
3
※
03
3L (Resin)
A
AC110V
40
40W
1
Ø6
PC
Add a NC Contact
Pressure Switch
04
4L (Resin)
C
AC220V
3
Ø6 W/Pressure Gauge
05
4L (Alum.)
08
8L (Iron)
