CENA Resistance Type Oil Electric Lubricator

  • Proportional Oil Quantity
  • Automatic Lubrication Controlled by Timer

※ Please select the specifications you need.：

*Model
*Tank Capacity (Material)
*ACT x INT
*Voltage
*Motor Power
*Discharge Bore
Special Request
Remarks
  1. CENA has a timer that controls its operation and interval time. The control box has a built-in buzzer that sends an alarm sound when the oil level is low. The control box also has four indicators, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
  2. CENA can memorize the set value of operation time and interval time.
  3. CENA has a pressure gauge that enables the user to check the operating pressure easily.
  4. CENA has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
  5. CENA has a pressure-regulating valve that enables the user to adjust the operating pressure.
  6. CENA has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
  7. CENA with 3L above tank can add a 1kgf/cm2 socket pressure switch to detect the operating pressure automatically, which sends signals when the pressure is below the preset value.
  8. The gear pump of CENA is made of special aluminum alloy and assembled with the induction motor to provide stable output pressure, low operating noise, and long service life. It meets the requirements of most large machines.

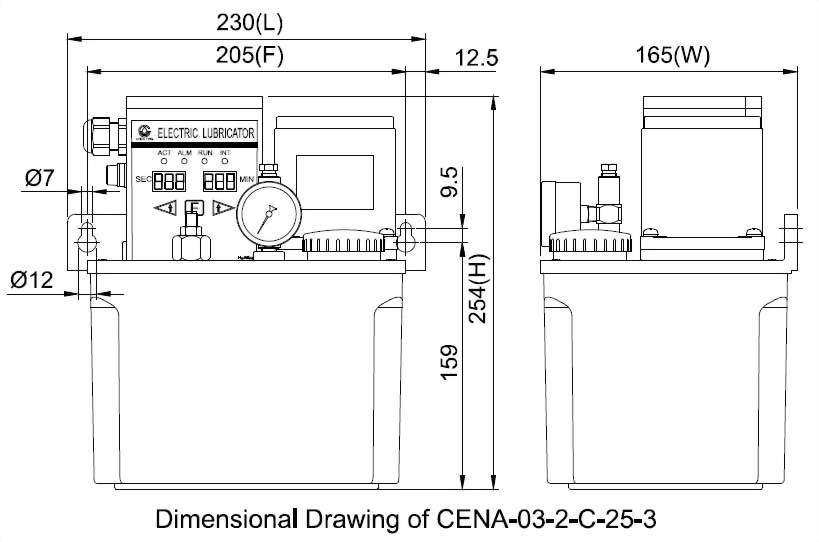

cena Dimensional Drawing


◆ Dimensional Data

Motor Power Tank Capacity Tank Material Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
25W 2L Aluminum 222 162 245 95x200 5.70
3L Resin 230 165 254 205 4.80
4L Resin 277 162 266 250 5.20
4L Aluminum 297 170 264 95x280 6.10
8L Iron 355 201 285 95x338 9.40
60W 4L Aluminum 297 170 311 95x280 7.70
8L Iron 355 201 331 95x338 10.45

◆ Technical Data

Operation Time 1-999 sec
Interval Time 1-999 sec, 1-999 min
Motor Power 25W 60W
Voltage 110V 220V 110V 220V
Ampere 0.6A 0.3A 1.2A 0.6A
Max. Discharge Volume 250cc/min 500cc/min
Max. Operating Pressure 15kgf/c㎡ 30kgf/c㎡
Hertz 50/60Hz Compatible
Discharge Bore Ø4 , Ø6
Float Switch NC Contact
Pressure Switch Optional (NC Contact)
Suitable Viscosity Oil, 32-68 cSt@40oC

◆ Wiring Diagram

Abnormal Output Ground Power
NO(A) NC(B) COM GND(P.E) POWER
⊕ ⊕ ⊕ ⊕ ⊕ ⊕

◆ Order Code

Model Tank Capacity(Material) ACT x INT Voltage Motor Power Discharge Bore Special Request
CENA 03 2 C 25 3 ※
02 2L (Alum.) 1 sec x sec A 110V 25 25W 0 Ø4 B Add a Larger Buzzer
03 3L (Resin) 2 sec x min C 220V 60 60W (Available for 4L metal tank and above only) 1 Ø6 PC Add a NC Contact Pressure Switch (Available for 3L and above tanks only)
04 4L (Resin) 90 90W (Available for 4L metal tank and above only) 2 Ø4 W/Pressure Gauge
05 4L (Alum.) 3 Ø6 W/Pressure Gauge
08 8L (Iron)
