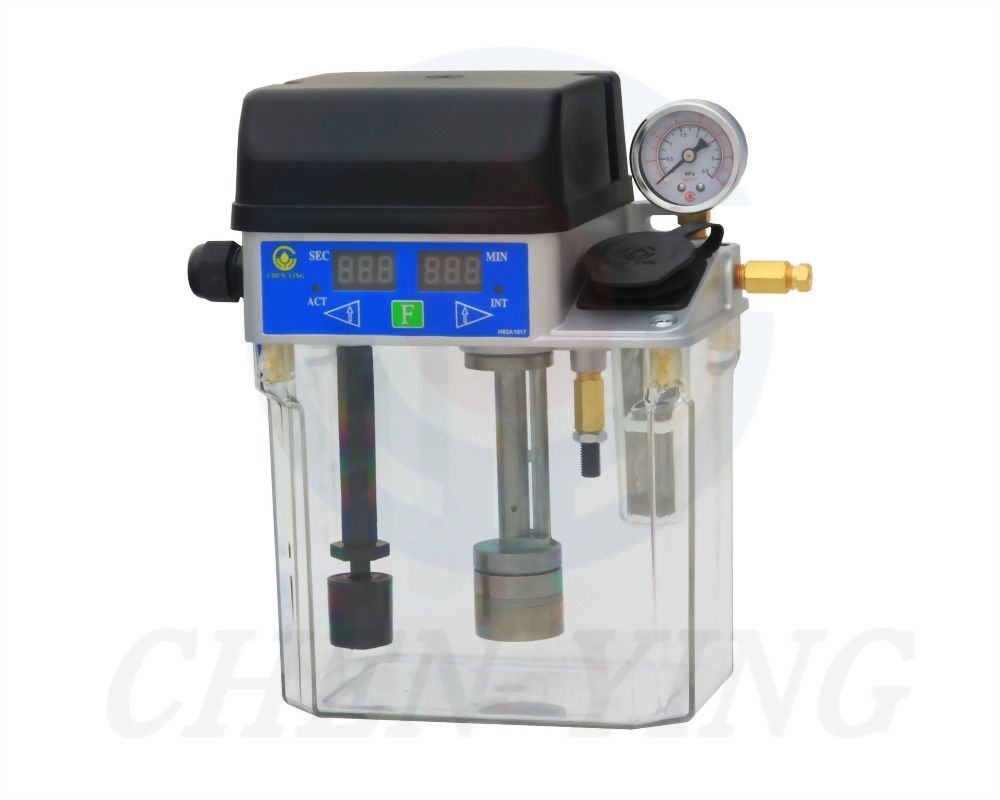

CESG02 Resistance Type Oil Electric Lubricator
- Proportional Oil Quantity
- Automatic Lubrication Controlled by Timer
-
Two Operation Modes Available
- CESG02 has a timer that controls its operation and interval time. The control box has a built-in buzzer that sends an alarm sound when the oil level is low. The control box also has two indicators, operation (ACT), and interval (INT).
- CESG02 can memorize the set value of operation time and interval time.
-
There are two operation modes after the power of CESG02 is on. The standard mode is turn-on-feeding.
● Turn-on-feeding: Operation time starts first after the power is on.
● Turn-on-interval: Interval time starts first after the power is on. - Turn-on-interval model has a memory function. If the power is suddenly off during the interval time, CESG02 will continue to operate from the remaining interval time after restarting, which can effectively avoid over-lubrication.
- CESG02 has a pressure gauge that enables the user to check the operating pressure easily.
- CESG02 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
- CESG02 has a feed-oil button (F button), which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
- CESG02 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.
-
A 1kgf/cm2 socket pressure switch can be added to CESG02 on request to detect the operating pressure automatically.

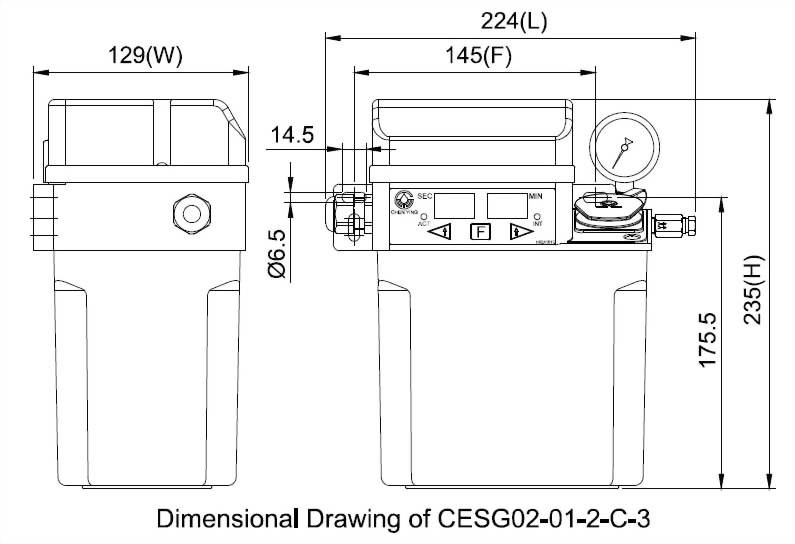

◆ Dimensional Data
Tank
Capacity
Tank Material
Length (mm)
Width (mm)
Height (mm)
Fixed Hole
Distance (mm)
N.W. (kg)
2L
Resin
224
129
235
145
2.80
2L
Alum.
224
150
225
95x200
3.90
3L
Resin
227
167
239
205
3.25
4L
Resin
277
162
250
250
3.70
4L
Alum.
297
170
244
95x280
4.70
8L
Iron
355
201
261
95x338
7.35
◆ Technical Data
Operation
Time
1-999 sec
Interval Time
1-999 min, 1-999 hour
Motor Power
25±3W
Voltage
110V
220V
Ampere
1.8A
0.9A
Hertz
60Hz
50Hz,
60Hz
Max. Discharge Volume
130cc/min,
260cc/min
Max. Operating Pressure
15kgf/c㎡
Discharge Bore
Ø4 ,
Ø6
Float Switch
NC Contact
Pressure Switch
Optional (NC Contact)
Suitable Viscosity
Oil, 32-68 cSt@40oC
◆ Wiring Diagram
Abnormal
Output
Ground
Power
NO(A)
NC(B)
COM
GND(P.E)
POWER
⊕
⊕
⊕
⊕
⊕
⊕
◆ Order Code
Model
Tank
Capacity(Material)
ACT x INT
Voltage
Discharge Bore
Special Request
CESG02
01
2
C
3
※
01
2L (Resin)
2
sec x min
A
110V, 60Hz
0
Ø4
2
Turn-on-Interval
Operation Mode
02
2L (Alum.)
3
sec x hour
B
220V, 50Hz
1
Ø6
B
Add
a Larger Buzzer
03
3L (Resin)
C
220V, 60Hz
2
Ø4 W/Pressure Gauge
PC
Add
a NC Contact Pressure Switch
04
4L (Resin)
3
Ø6 W/Pressure Gauge
Z
Increase
Discharge Volume to 260cc/min
05
4L (Alum.)
08
8L (Iron)
