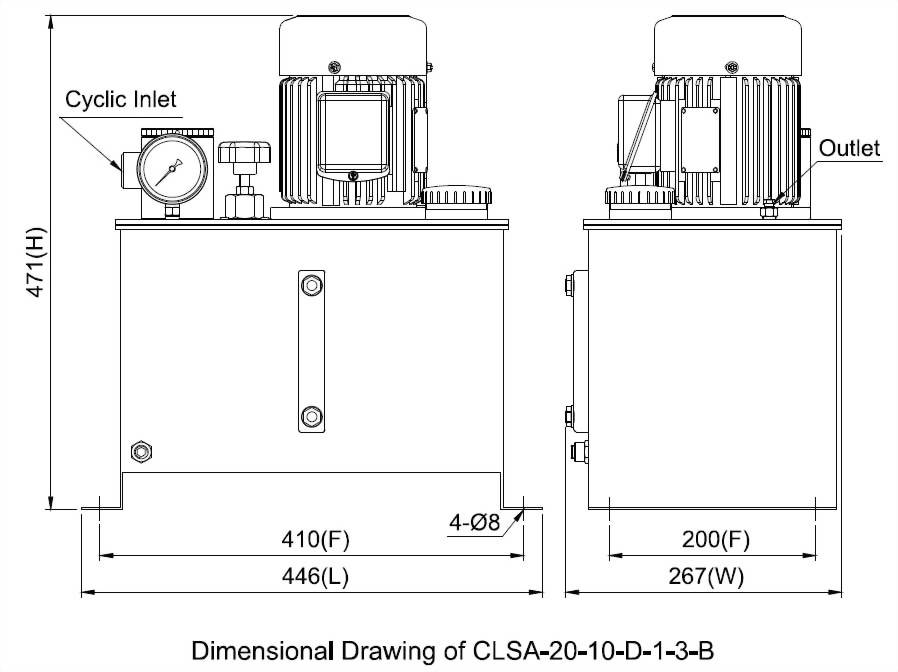

• CLSA-20 Type Standard Externals

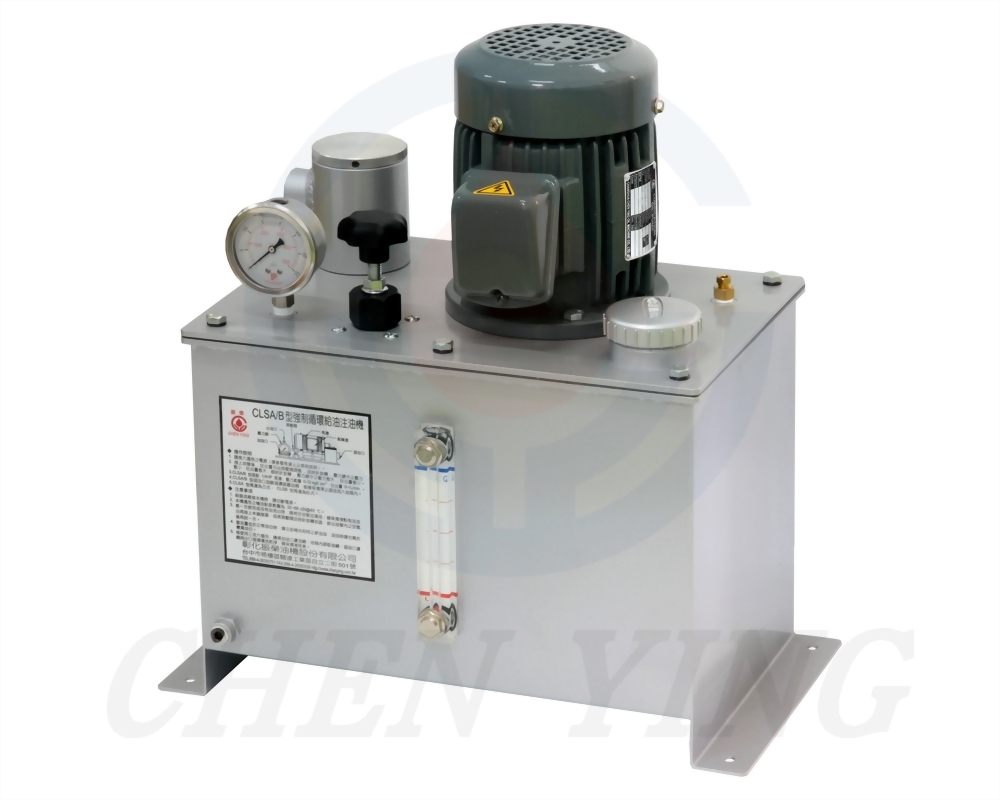

CLSA Type Circulating Electric Lubricator

  • Proportional Oil Quantity
  • Automatic Lubrication Controlled by PLC

Please select the specifications you need.:

*Model
*Tank Capacity
*Rotary Oil Pump
*Voltage
*Motor
*Discharge Bore PT1/4
*Cyclic Inlet
Special Request
Remarks
◆Features:

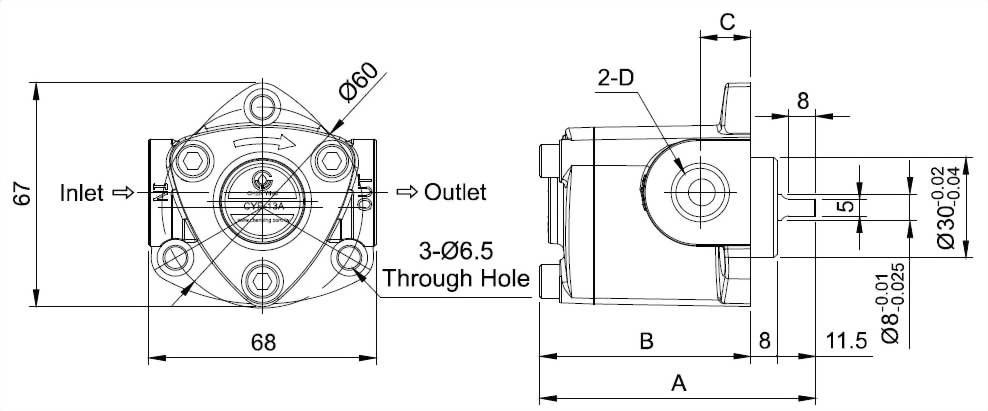

  1. The standard specification is assembled with a CYP-10A rotary oil pump that the flow rate is 1.1~1.4L/min. Other flow rates are available upon the request. Please refer the specification for details.
  2. CLSA Type is assembled with a 1/4HP Vertical motor and CLSB Type is assembled with a 1/4HP Horizontal Motor.
  3. The circulating type lubricator which means the oil flows out from the discharge outlet into the oil pipes to the lubricating points then continues flowing back into the oil tank through the cyclic inlet. The cyclic inlet has a magnetic filter which can prevent the impurities from getting into the oil tank in order to assure the oil clean.
  4. After installing and connecting the discharge outlet with piping, make sure the oil pipes are fulfilled with oil before starting a new circulating lubrication cycle.
  5. It has a high quality rotary oil pump that not only can provide steady output pressure and low noise, but also can assure the oil reaches each lubricating point. It is suitable for applying in the large machineries' demands.
  6. It has a pressure-regulating valve which can adjust the pressure and check the pressure easily from the pressure gauge.
  7. It has a float switch that can detect the oil level. It sends continuous signals automatically when the oil level is lower than the minimum.
  8. The standard specification of cyclic inlet is 3/4” but 1/2” is also available upon the request.
  9. A buzzer can be added on request. It alarms when the oil level is lower the minimum.

◆Application of Machines Equipment:
  1. CLSA and CLSB are suitable for the machines that require operating at high speed and large discharge volume.
  2. The circulating type lubricator can provide efficient cooling, lubrication and filtration that can reduce wear of the lubricating parts. It is suitable for the machines that require large discharge volume.
