KGH Resistance Type Grease Electric Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity
*Outlet Number
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of KGH are controlled by PLC. KGH also can operate continuously without interval time.
KGH has a worm gear motor that can reach the maximum operating pressure 300kgf/cm² and discharge grease steadily.
KGH has a stirrer inside its grease tank, enabling KGH to work with thicker grease viscosity up to NLGI 2.
Please refill grease from either of two grease inlets to prevent air and impurities from entering the grease tank.
KGH has a grease overflow hole that will discharge excess grease when filling above the maximum level.
KGH has an excess pressure valve that will release grease when the operating pressure reaches 250kgf/cm² to avoid the danger of excessive pressure.

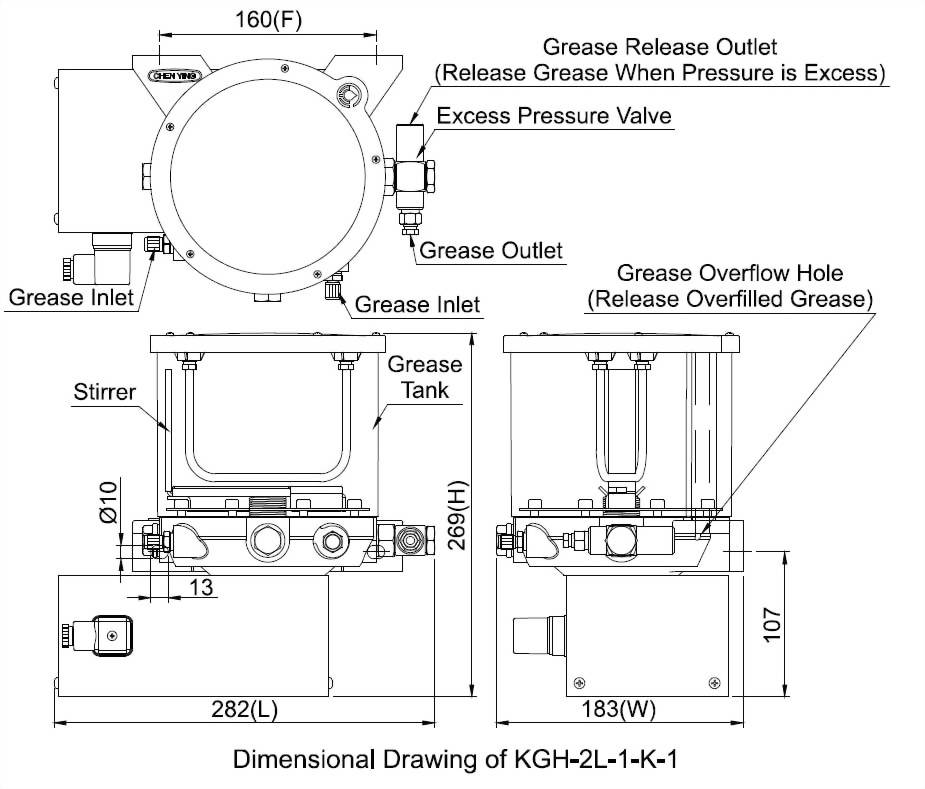

◆ Dimensional Data

Tank Capacity	Length (mm)	Width (mm)	Height (mm)	Fixed Hole Distance (mm)	N.W. (kg)
2000cc	282	183	269	160	8.34

◆ Technical Data

Voltage	AC110V	AC220V	DC24V
Hertz	50/60Hz Compatible		--
Motor Power	125W
Ampere	5A
Motor Wires	1 = Negative Terminal 2 = Positive Terminal
Max. Discharge Volume	About 5.5cc/min
Max. Operating Pressure	300kgf/c㎡
Discharge Bore	Ø4, Ø6, Ø8, Ø10
Suitable Viscosity	Grease, NLGI 000-2

◆ Wiring Diagram

M = Motor
GND = Ground

◆ Order Code

Model	Tank Capacity		Outlet Number		Voltage		Discharge Bore		Special Request
KGH	2L		1		K		1		※
	2L	2000cc	1	1 Outlet	A	Add a Transformer to Change to AC110V	0	Ø4 x PT1/4	G	Add a Pressure Gauge
			2	2 Outlets	C	Add a Transformer to Change to AC220V	1	Ø6 x PT1/4	KC	Add a PNP, NC Contact Capacitive Level Switch
			3	3 Outlets	K	DC24V	2	Ø8 x PT1/4	KO	Add a PNP, NO Contact Capacitive Level Switch
							3	Ø10 x PT1/4	T	Add a Digital Timer
