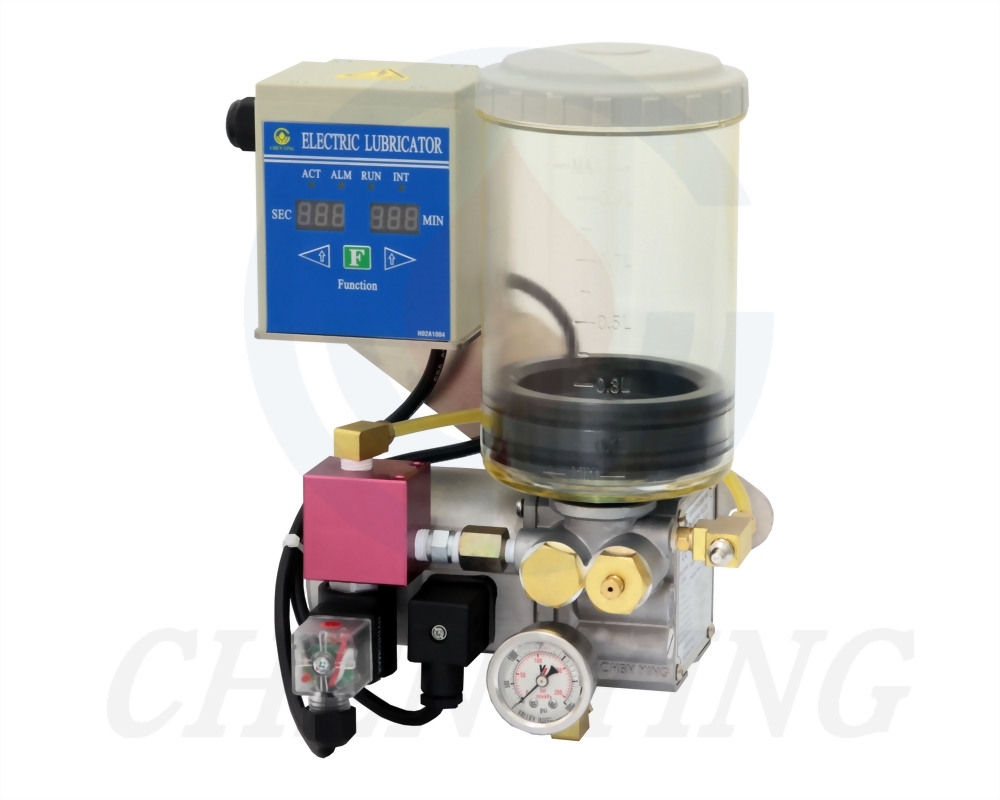

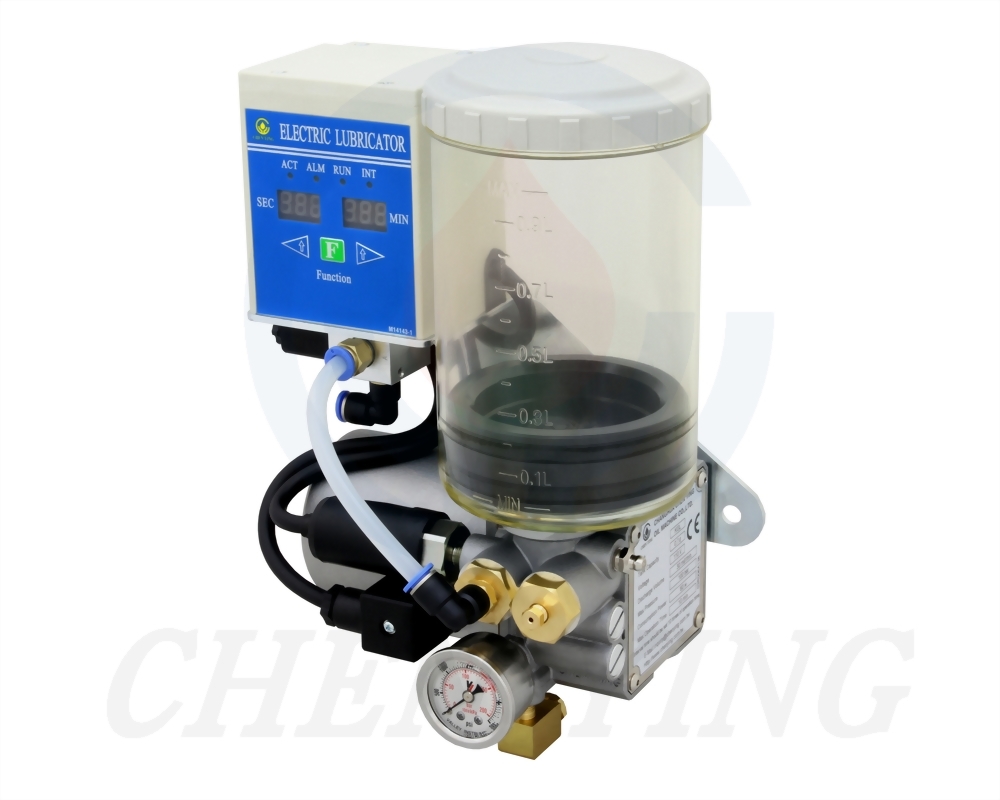

KGNB Pressure-Relief Type Grease Electric/Pneumatic Lubricator

1. The operation and interval time of KGNB and KGNBP are controlled by PLC. KGNB and KGNBP require a 4.5-8kgf/cm² pneumatic pressure supply for the pressure-relief function. Electric type is also available on request.
2. KGNB and KGNBP have to work with CFB volume type grease distributors to deliver the metered quantity of grease to the lubrication points.
3. There are four indicators on the control box, operation (ACT), alarm (ALM), immediate lubrication (RUN), and interval (INT).
4. KGNB and KGNBP have pressure gauges that enable the users to check the operating pressure easily.
5. KGNB and KGNBP have feed-grease buttons (F button), which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
6. KGNB and KGNBP have thermal controls that will shut down the motor for about 5 minutes when the motor is overheated.
7. A 60kgf/cm² socket pressure switch can be added to KGNB and KGNBP on request to detect the operating pressure automatically.
8. A magnetic level switch can be added to KGNB and KGNBP on request to detect the grease level automatically.
9. The lubricator, which adds a pressure switch or a magnetic level switch, has abnormal pressure or low grease level; the built-in buzzer of the control box will send an alarm sound.
10. For KGNB, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
11. KGNBP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGNBP-07 with a new grease cartridge. Standard KGNBP-07 does not include a grease cartridge but is available upon request.


◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

◆ Order Code
