• KSC-30-C-3
  • KSC-30-C-3-RC

KSC Resistance Type Grease Electric Lubricator

  • Proportional Grease Quantity
  • Automatic Lubrication Controlled by PLC

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Voltage
*Discharge Bore
Special Request
Remarks
  1. The operation and interval time of KSC are controlled by PLC.
  2. KSC has a pressure gauge that enables the user to check the operating pressure easily.
  3. A magnetic level switch can be added to KSC on request to detect the grease level automatically.
  4. Please refill grease from the grease inlet of KSC to prevent air and impurities from entering the grease tank.

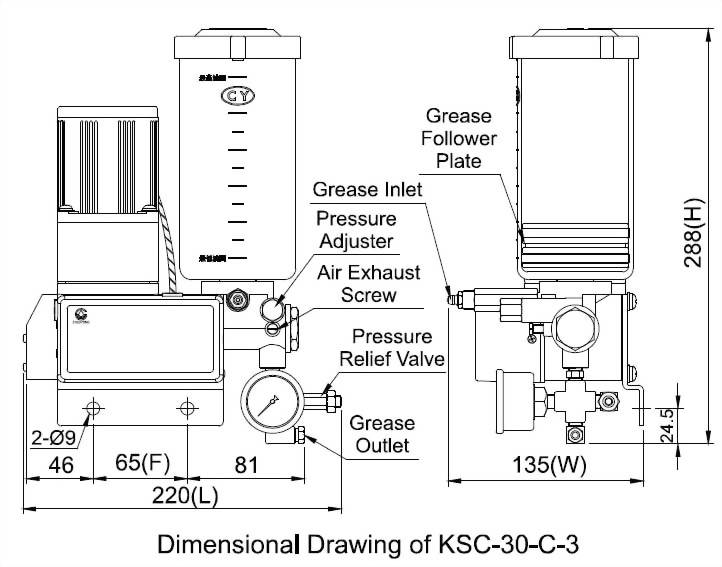

ksc Dimensional Drawing

◆ Dimensional Data

Model Tank Capacity Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
KSC-30 600cc 220 135 288 65 3.68
KSC-35 1000cc 220 161 301 4.19
KSC-40 800cc 220 135 342 3.71
KSC-50 2000cc 220 161 386 4.36

◆ Technical Data

Voltage AC110V AC220V DC24V
Motor Power 15W 15W 20W
Ampere 0.5A 0.2A 0.4A
Hertz 50/60Hz Compatible --
Max. Discharge Volume 15cc/min
Max. Operating Pressure 150kgf/c㎡
Discharge Bore Ø4, Ø6, Ø8, PT1/8
Magnetic Level Switch Optional (NC or NO Contact)
Suitable Viscosity Grease, NLGI 000-0

◆ Wiring Diagram

AC110V, AC220V DC24V M =  Motor
ksc-AC110V-AC220V Wiring Diagram width=
 ksc-DC24V Wiring Diagram width=



◆ Order Code

Model Tank Capacity Voltage Discharge Bore Special Request
KSC 30 C 3 ※
30 600cc A AC110V 0 Ø4 RC Add a NC Contact Magnetic Level Switch
35 1000cc C AC220V 1 Ø6 RO Add a NO Contact Magnetic Level Switch
40 800cc K DC24V 2 Ø4 W/Pressure Gauge
50 2000cc 3 Ø6 W/Pressure Gauge
4 Ø8
5 Ø8 W/Pressure Gauge
6 PT1/8
7 PT1/8 W/Pressure Gauge
