Pneumatic Resistance Oil Lubricator: PNA

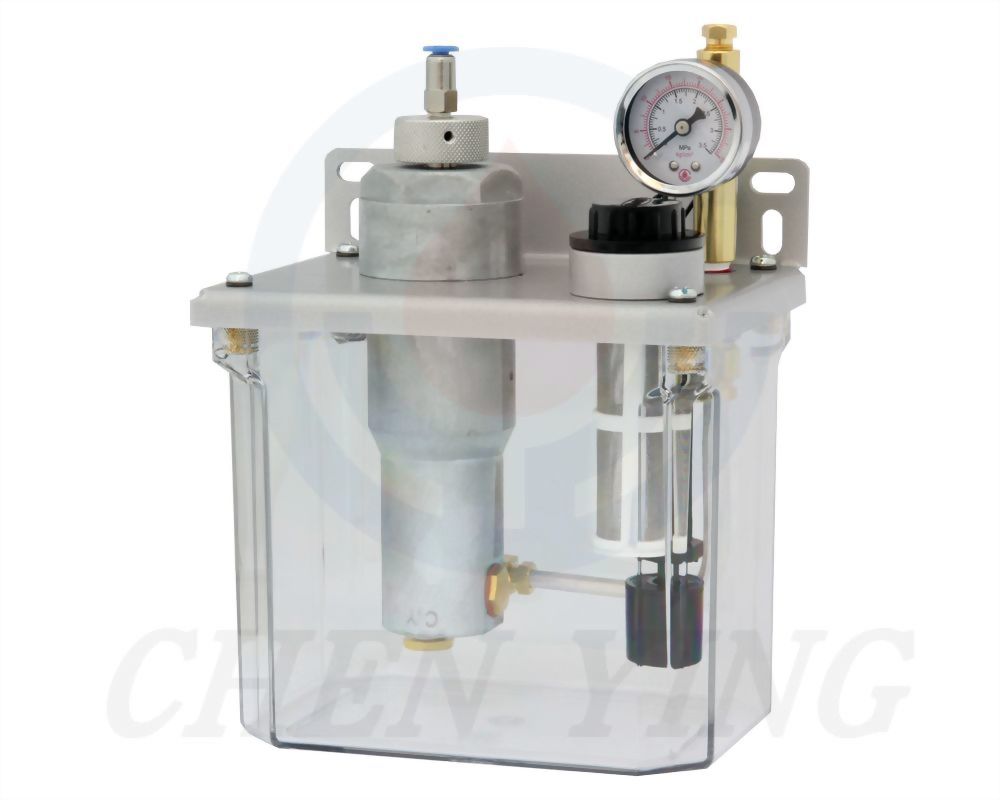

PNA Resistance Type Pneumatic Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity (Material)
*Discharge Bore
*Air Inlet
Special Request
Remarks

Q'ty :

PNA is actuated pneumatically by a solenoid valve to discharge oil intermittently. The pneumatic pressure supply controls the output pressure of PNA.
PNA requires a 4-8 kgf/cm² pneumatic pressure supply and 5 seconds above the ON/OFF time of the solenoid valve to work functionally.
PNA has a pressure gauge that enables the user to check the operating pressure easily.
PNA has an NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
PNA has an oil volume adjuster that enables the user to adjust the discharge volume upon demand.

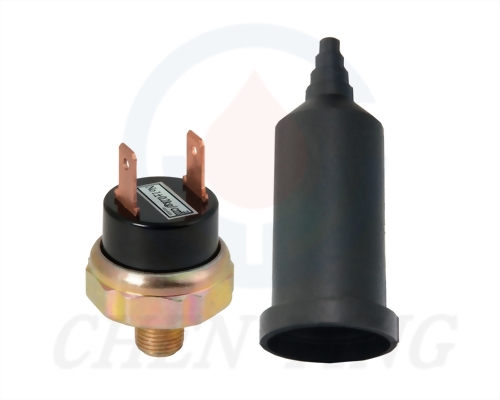

A 1kgf/cm² socket pressure switch can be added to PNA on request to detect the operating pressure automatically.
A magnetic filter and a partition can be added to PNA on request to filter the oil that returns to the oil tank through the cyclic inlet.
● 3L oil tank and above can add a magnetic filter.

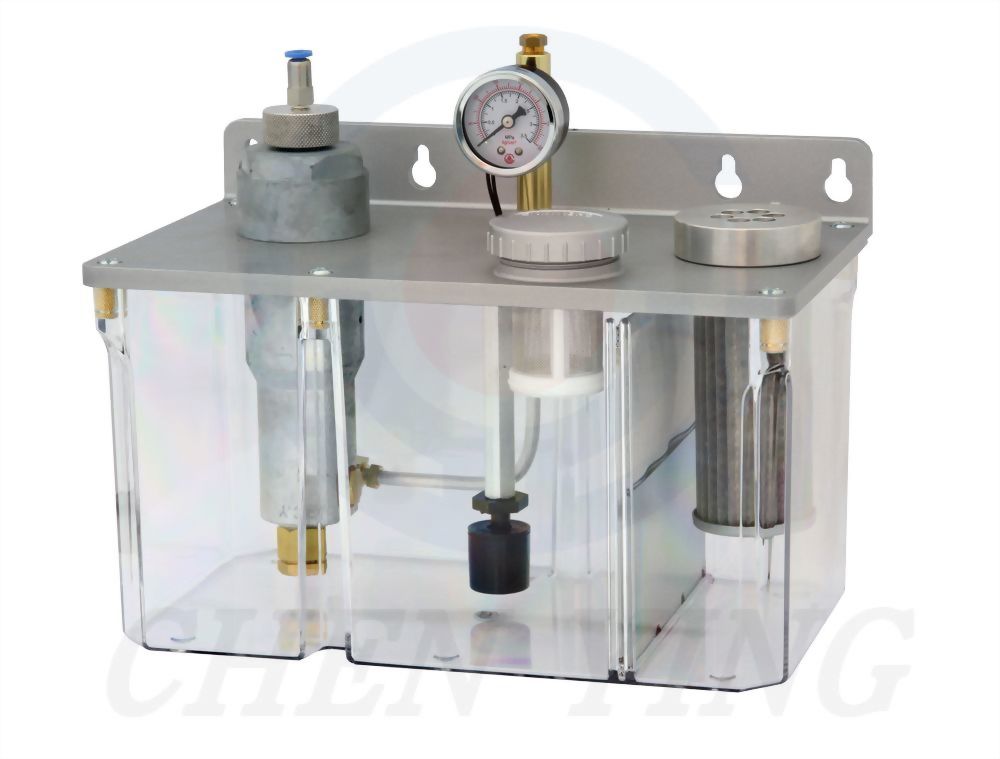

● 3L, 4L resin oil tanks, and 8L iron oil tanks can add a partition.

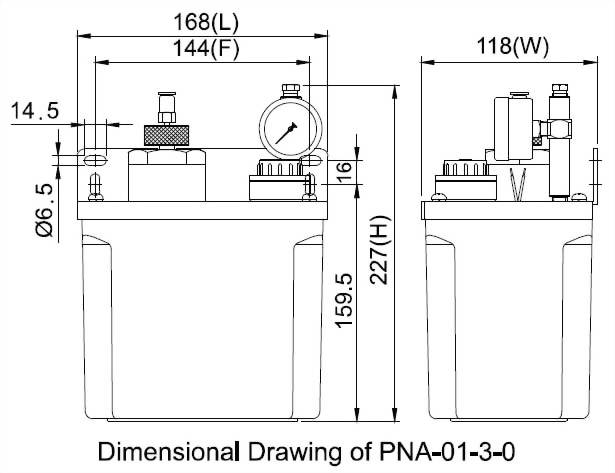

◆ Dimensional Data

◆ Technical Data

Pneumatic Pressure (kgf/c㎡)	4	5	6	7	8
Operating Pressure (kgf/c㎡)	14	18	23	28	33
Discharge Volume	0-8 cc/stroke (Adjustable)
Air Inlet	Ø4 , Ø6 (Inner Thread M5)
Discharge Bore	Ø4 , Ø6
Float Switch	NC Contact (NO Contact on request)
Pressure Switch	Optional (NC or NO Contact)
Suitable Viscosity	Oil, 10-220 cSt@40^oC

◆ Order Code

Model	Tank Capacity(Material)		Discharge Bore		Air Inlet		Special Request
PNA	01		3		0		※
	01	2L (Resin)	0	Ø4	0	Ø4	C	Add a Magnetic Filter (Available for 3L and above tanks only)
	02	2L (Alum.)	1	Ø6	1	Ø6	D	Add a Partition (Available for 3L, 4L resin tanks, and 8L iron tanks only)
	03	3L (Resin)	2	Ø4 W/Pressure Gauge			PC	Add a NC Contact Pressure Switch
	04	4L (Resin)	3	Ø6 W/Pressure Gauge			PO	Add a NO Contact Pressure Switch
	05	4L (Alum.)					SO	NO Contact Float Switch
	08	8L (Iron)
