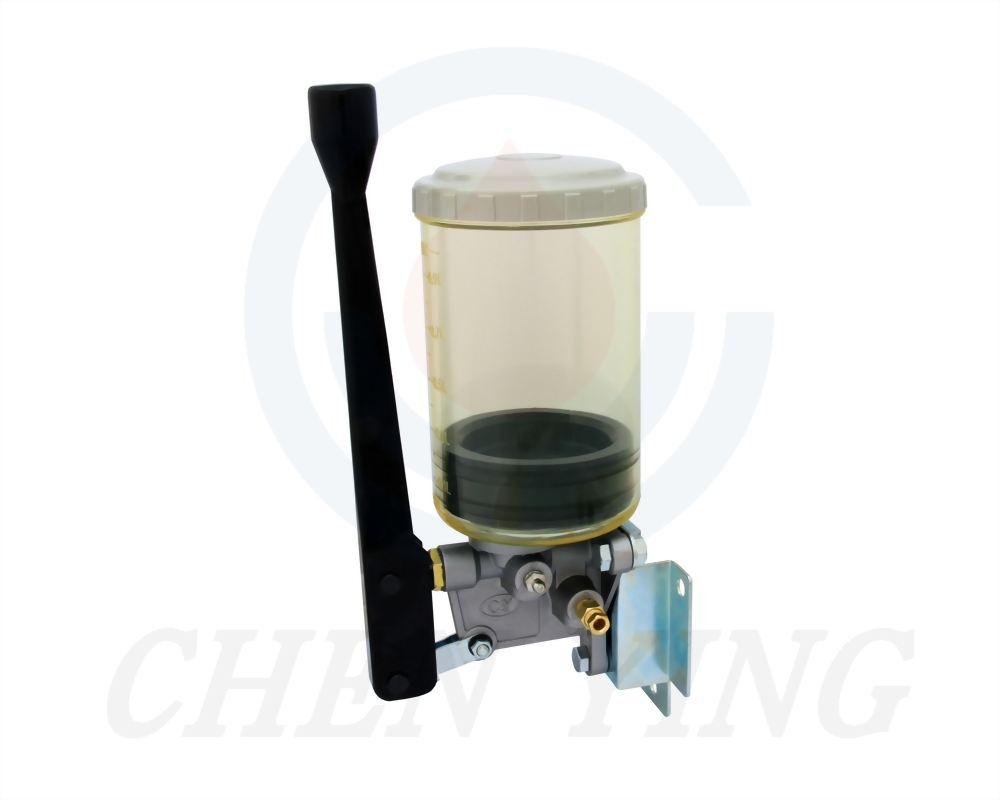

• CLHA-35-R-D-1

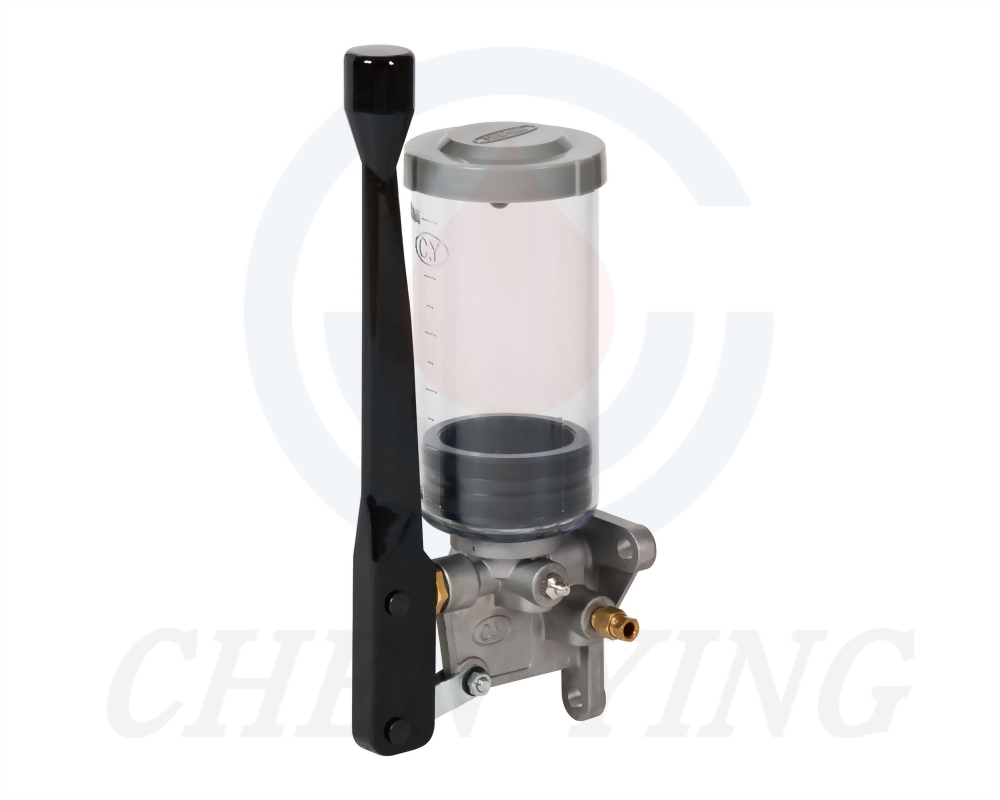

  • CLHA-20-R-D-1

CLHA Resistance Type Grease Manual Lubricator

  • Proportional Grease Quantity
  • Manual Lubrication

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Outlet Side
*Outlet Adapter
*Discharge Bore
Remarks
  1. CLHA discharges grease whenever its handle is pulled and pushed back.
  2. CLHA has a grease follower plate tightly fit with the grease tank that pushes grease downwards while discharging so no grease remains inside the tank.
  3. The outlet of CLHA can be on either the right side or the left side of the handle. A dual-outlet model is also available for selection.
  4. CLHA is suitable for machines that do not require continuous lubrication, such as press machines and woodworking machines.

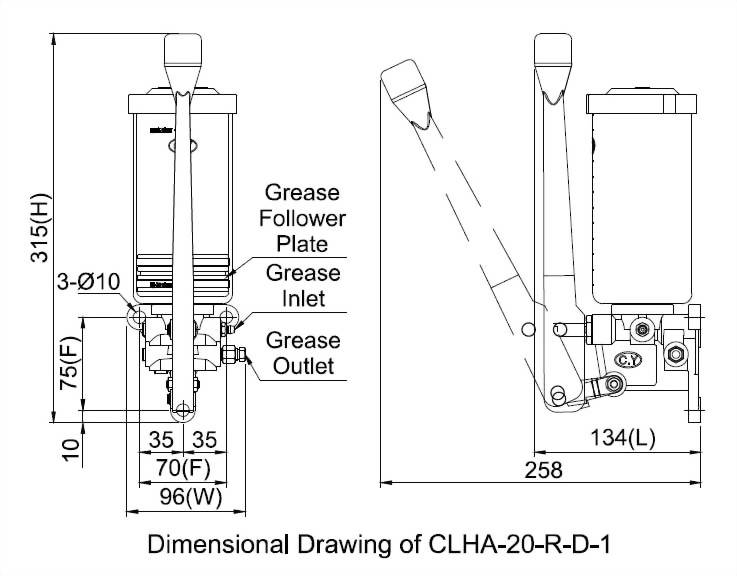

clha Dimensional Drawing


◆ Technical Data & Dimensional Data

Model Tank Capacity Fixed Bracket Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) Max. Discharge Volume Max. Operating Pressure Discharge Bore Suitable Viscosity N.W. (kg)
CLHA-10 300cc  X 134 96 315 70x75 2cc/stroke 100 kgf/c㎡
Ø4
Ø6
Ø8
PT1/8
Grease NLGI 000-0 1.08
CLHA-20 600cc  X 134 96 315 1.11
CLHA-35 1000cc  O 166 113 340 1.61
CLHA-40 800cc  X 134 96 325 1.14
CLHA-50 2000cc  O 166 130 391 2.09

◆ Order Code

Model Tank Capacity Outlet Side Outlet Adapter Discharge Bore
CLHA 20 R D 1
10 300cc L Left Outlet D Straight Adapter 0 Ø4
20 600cc R Right Outlet H Elbow Adapter 1 Ø6
35 1000cc D Dual Outlets 2 Ø4 W/Pressure Gauge
40 800cc 3 Ø6 W/Pressure Gauge
50 2000cc 4 Ø8
5 Ø8 W/Pressure Gauge
6 PT1/8
7 PT1/8 W/Pressure Gauge
