• CLHP-40-R-D-1

CLHP Resistance Type Grease Manual Lubricator with Metal Spring

  • Proportional Grease Quantity
  • Manual Lubrication

※ Please select the specifications you need.：

*Model
*Effective Capacity
*Outlet Side
*Outlet Adapter
*Discharge Bore
Remarks
  1. CLHP discharges grease whenever its handle is pulled and pushed back.
  2. The outlet of CLHP can be on either the right side or the left side of the handle. A dual-outlet model is also available for selection.
  3. CLHP has a metal spring inside its grease tank, enabling it to work with thicker grease of the viscosity NLGI 1 and NLGI 2. Please refill grease from the grease inlet of CLHP to prevent air and impurities from entering the grease tank.
  4. CLHP has a grease follower plate tightly fit with the grease tank that pushes grease downwards while discharging so no grease remains inside the tank.
  5. CLHP is suitable for machines that do not require continuous lubrication, such as press machines and woodworking machines.

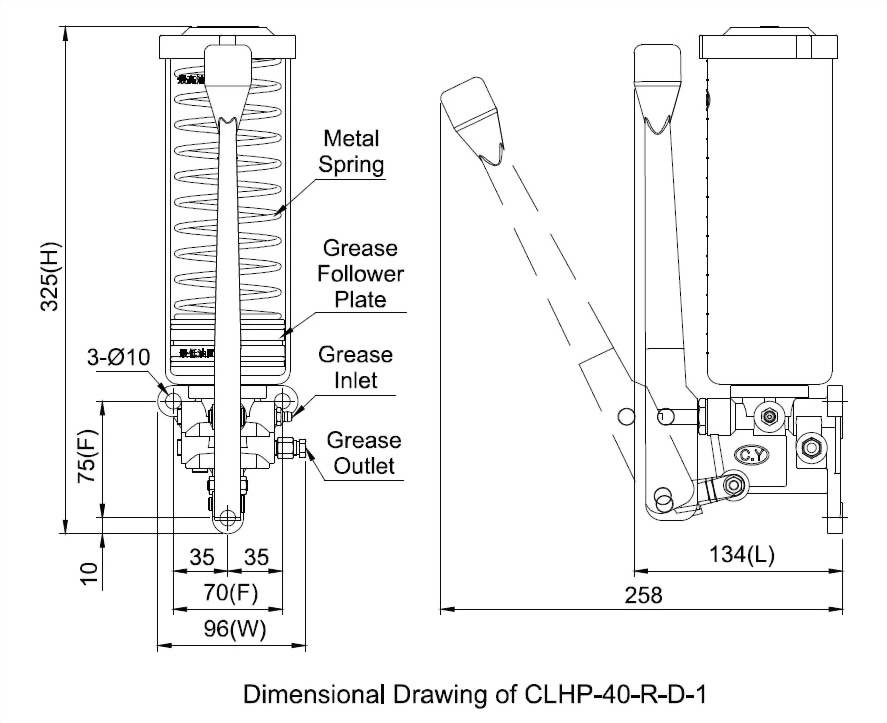

clhp Dimensional Drawing


◆ Technical Data & Dimensional Data

Model Effective Capacity Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) Max. Discharge Volume Max.Operating Pressure Discharge Bore Suitable Viscosity N.W. (kg)
CLHP-40 550cc 134 96 325 70x75 2cc/stroke 100 kgf/c㎡
Ø4
Ø6
Ø8
PT1/8
Grease NLGI 1, 2 1.50
CLHP-50 1500cc 166 130 391 2.82

◆ Order Code

Model Effective Capacity Outlet Side Outlet Adapter Discharge Bore
CLHP 40 R D 1
40 550cc L Left Outlet D Straight Adapter 0 Ø4
50 1500cc R Right Outlet H Elbow Adapter 1 Ø6
D Dual Outlets 2 Ø4 W/Pressure Gauge
3 Ø6 W/Pressure Gauge
4 Ø8
5 Ø8 W/Pressure Gauge
6 PT1/8
7 PT1/8 W/Pressure Gauge
