KGC Resistance Type Grease Electric Lubricator

1. The operation and interval time of KGC and KGCP are controlled by PLC.
2. KGC and KGCP have pressure gauges that enables the users to check the operating pressure easily.
3. 1φ110V, 1φ220V, and DC24V models have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
4. 1φ110V and 1φ220V models have thermal controls that will shut down the motors for about 5 minutes when the motors are overheated.
5. A 60kgf/cm² socket pressure switch can be added to KGC and KGCP on request to detect the operating pressure automatically.
6. A magnetic level switch can be added to KGC and KGCP on request to detect the grease level automatically.
7. For KGC and KGCP-50, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
8. KGCP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGCP-07 with a new grease cartridge. Standard KGCP-07 does not include a grease cartridge but is available upon request.

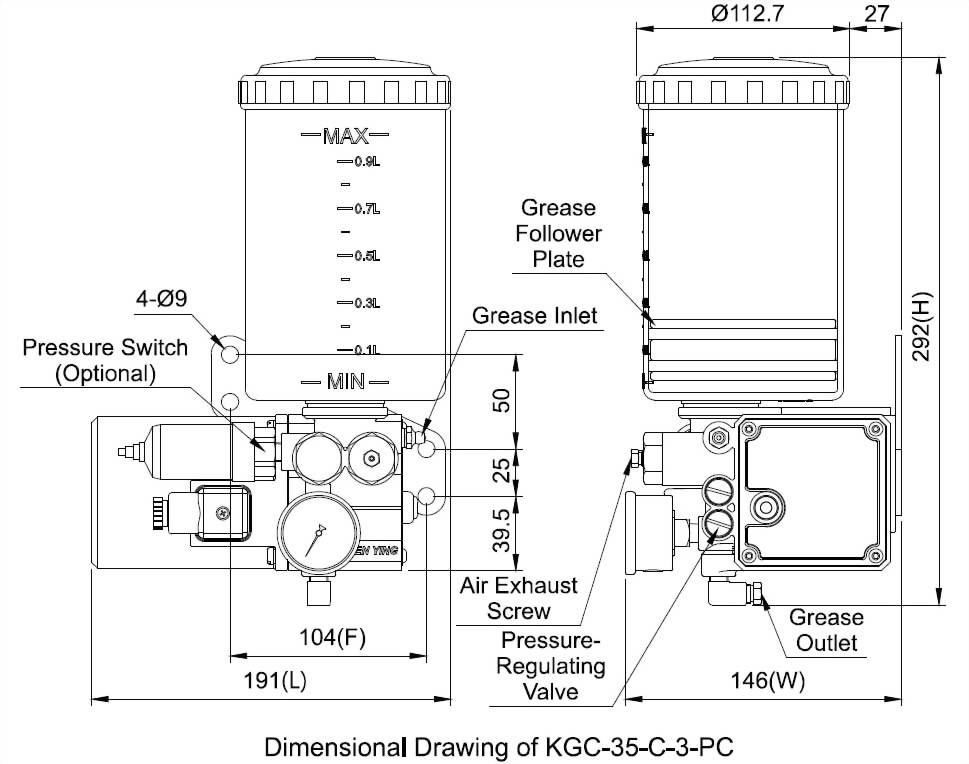

◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

M     =  Motor DK   = Feed-Grease Button GND =  Ground ※ 0V and 24V markings are for DC24V only.

◆ Order Code
