KGCP Resistance Type Grease Electric Lubricator

※ Please select the specifications you need.：
*Model
*Effective Capacity
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of KGC and KGCP are controlled by PLC.
KGC and KGCP have pressure gauges that enables the users to check the operating pressure easily.
1φ110V, 1φ220V, and DC24V models have feed-grease buttons, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
1φ110V and 1φ220V models have thermal controls that will shut down the motors for about 5 minutes when the motors are overheated.
A 60kgf/cm² socket pressure switch can be added to KGC and KGCP on request to detect the operating pressure automatically.
A magnetic level switch can be added to KGC and KGCP on request to detect the grease level automatically.
For KGC and KGCP-50, refill grease from the grease inlet to prevent air and impurities from entering the grease tank.
KGCP-07 works with a 700cc disposable grease cartridge. When the grease is empty, replace KGCP-07 with a new grease cartridge. Standard KGCP-07 does not include a grease cartridge but is available upon request.

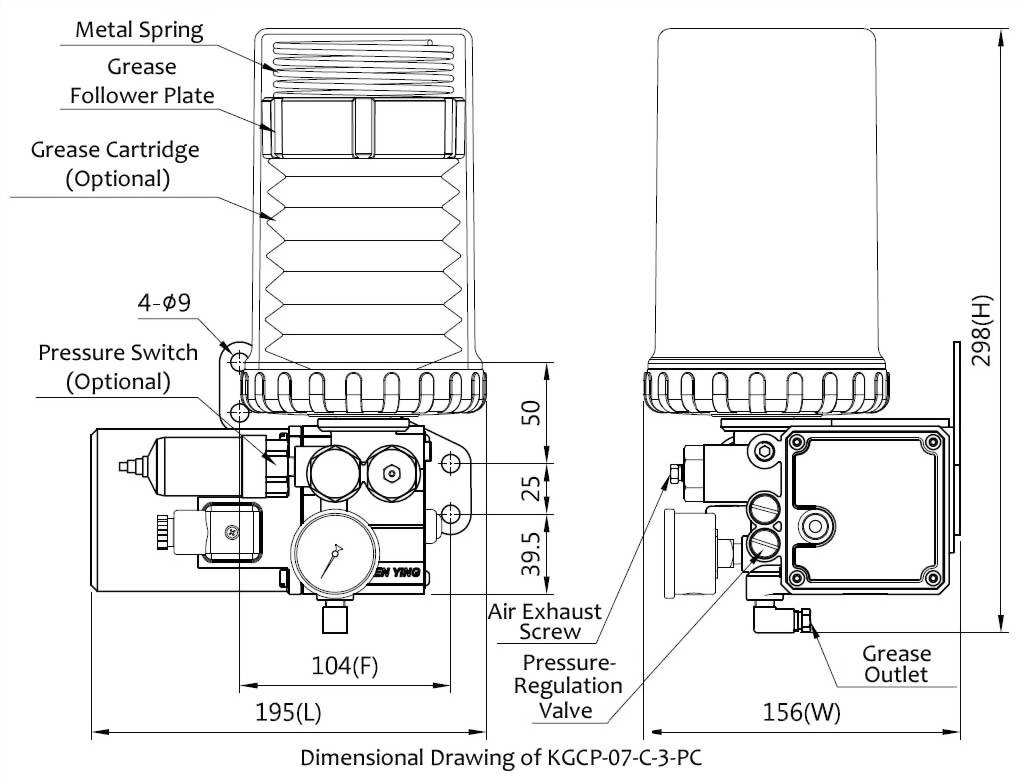

◆ Dimensional Data

◆ Technical Data

Voltage	1Ø110V	1Ø220V	DC24V
Motor Output	60W	80W	60W
Ampere	1.80A	1.00A	1.65A
Feed-Grease Button	O	O	O
Motor Thermal Control	O	O	X
Hertz	50/60Hz Compatible		--
Max. Discharge Volume	30cc/min		35cc/min
Max. Operating Pressure	100kgf/c㎡
Discharge Bore	Ø6, Ø8, PT1/8
Magnetic Level Switch	Optional (NC or NO Contact)
Pressure Switch	Optional (NC or NO Contact)
Suitable Viscosity	KGCP-50：Grease, NLGI 1, 2 KGCP-07：Grease, NLGI 000-1

◆ Wiring Diagram

M = Motor
DK = Feed-Grease Button
GND = Ground
※0V and 24V markings are for DC24V only.

◆ Order Code

Model	Effective Capacity		Voltage		Discharge Bore		Special Request
KGCP	07		C		3		※
	50	1500cc	A	1Ø110V	1	Ø6	PC	Add a NC Contact Pressure Switch
	07	700cc Grease Cartridge	C	1Ø220V	3	Ø6 W/Pressure Gauge	PO	Add a NO Contact Pressure Switch
			K	DC24V	4	Ø8	RC	Add a NC Contact Magnetic Level Switch
					5	Ø8 W/Pressure Gauge	RO	Add a NO Contact Magnetic Level Switch
					6	PT1/8
					7	PT1/8 W/Pressure Gauge

※Please refer to the 700cc Grease Cartridge catalog if you need to purchase one.

◆ The dimensional and technical data of 700cc Grease Cartridge is as described below

◆ Order Code

Order Code	Grease Type	Grease Viscosity	Minimum Order Quantity Requirement
I01D0021	Mobilux EP023	NLGI 000	--
I01D0012	Mobil EP0	NLGI 0	--
I01D0013	Mobil EP1	NLGI 1	100
I01D0029	Idemitsu Polylex UMF	NLGI 000	6
I01D0030	Idemitsu Eponex IM	NLGI 1	6

◆ Instruction of Replacing 700cc Grease Cartridge

1		Hold the grease cartridge cover tightly and turn it anticlockwise to disassemble it from the grease cartridge cover base .
2		Take the grease cartridge cover out and put it aside.
3		Rotate the used grease cartridge anticlockwise to remove it from the grease cartridge cover base and dispose of it properly.
4		Before replacing a new grease cartridge, lightly squeeze out a little grease in the grease cartridge to prevent air from entering the lubricator.
5		Assemble the new grease cartridge to the grease cartridge cover base by turning it clockwise.
6		Assemble the grease cartridge cover back to the grease cartridge cover base.
7		Rotate the grease cartridge cover clockwise to assemble it with the grease cartridge cover base to complete the replacement of the grease cartridge.
