KGV Resistance Type Fluid Grease Electric Lubricator

1. The operation and interval time of KGV are controlled by PLC.
2. KGV has a pressure-regulating valve that enables the user to adjust the operating pressure.
3. KGV has a feed-grease button, which can be used as manual grease feeding for less than 3 minutes to avoid overloading the motor.
4. A 20kgf/cm² socket pressure switch can be added to KGV on request to detect the operating pressure automatically.
5. A capacitive level switch can be added to KGV on request to detect the grease level automatically.
6. The gear pump of KGV is made of special aluminum alloy and assembled with a 40W induction motor to provide stable output pressure, low operating noise, and long service life.
7. The induction motor has a fan that can reduce the temperature and prolong the service life of KGV.

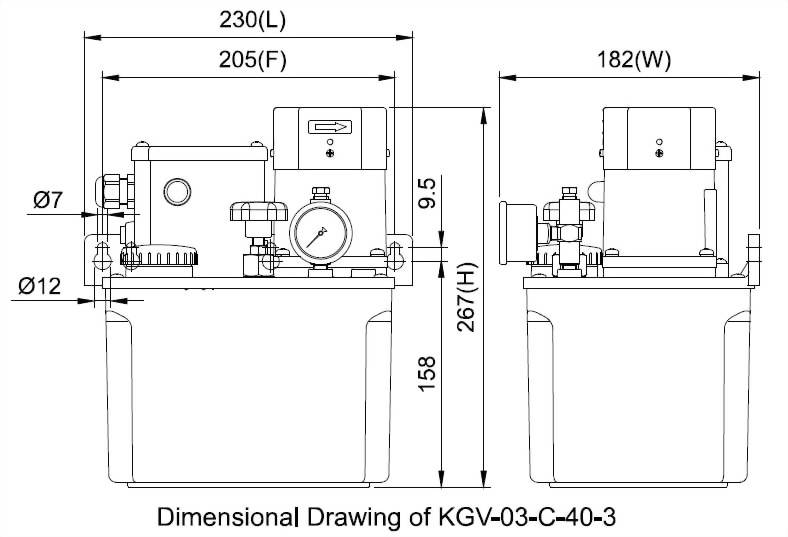

◆ Dimensional Data

◆ Technical Data

◆  Wiring Diagram

Single-Phase Power	Three-Phase Power	BU =  Blue WH   =  White BN    =  Brown M    =  Motor GND ＝Ground DK = Feed-Grease Button DS = Pressure Switch (Available on request) WS = Capacitive Level Switch (PNP,NC, Optional)

※A standard dual-voltage motor is connected for low voltage.Please specify if you need it to be connected for high voltage when placing an order.

◆ Order Code

※NPN, NC/NO contact capacitive level switch is also available on request.
