• KSB-30-180-C-3
  • KSB-40-180-C-3-RC

KSB Resistance Type Grease Electric Lubricator

  • Proportional Grease Quantity
  • Automatic Lubrication Controlled by Timer

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Interval Time
*Voltage
*Discharge Bore
Special Request
Remarks
  1. KSB has a timer that controls its operation and interval time.
  2. KSB has a pressure gauge that enables the user to check the operating pressure easily.
  3. A magnetic level switch can be added to KSB on request to detect the grease level automatically.
  4. Please refill grease from the grease inlet of KSB to prevent air and impurities from entering the grease tank.

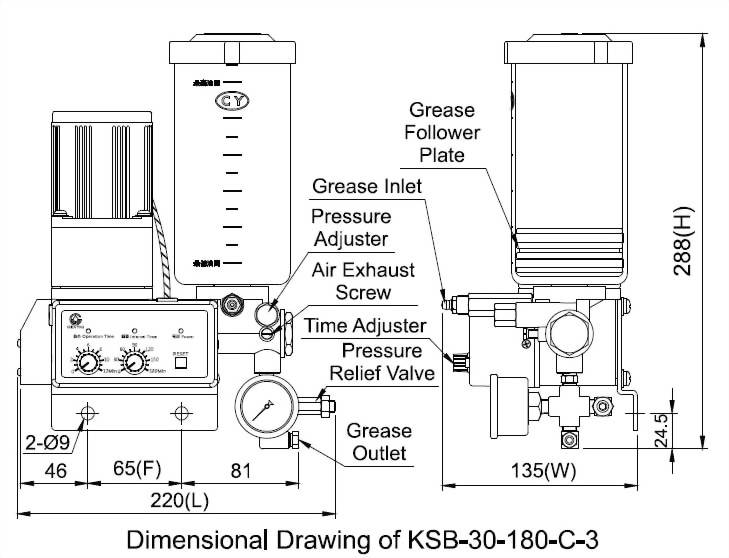

ksb Dimensional Drawing


◆ Dimensional Data

Model Tank Capacity Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
KSB-30 600cc 220 135 288 65 3.70
KSB-35 1000cc 220 161 301 4.25
KSB-40 800cc 220 135 342 3.73
KSB-50 2000cc 220 161 386 4.82

◆ Technical Data

Operation Time 3 sec. to 12 min.
Interval Time 1-180 min., 1-360 min.
Voltage AC110V AC220V DC24V
Motor Power 15W 15W 20W
Ampere 0.5A 0.2A 0.4A
Hertz 50/60Hz Compatible --
Max. Discharge Volume 15cc/min
Max. Operating Pressure 150kgf/c㎡
Discharge Bore Ø4, Ø6, Ø8, PT1/8
Magnetic Level Switch Optional (NC or NO Contact)
Suitable Viscosity Grease, NLGI 000-0


◆ Wiring Diagram

AC110V, AC220V DC24V
M =  Motor
ksb-AC110V-AC220V Wiring Diagram
 ksb-DC24V Wiring Diagram


◆ Order Code

Model Tank Capacity (Material) Interval Time Voltage Discharge Bore Special Request
KSB 30 180 C 3 ※
30 600cc 180 180min. A AC110V 0 Ø4 RC Add a NC Contact Magnetic Level Switch
35 1000cc 360 360min. C AC220V 1 Ø6 RO Add a NO Contact Magnetic Level Switch
40 800cc K DC24V 2 Ø4 W/Pressure Gauge
50 2000cc 3 Ø6 W/Pressure Gauge
4 Ø8
5 Ø8 W/Pressure Gauge
6 PT1/8
7 PT1/8 W/Pressure Gauge
