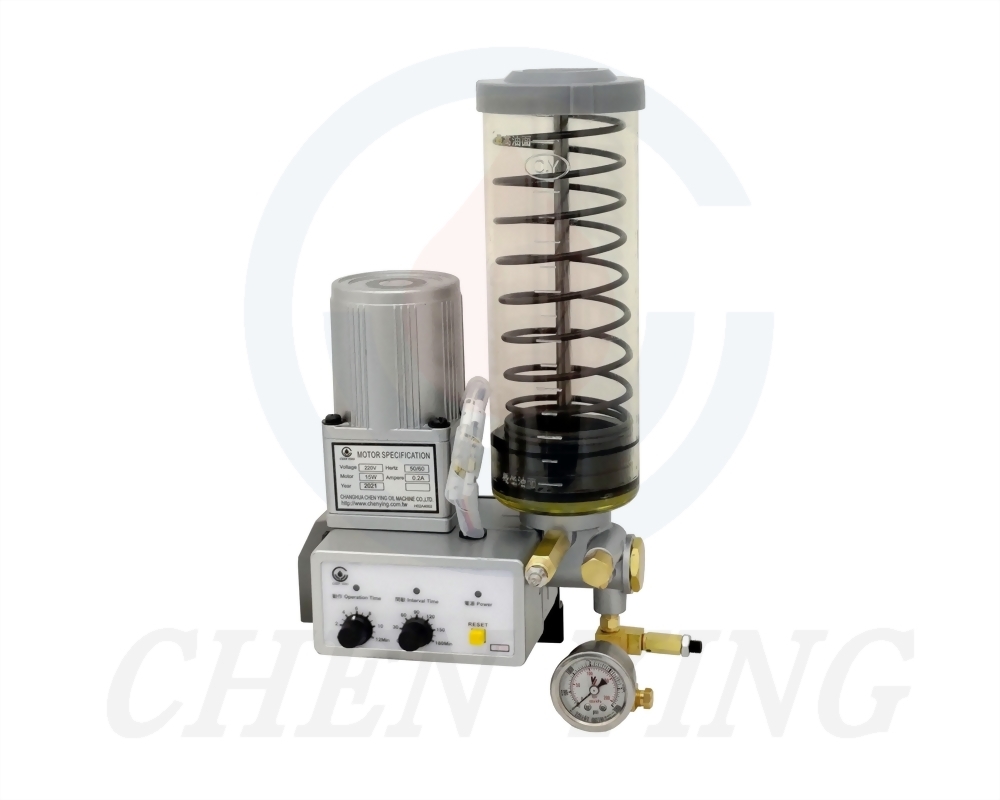

KSBP Resistance Type Grease Electric Lubricator with Metal Spring
- Proportional Grease Quantity
-
Automatic Lubrication Controlled by Timer
- KSBP has a timer that controls its operation and interval time.
- KSBP has a pressure gauge that enables the user to check the operating pressure easily.
- KSBP has a metal spring inside its grease tank, enabling it to work with thicker grease of the viscosity NLGI 1 and NLGI 2.
- A magnetic level switch can be added to KSBP on request to detect the grease level automatically.
- Please refill grease from the grease inlet of KSBP to prevent air and impurities from entering the grease tank.

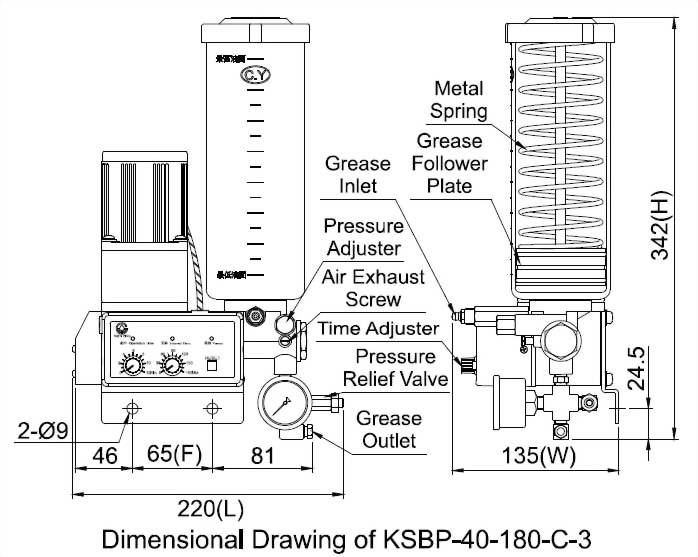

◆ Dimensional Data
Model
Effective
Capacity
Length (mm)
Width (mm)
Height (mm)
Fixed Hole
Distance (mm)
N.W. (kg)
KSBP-40
550cc
220
135
342
65
4.10
KSBP-50
1500cc
220
161
386
5.47
◆ Technical Data
Operation
Time
3 sec. to 12 min.
Interval Time
1-180 min., 1-360 min.
Voltage
AC110V
AC220V
DC24V
Motor Power
15W
15W
20W
Ampere
0.5A
0.2A
0.4A
Hertz
50/60Hz Compatible
--
Max.
Discharge Volume
15cc/min
Max. Operating Pressure
150kgf/c㎡
Discharge Bore
Ø4, Ø6, Ø8, PT1/8
Magnetic Level Switch
Optional (NC or NO Contact)
Suitable Viscosity
Grease,
NLGI 1, 2
◆ Wiring Diagram
| AC110V, AC220V | DC24V |
M = Motor |
 |
 |
|
◆ Order Code
Model
Effective Capacity
Interval
Time
Voltage
Discharge Bore
Special Request
KSBP
40
180
C
3
※
40
550cc
180
180min.
A
AC110V
0
Ø4
RC
Add a NC Contact
Magnetic Level Switch
50
1500cc
360
360min.
C
AC220V
1
Ø6
RO
Add a NO Contact
Magnetic Level Switch
K
DC24V
2
Ø4 W/Pressure Gauge
3
Ø6 W/Pressure Gauge
4
Ø8
5
Ø8 W/Pressure Gauge
6
PT1/8
7
PT1/8 W/Pressure
Gauge
