• KSCP-40-C-3

KSCP Resistance Type Grease Electric Lubricator with Metal Spring

  • Proportional Grease Quantity
  • Automatic Lubrication Controlled by PLC

※ Please select the specifications you need.：

*Model
*Effective Capacity
*Voltage
*Discharge Bore
Special Request
Remarks
  1. The operation and interval time of KSCP are controlled by PLC.
  2. KSCP has a pressure gauge that enables the user to check the operating pressure easily.
  3. KSCP has a metal spring inside its grease tank, enabling it to work with thicker grease of the viscosity NLGI 1 and NLGI 2.
  4. A magnetic level switch can be added to KSCP on request to detect the grease level automatically.
  5. Please refill grease from the grease inlet of KSCP to prevent air and impurities from entering the grease tank.

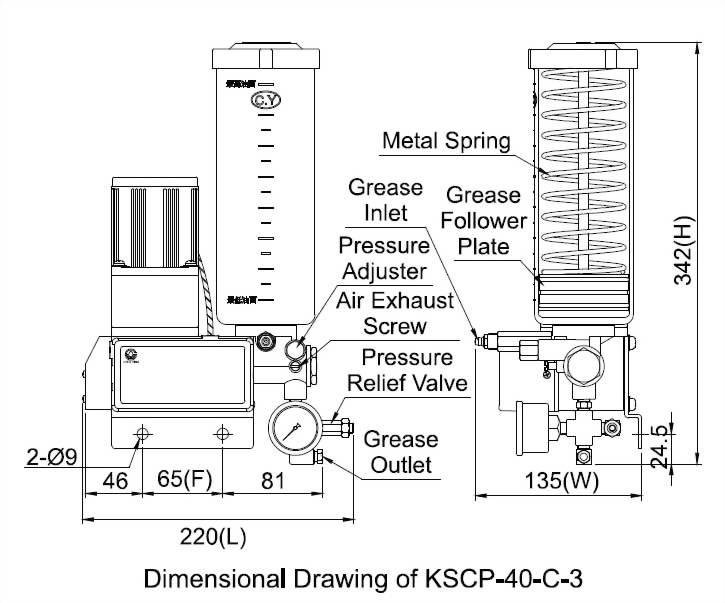

kscp Dimensional Drawing

◆ Dimensional Data

Model Effective Capacity Length (mm) Width (mm) Height (mm) Fixed Hole Distance (mm) N.W. (kg)
KSCP-40 550cc 220 135 342 65 4.33
KSCP-50 1500cc 220 161 386 5.55

◆ Technical Data

Voltage AC110V AC220V DC24V
Motor Power 15W 15W 20W
Ampere 0.5A 0.2A 0.4A
Hertz 50/60Hz Compatible --
Max. Discharge Volume 15cc/min
Max. Operating Pressure 150kgf/c㎡
Discharge Bore Ø4, Ø6, Ø8, PT1/8
Magnetic Level Switch Optional (NC or NO Contact)
Suitable Viscosity Grease, NLGI 000-0

◆ Wiring Diagram

AC110V, AC220V DC24V M =  Motor
ksc-AC110V-AC220V Wiring Diagram width=
 ksc-DC24V Wiring Diagram width=



◆ Order Code

Model Effective Capacity Voltage Discharge Bore Special Request
KSCP 40 C 3 ※
40 550cc A AC110V 0 Ø4 RC Add a NC Contact Magnetic Level Switch
50 1500cc C AC220V 1 Ø6 RO Add a NO Contact Magnetic Level Switch
K DC24V 2 Ø4 W/Pressure Gauge
3 Ø6 W/Pressure Gauge
4 Ø8
5 Ø8 W/Pressure Gauge
6 PT1/8
7 PT1/8 W/Pressure Gauge
